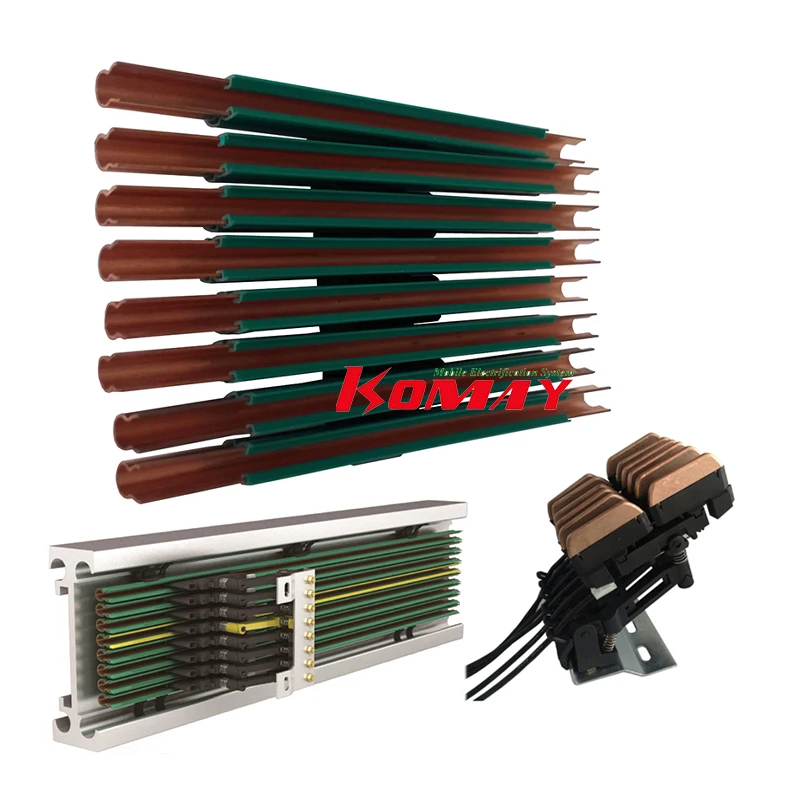

KOMAY U type series 100A insulated safe copper aluminum conductor busbar system

  • Product Details
  • Related products
  • Inquiry
Product Details

KOMAY


The U type series 100A insulated safe KOMAY copper aluminum conductor busbar system is a top-notch item that delivers a safe and dependable solution for electrical energy transmission. This busbar system is made to provide superior performance and security in a concise and package easy-to-install. It is ideal for found in many different settings, including domestic, commercial, and applications being industrial.


If you're trying to find a durable and busbar efficient, KOMAY is a brand name name that one could trust. with several years of industry experience and a consignment to quality, KOMAY has built it self being a provider leading of products and services.


The KOMAY U type series 100A insulated safe copper aluminum conductor busbar system is made to final. It features top-quality materials and a design robust resists damage. The product's copper and aluminum conductors confirm efficient and stable transmission of electrical energy, along with the insulation layer provides security added security.


One of the many great things about the KOMAY U type series 100A insulated safe copper aluminum conductor busbar system is its simplicity of installation. The lightweight and design lightweight it an easy task to install the device in almost any orientation in tight areas. The pre-fabricated elements result additionally the installation procedure quicker and easier, reducing installation some time expenses.


Security is a problem top additionally the KOMAY U type series 100A insulated safe copper aluminum conductor busbar system is made being mindful of this. The insulation layer provides security against surprise and can withstand conditions harsh are ecological. The unit comes with many securities different which will make it ideal for used in high-risk surroundings.


Products Description
For light cranes and hoists/elevators, self-propelled monorail carriers, automated storage and retrieval systems, assembly and test tracks, motor powered gates and doors, for all kinds of data and signal transmission, etc. The assembly line Conductor Rail is widely used in light crane, lift 1 elevator, automatic monorail trolley, automatic storage systems and the revolving stage, test 1 production lines, gantry crane, can be used for various types data and signal transmission, etc.

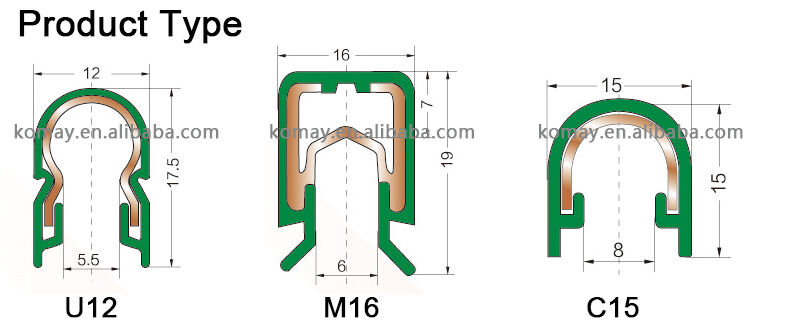

KOMAY’s assembly line Conductor Rail includes U12, M16, C15, W15, W19 series, W19 series can be used mobile power supply devices with large ampacity.
Approved  and listed by: CCC, CE and IS9001.

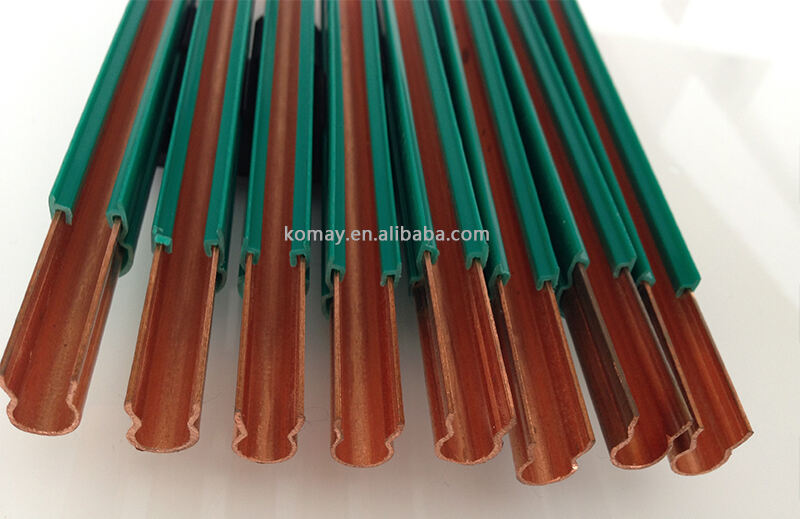

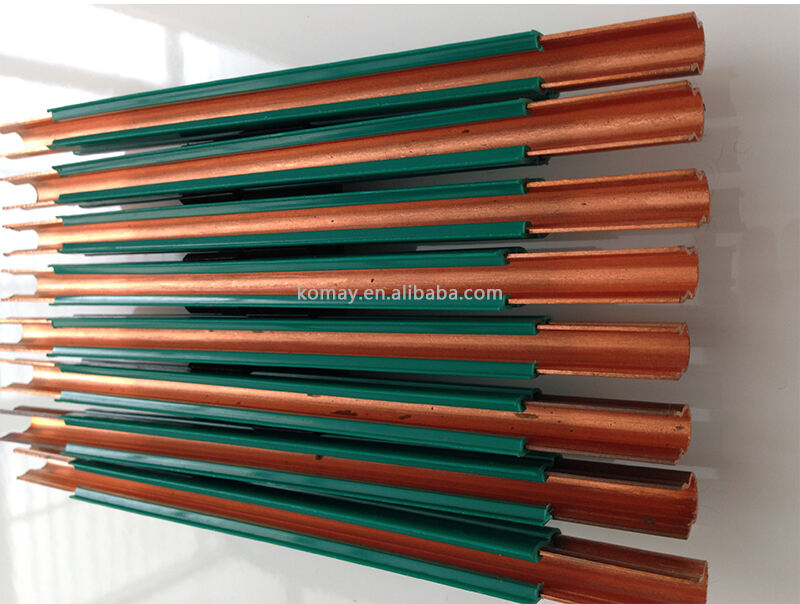

Product Name U type insulated conductor busbar system
Conductive Material Copper

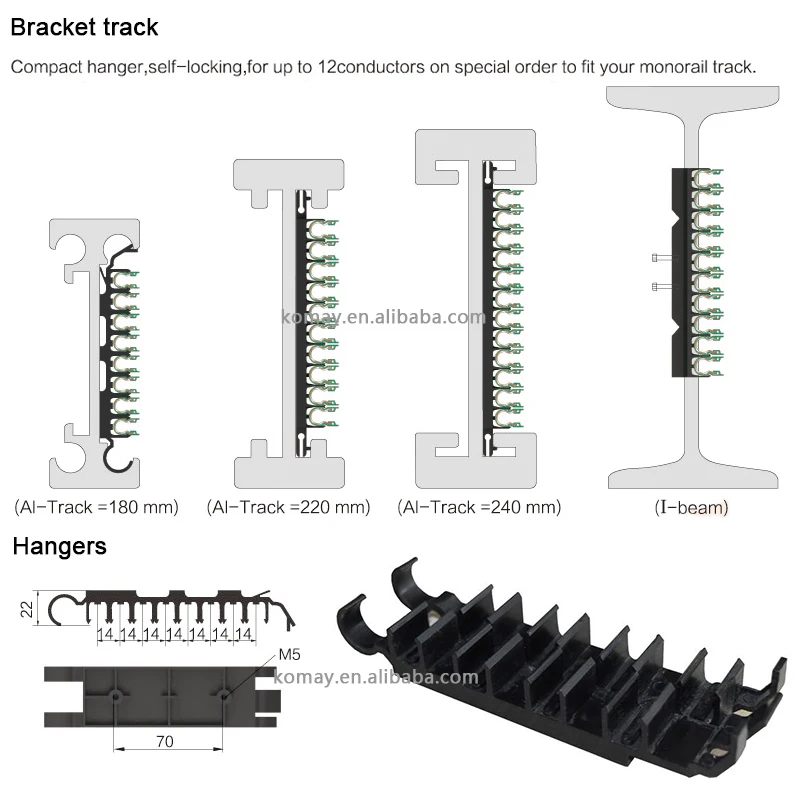

Conducor Spacing on compact hangers 14mm or variable
Length Standard rail sections are 6m long, shorter sections are available
Support Spacing for straight runs 0.6m, for curves 0.3m
Conductor Rail Type Cross Sectional Area Leakage Distanc of Covers Max. Voltage Continuous Ampere Capacity Resistance
U12/25C 25 30 600 100 0.745
U12/25F 25 30 600 40 5.415
U12/25E 25 30 600 10 31.56

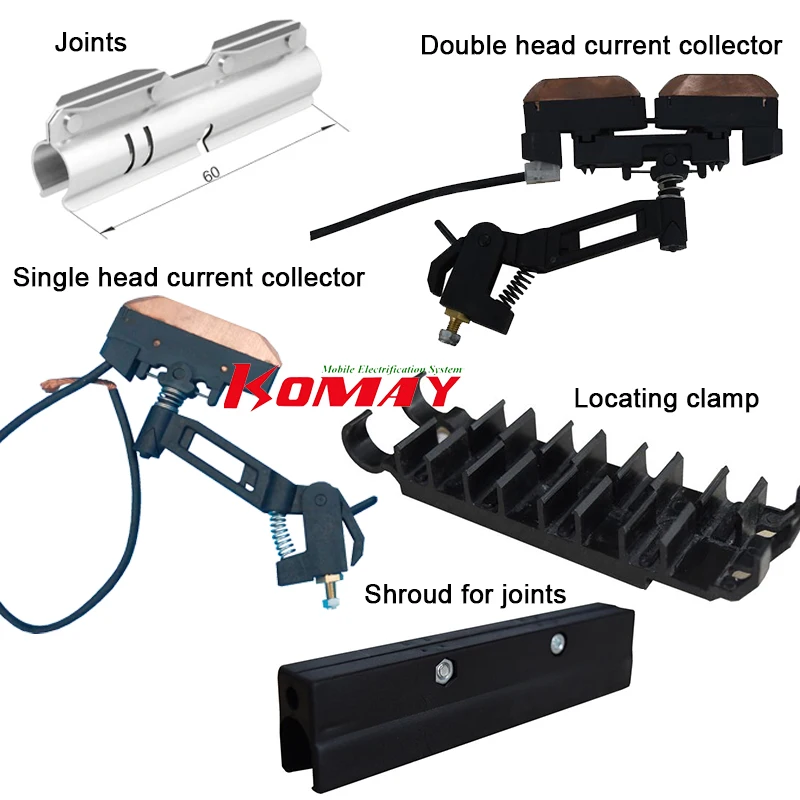

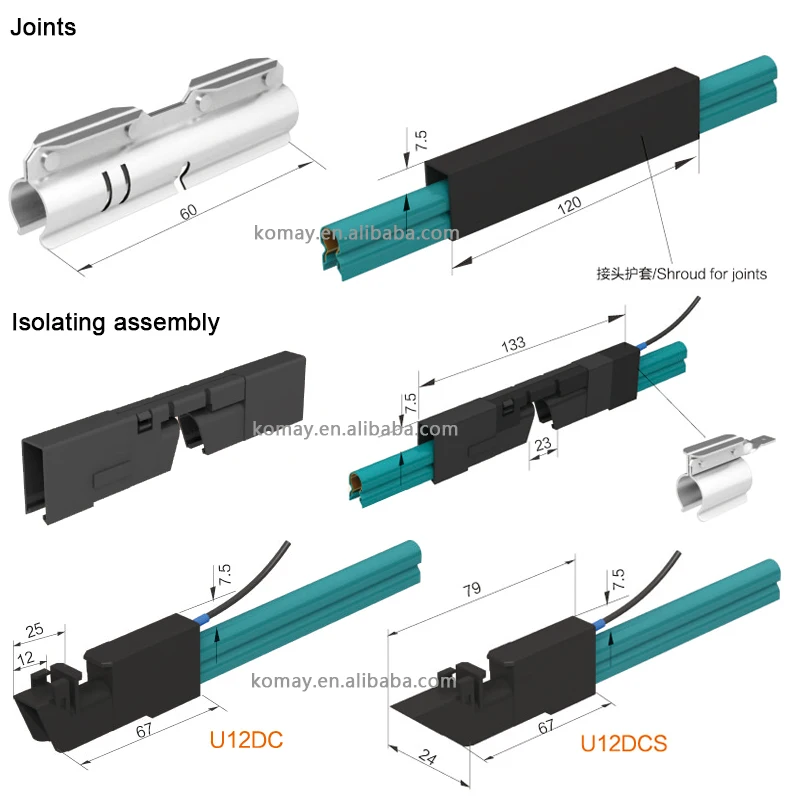

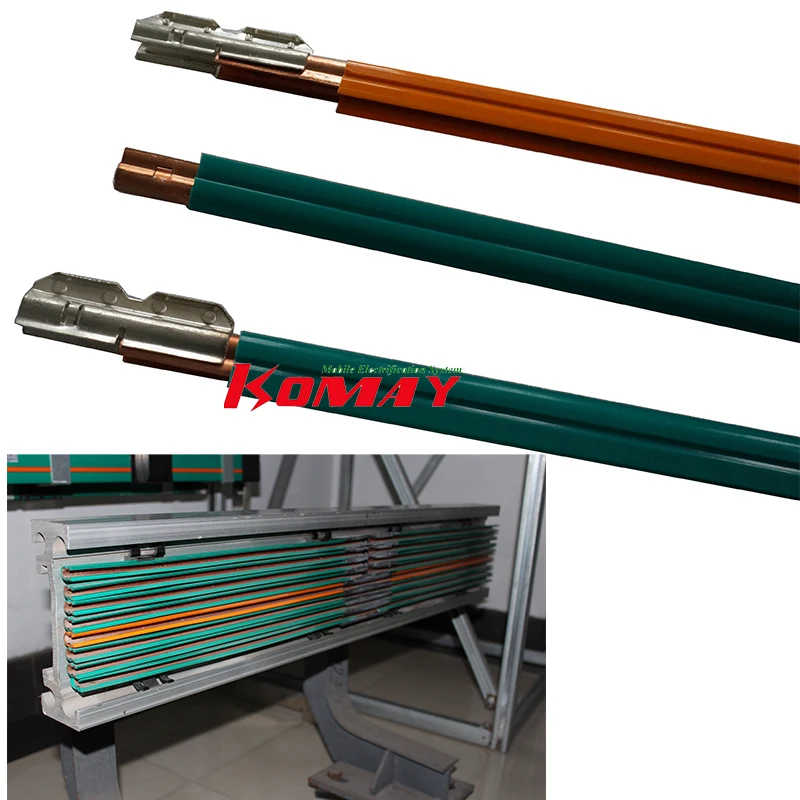

Related Accessories

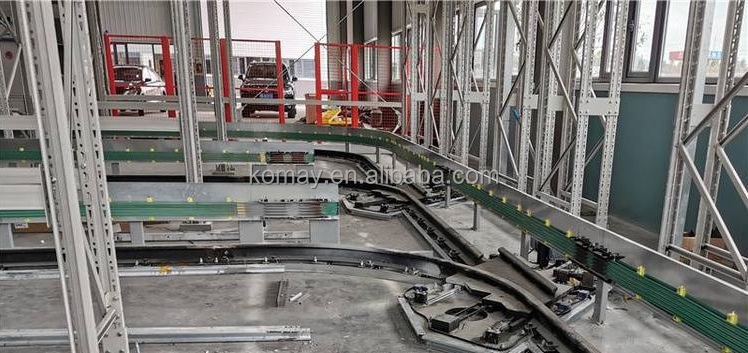

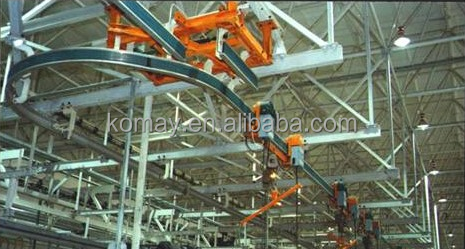

Application

Company Profile

WUXI KOMAY ELECTRIC EQUIPMENT CO., LTD. is a professional high and new tech enterprises in mobile electrification system field. Our major products are Single Pole Insulated Conductor Rails, Enclosed Conductor Rails, Copperhead Conductor Rails, Safety Power Rails, Multipolar Busbar, Busway Systems, Cable Trolleys, Cable Chains, ED Thruster, Electro-Hydraulic Drum Brake and more. The essential features of products are Compact arrangement, corrosion resistance, and simple assembly. The products is suitable especially for overhead and elongated tracks for cranes, monorails, port machines, stacking systems, as well as many other applications for supplying power to moving power loads. Our Products are certified by CE and export to Europe, America, Middle East, Africa, Southeast Asia etc. other country and area. Competitive price and High quality - All mobile electrification systems for you, We are sincerely looking forward to cooperating with you!

Packaging
