Product Details

Products Description

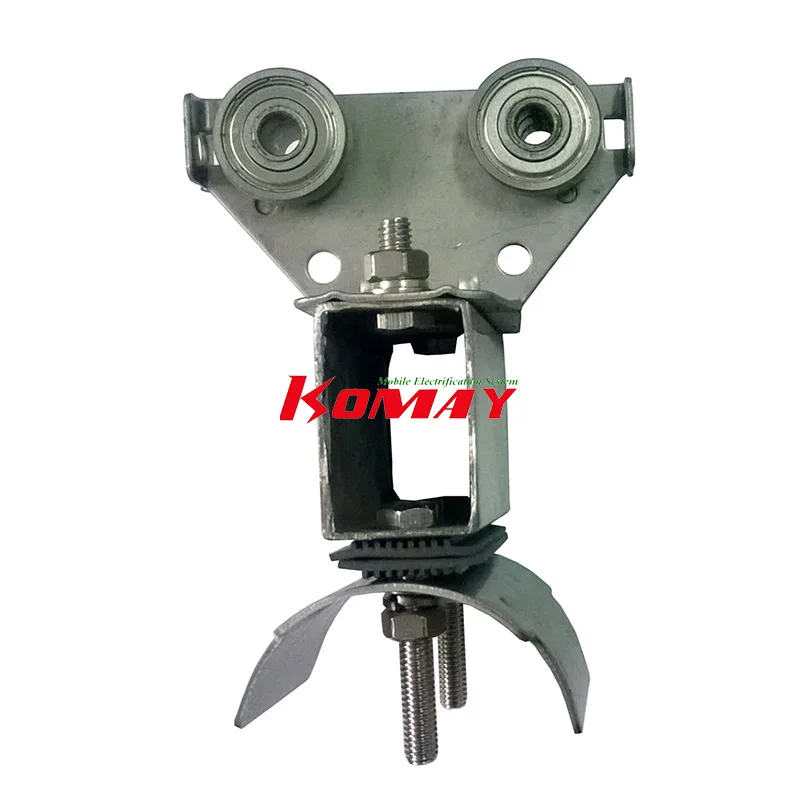

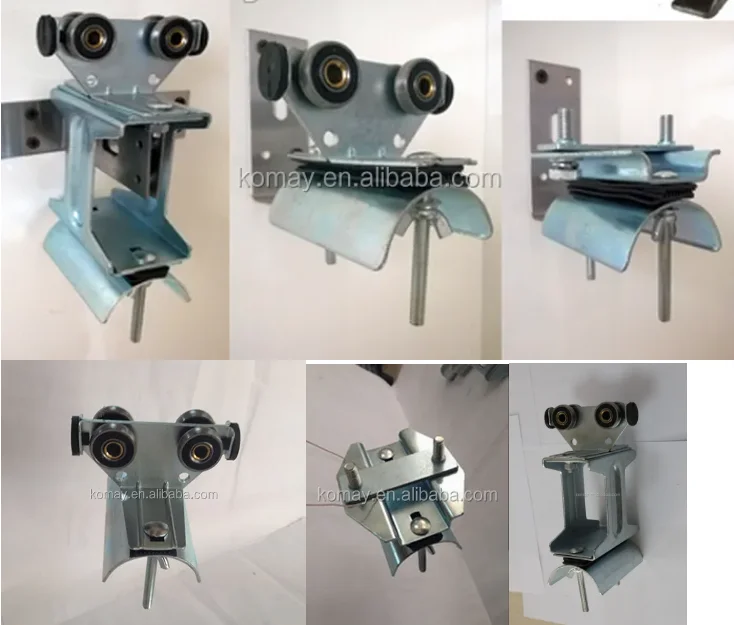

Komay C-track Cable Trolley System Cable Festoon System Cable Trolley is a conductive form of power supply for the crane trolley. It consists of a walking wheel, a bracket and a supporting plate. The flexible cable is fixed on the supporting plate. The traction frame and the I-steel cable pulley are synchronized to achieve the purpose of cable power trolley. Cable trolley is also called cable block, cable pulley, cable rail trolley, cable block trolley, I-beam cable block, I-beam trolley, cable conductive trolley.

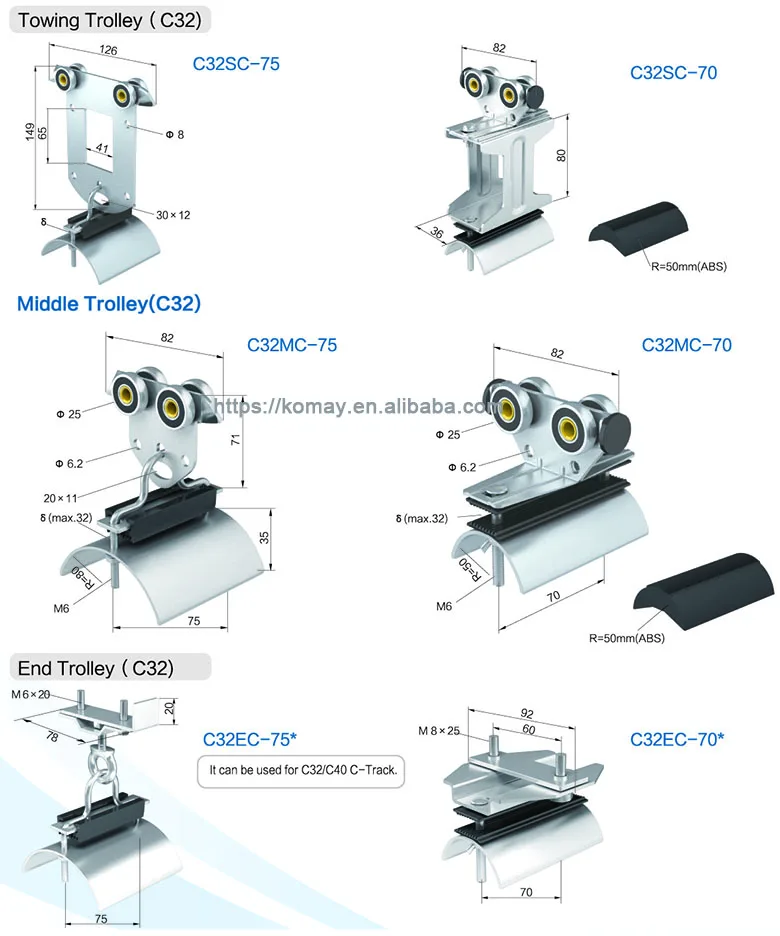

Name	Towing Trolley		Middle Trolley		End Trolley
Type	C32SC-75	C32SC-70	C32MC-75	C32MC-70	C32EC-75	C32EC-70
Wheels	Ball bearing, hardened, galvanized Temperature: -30°C to +125°C Traveling speed: 160m/min
Material	Body: steel, galvanized Support saddle: steel, galvanized Bumper: neoprence Dowel: Brass Hardware: galvanized Temperature resistance: -30°to +100°(80°, saddle ABS)				Carrier body: steel, galvanized Support saddle: steel, galvanized Dowel: Brass Hardware: galvanized Temperature resistance: -30°to +100°(80°, saddle ABS)
Max. cable load	25kg per carrier	22kg per carrier	30kg per carrier	22kg per carrier	25kg per carrier	22kg per carrier
Dim. of cable(mm)	*75W32**	*70W32**	*75W32**	*70W32**	*75W32**	*70W32**
Weight(kg)	0.59	0.55	0.41	0.32	0.37	0.31
Cat. -NO.	711101	711105	711201	711205	711301

Related Products

Application

Company Profile

WUXI KOMAY ELECTRIC EQUIPMENT CO., LTD. is a professional high and new tech enterprises in mobile electrification system field. Our major products are Single Pole Insulated Conductor Rails, Enclosed Conductor Rails, Copperhead Conductor Rails, Safety Power Rails, Multipolar Busbar, Busway Systems, Cable Trolleys, Cable Chains, ED Thruster, Electro-Hydraulic Drum Brake and more. The essential features of products are Compact arrangement, corrosion resistance, and simple assembly. The products is suitable especially for overhead and elongated tracks for cranes, monorails, port machines, stacking systems, as well as many other applications for supplying power to moving power loads. Our Products are certified by CE and export to Europe, America, Middle East, Africa, Southeast Asia etc. other country and area. Competitive price and High quality - All mobile electrification systems for you, We are sincerely looking forward to cooperating with you!

Packaging

KOMAY

The C32 C Track Crane Cable Trolley Festoon Cable System is the perfect service for lifting hefty tons in commercial setups. Developed towards offer dependable energy command for your crane, guaranteeing soft effective procedures.

Produced coming from first-class galvanized steel is immune towards rust use. Its own form distinct enables cable trolley towards goes efficiently over the track, at higher prices under hefty great deals.

The cable trolley on its own could be produced coming from KOMAY resilient products is developed to assist a selection of cable kinds dimensions. Which implies that you have to utilize this method for the variety broad of requests, coming from light-duty jobs towards durable procedures.

Another essential work of this particular product is the festoon cable system, which materials a risk-free technique reliable send out energy command indicators for your crane. The cable televisions are put on hold with the track are safeguarded along with a durable pattern versatile can easily endure the roughness of continuous utilize.

not difficult towards placed in proceed preserving, due to its own style modular aspects. Which implies you will rapidly just establish change the gadget towards satisfy your distinct requirements, carry out upkeep regimen without any particular understanding or even devices.

Purchase the KOMAY C32 C Track Crane Cable Trolley Festoon Cable System today prepare towards expertise first-class lifting efficiency such as never ever prior to.
