WUXI KOMAY mobile power crane power rail system- High tro reel

The High Tro Reel -crane power rails system are electrical conductors of various profiles that are used to provide electrical potential to moving systems along a path of travel which have 3-6 poles.

The safety power rails are available for current load from 30A up to 200A mobile electrification technology for moving transportation vehicles and equipment. Common application include: manufacturing robots, material handing system, cranes.

Safety power rail systems are available in a variety of configuration depending on applications requirements.

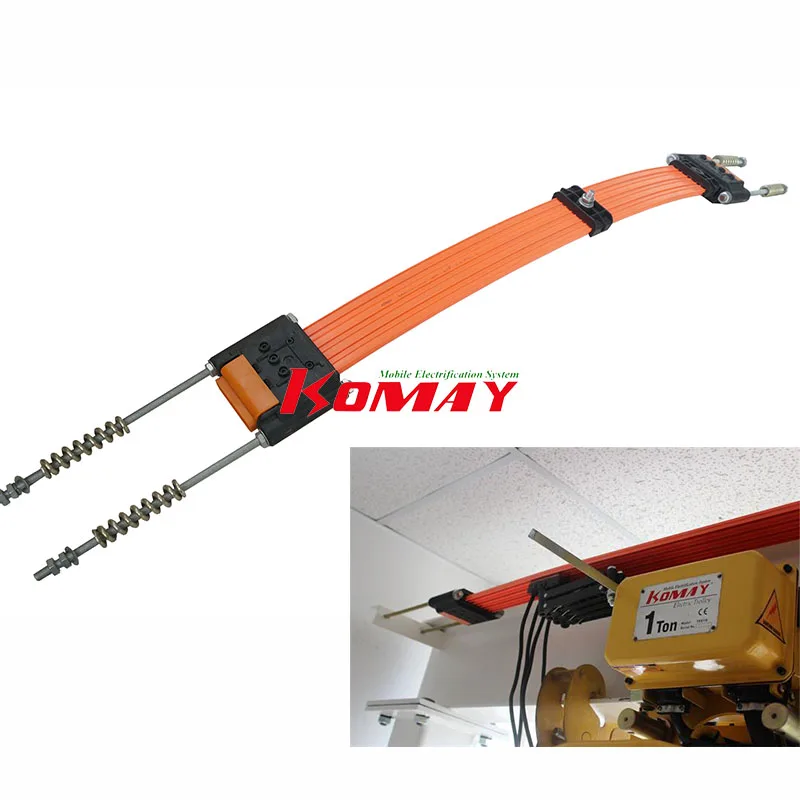

System Photo

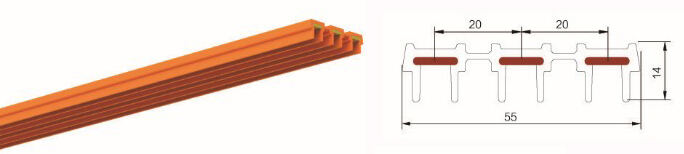

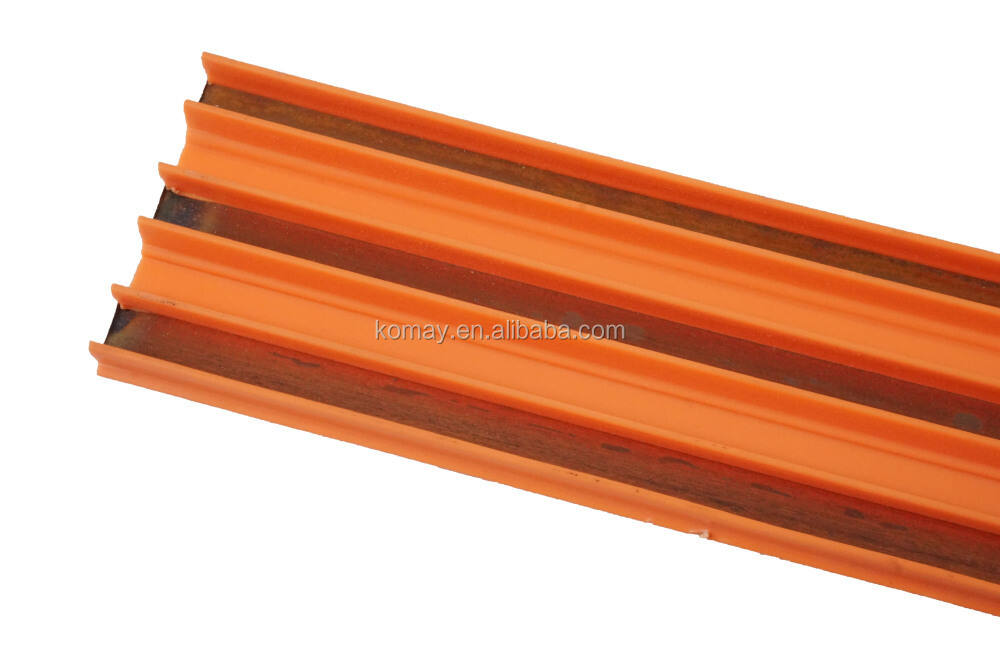

3P mobile devices crane power rail system

3P body.jpg

Type

Poles

Conductor cross section (mm2

Max. current(A)

761003

3

3 x 10 mm2

50A

761503

3

3 x 15 mm2

80A

762003

3

3 x 20 mm2

100A

762503

3

3 x 25 mm2

120A

763503

3

3 x 35 mm2

140A

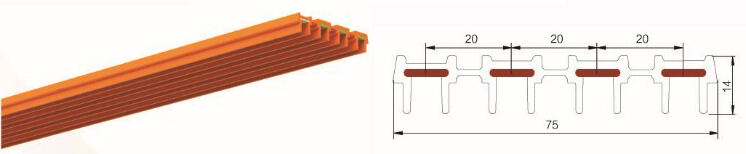

4P mobile devices safety power rail system

4P body.jpg



Type Poles Conductor cross section(mm²)  Max. current(A)
761004 4 4 × 10 mm² 50A
761504 4 3 × 15mm² +1 × 10 mm² 80A
762004 4 3 × 20mm² +1 × 10 mm² 100A
762504 4 3 × 25mm² +1 × 12.5 mm² 120A
763504 4 3 × 35mm² +1 × 15 mm² 140A

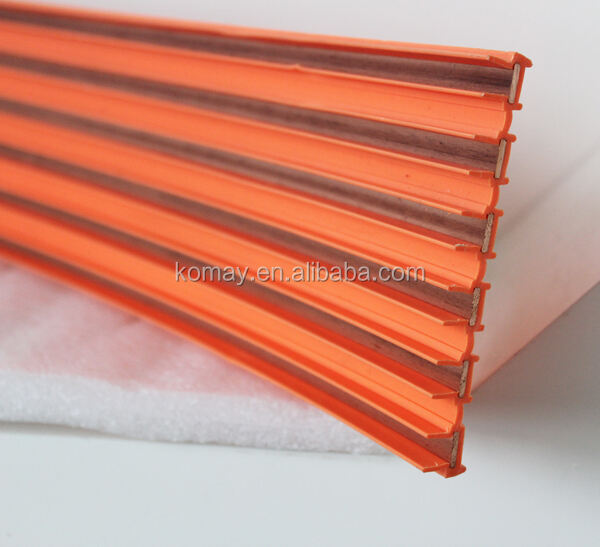

6P mobile device safety power rail system

6P body.jpg



Type

Poles

Conductor cross section (mm2)



Max. current(A)



761006

6

6 x 10 mm2

50A

761506

6

6 x 15 mm2

80A

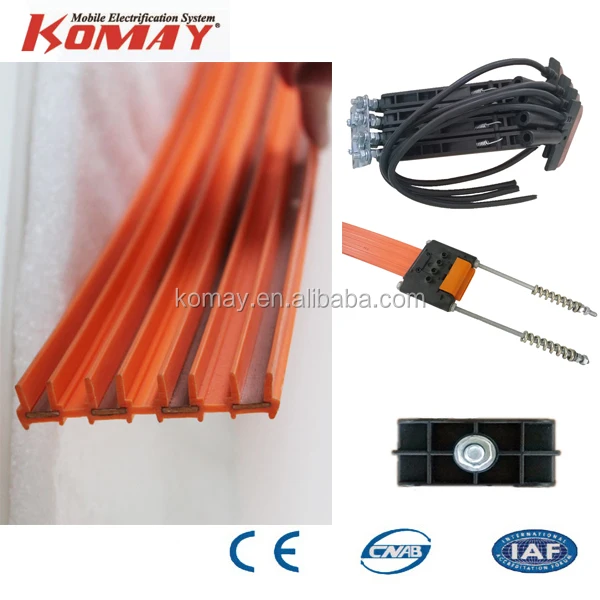

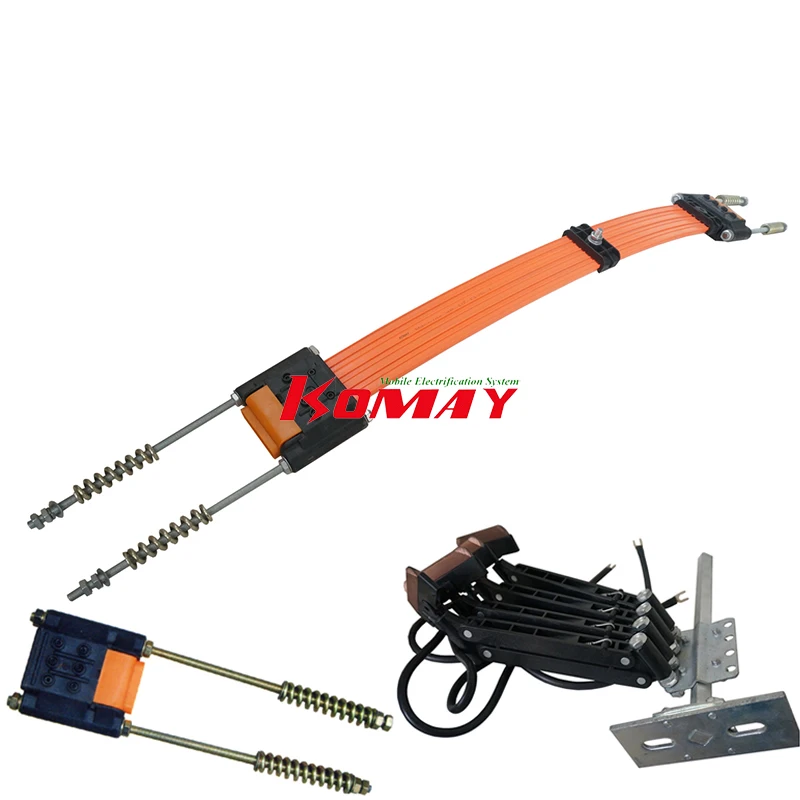

Accessories

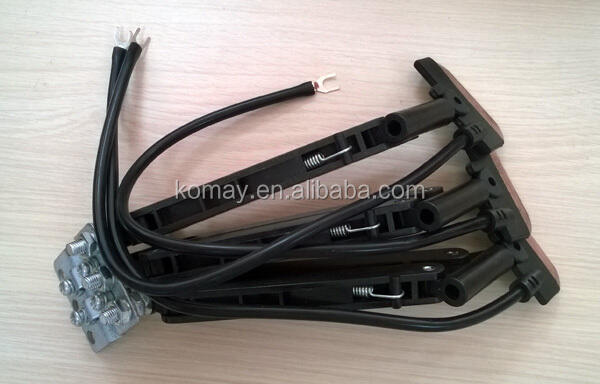

3P current collector.jpg

.jpg

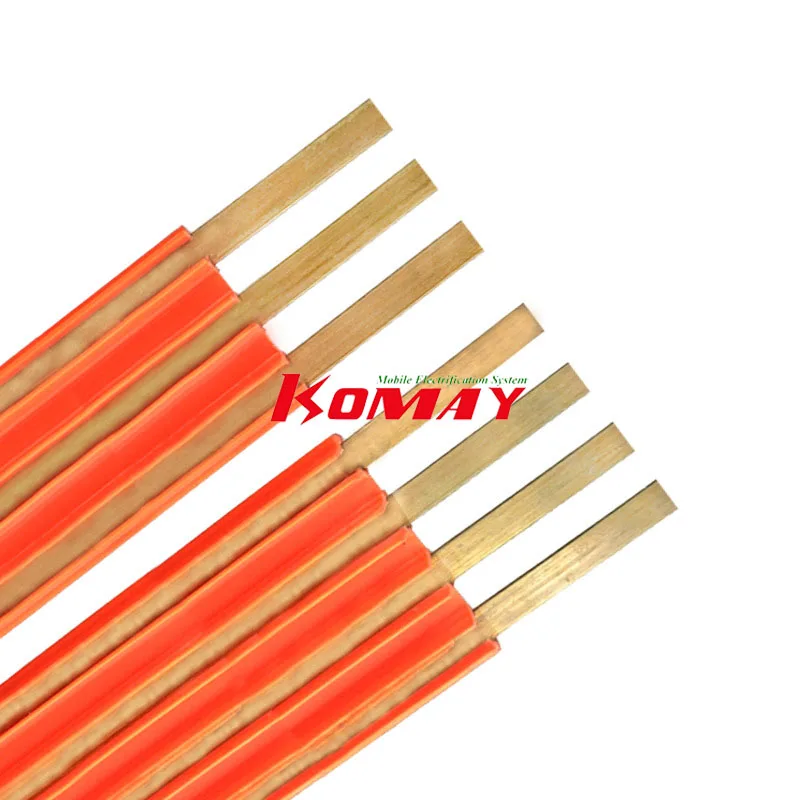

Detailed picture

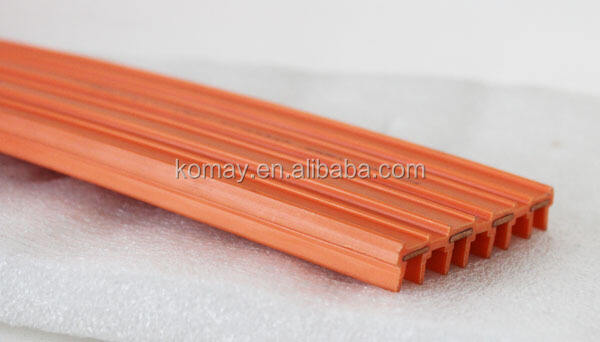

 3P safety power rails


4P safety power rails


6P safety power rails

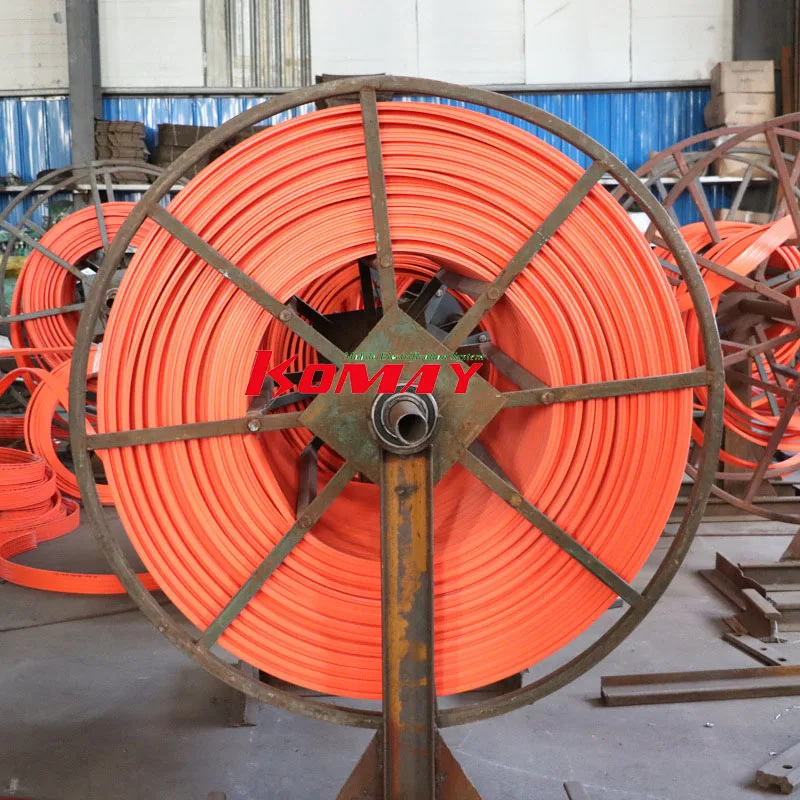

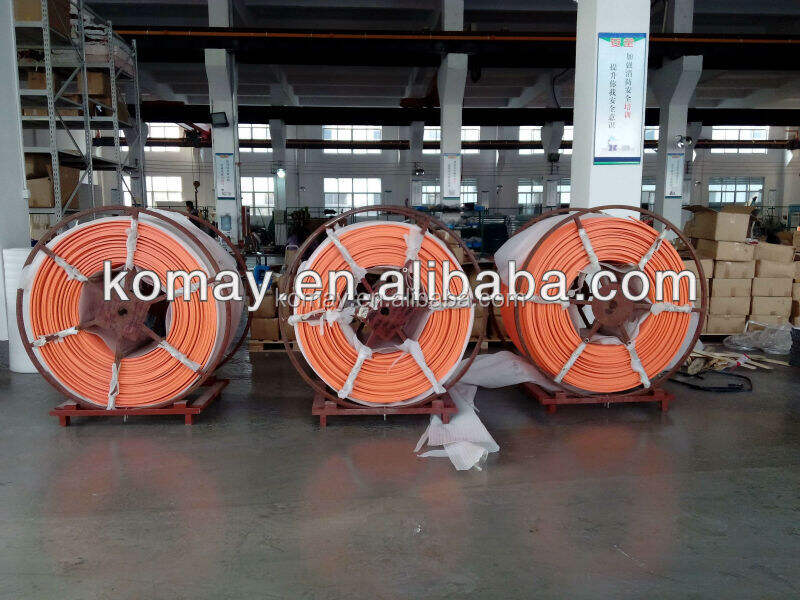

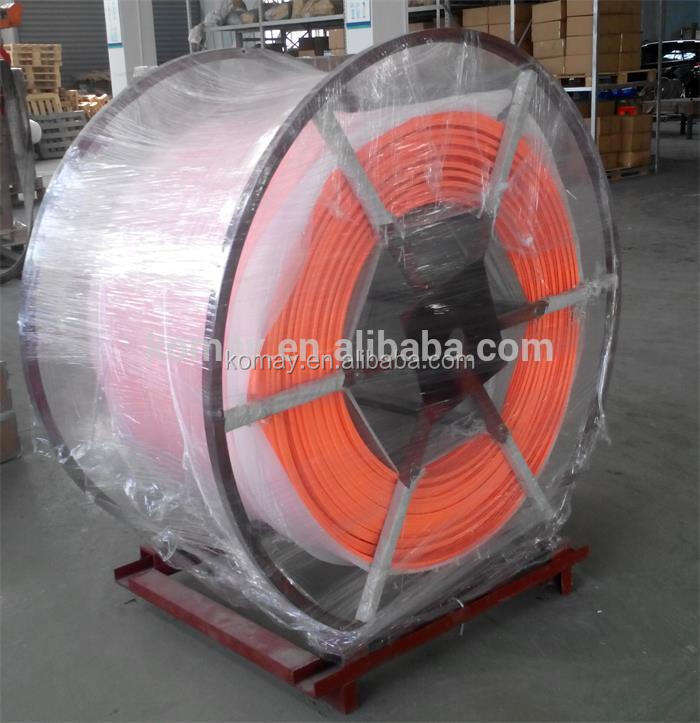

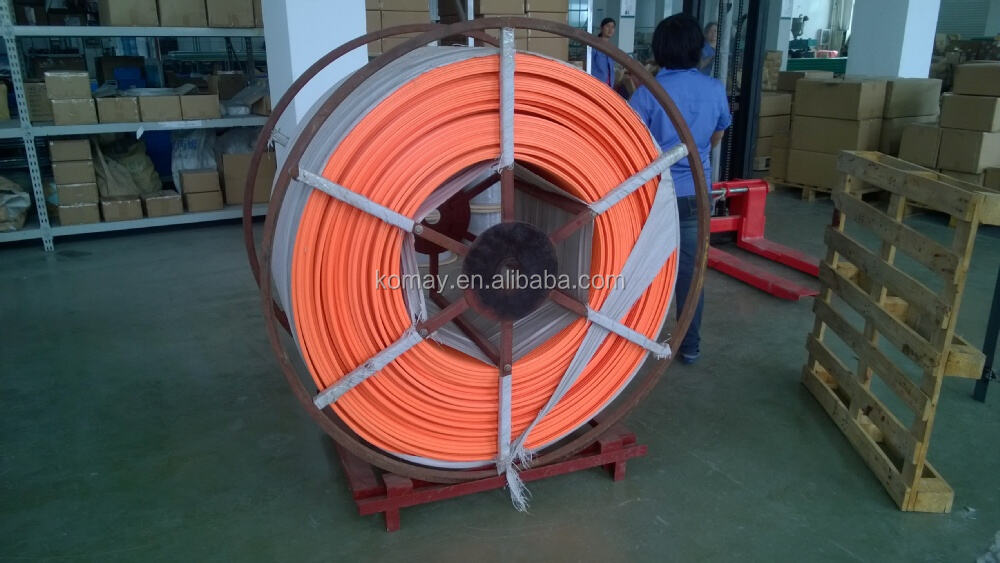

Packaging & Shipping










The KOMAY safety mobile power crane power rail system high tro reel is a game-changers in the crane and hoist industry. This reliable and sturdy product guarantees that your crane and hoist systems are powered safely and efficiently. The KOMAY safety mobile powers crane power rail system high tro reels was designed to provide a quick and easy power distributions solution for cranes and hoists.


Made to withstand harsh environments that are commercial are common in construction and production sites. KOMAY power crane energy rail system tro is high is ideal for just about any crane or hoist, stationary or mobile. It's made of high-quality materials that can withstand perhaps the weather conditions which are toughest.


Safety is a priority is to working with cranes and hoists, which can be why the KOMAY safety mobile energy crane energy train system high tro reel was made with safety in mind. This product ensures that the energy reaches your crane or hoist systems safely, reducing accidents brought on by electrical failures or tripping.


Has a modular design, which makes it easy to install, dismantle, and expand? The style is user-friendly minimal upkeep, making it an inexpensive and economical solution for all crane and hoist power requirements. The safety is KOMAY power crane energy rail system high tro reel is made to give a personalized power solution for the specific needs.


Established to make sure optimum productivity and downtime is minimal. The tro is high ensures that the crane and hoist energy demands are met even in remote locations. The ability rail system eliminates the necessity for cables, reducing the possibility of harm, and improves freedom.


The safety is by far a market leader. It is known for its quality is superior, and security. KOMAY is a brand name known for its quality items, exceptional customer service, and innovative solutions. Investing within the safety is KOMAY power crane energy rail system high tro reel is an investment money for hard times. It guarantees productivity is maximum improved safety, and dependability.


The KOMAY safety mobile power crane power rail system high tro reel is an essential tool for any cranes and hoist operator who is committed to safety, productivity, and efficiency. It's easy to install, requires minimal maintenance, and is designed to be flexible enough to meet the specific needs of your operations. The KOMAY safety mobile powers crane power rail system high tro reels is the ultimate solution for all cranes and hoist operators looking to improves efficiency, safety, and productivity while ensuring maximum uptime.
