KOMAY Festoon Cable Systems support conductor cables(flat or round) and hoses (hydraulic and pneumatic applications) for delivering power & control to mobile equipment in a safe, efficient and maintenance free method.

The cable trolleys are well guided inside their C-tracks and protected against humidity, dust and icing.

Travel Speed :＜120m/min

Temperature : -40℃——+125℃

Cable Load :＜120kg

Inquiry

Product Details
Application
Related products
Inquiry

Product Details

Products Description

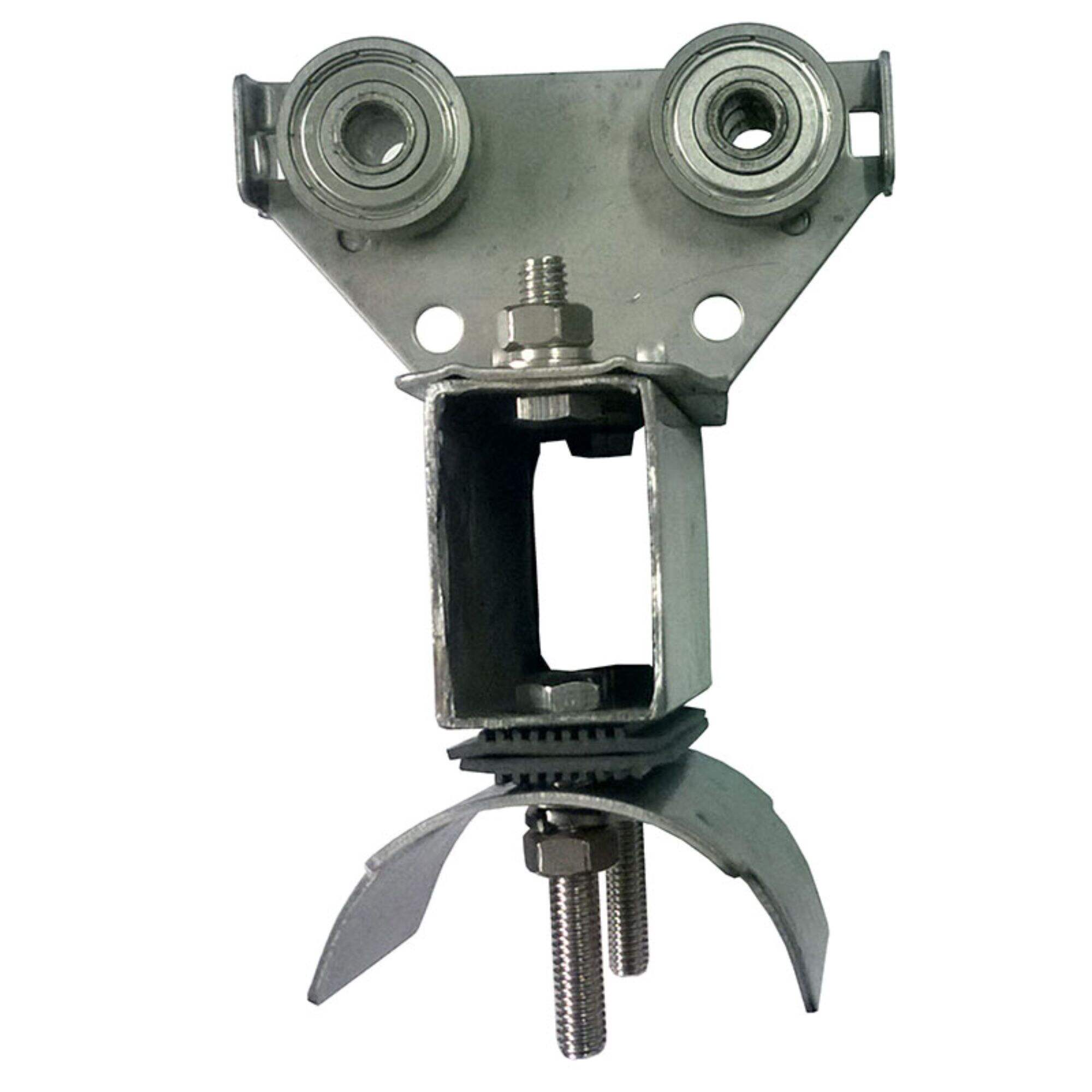

Komay C-track Cable Trolley System Cable Festoon System Cable Trolley is a conductive form of power supply for the crane trolley. It consists of a walking wheel, a bracket and a supporting plate. The flexible cable is fixed on the supporting plate. The traction frame and the I-steel cable pulley are synchronized to achieve the purpose of cable power trolley. Cable trolley is also called cable block, cable pulley, cable rail trolley, cable block trolley, I-beam cable block, I-beam trolley, cable conductive trolley.

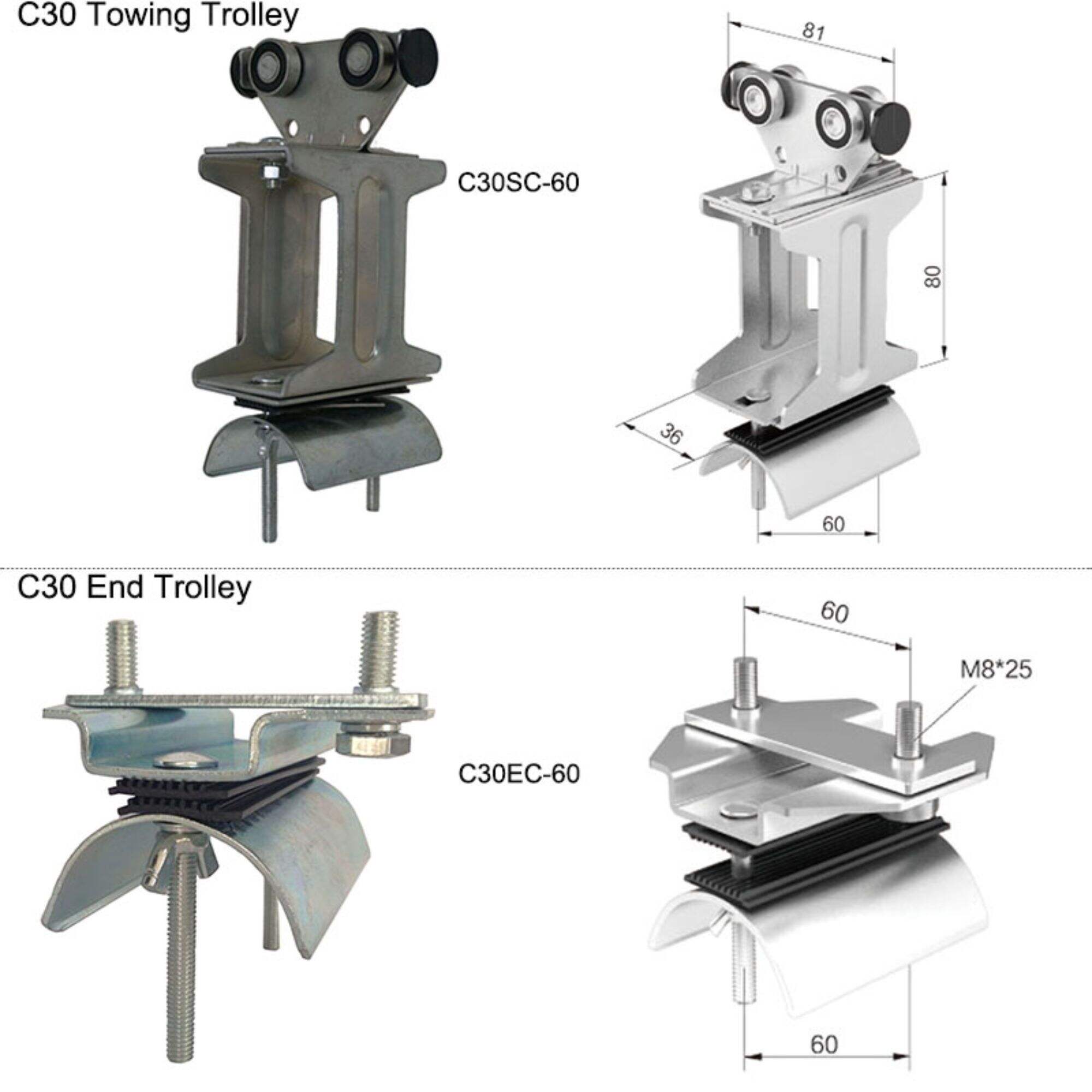

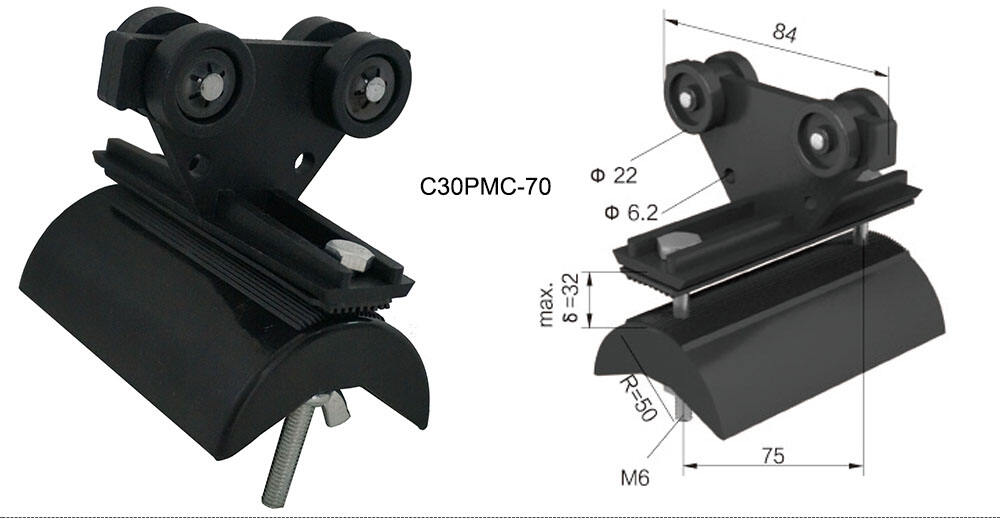

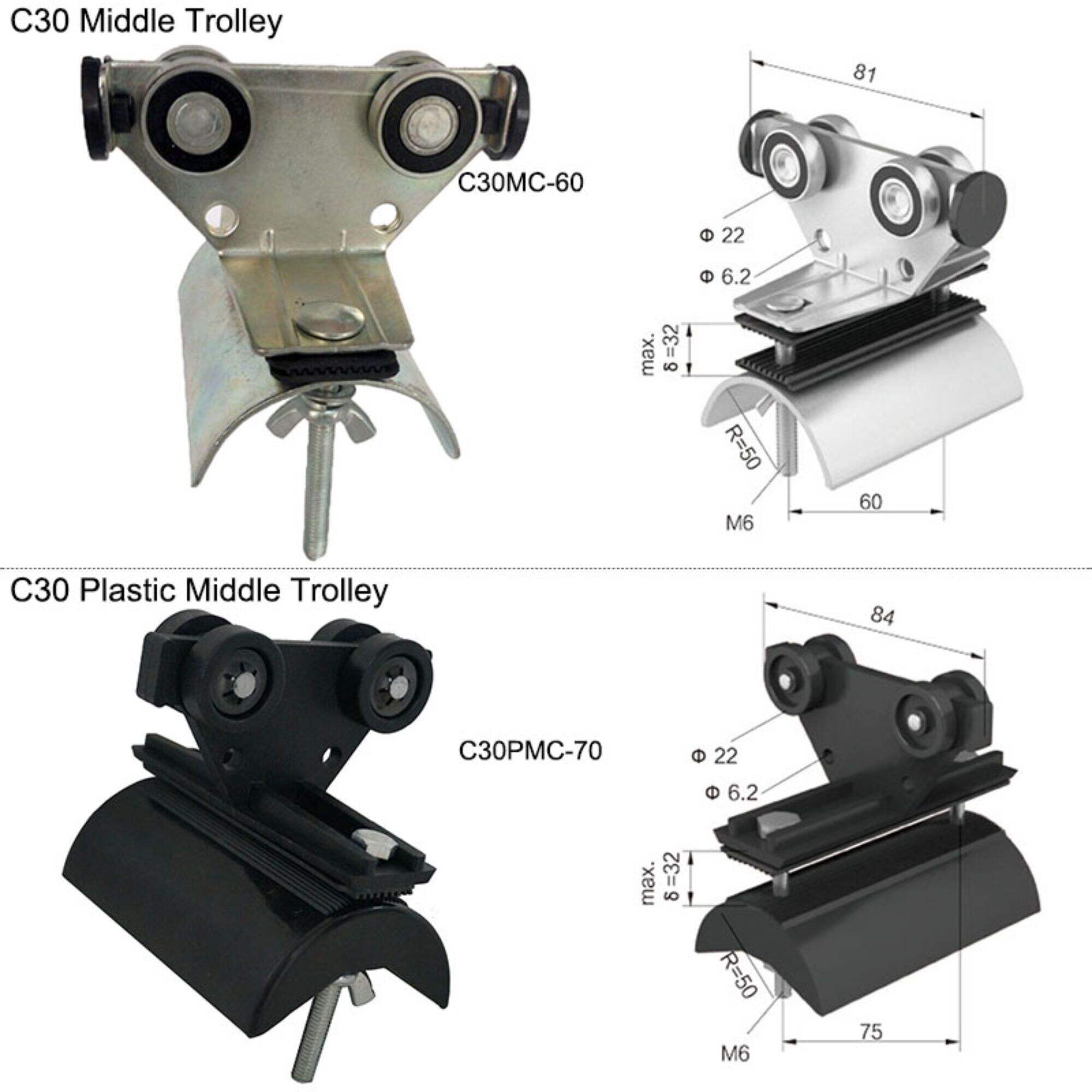

Name	Towing Trolley	Middle Trolley	Plastic Middle Trolley	End Trolley
Type	C30SC-60	C30MC-60	C30PMC-70	C30EC-60
Wheels	Ball bearing, hardened, galvanized Temperature: -30°C to +125°C Traveling speed: 120m/min		Wheel:nylon Temperature: -30°C to +80°C Traveling speed: 120m/min
Material	Body: steel, galvanized Support saddle: steel, galvanized Bumper: neoprence Dowel: steel, galvanized Hardware: galvanized Temperature resistance: -30°to +100°		Body: ABS Support saddle: ABS Bumper: neoprence Dowel: steel, galvanized Hardware: galvanized Temperature resistance: -30°to +80°	Carrier body: steel, galvanized Support saddle: steel, galvanized Dowel: steel, galvanized Hardware: galvanized
Max. Cable Load	20kg per carrier	20kg per carrier	8kg per carrier	20kg per carrier
Dim. of Cable(mm)	Max.60W*32	Max.60W*32	Max.70W*32	Max.60W*32
