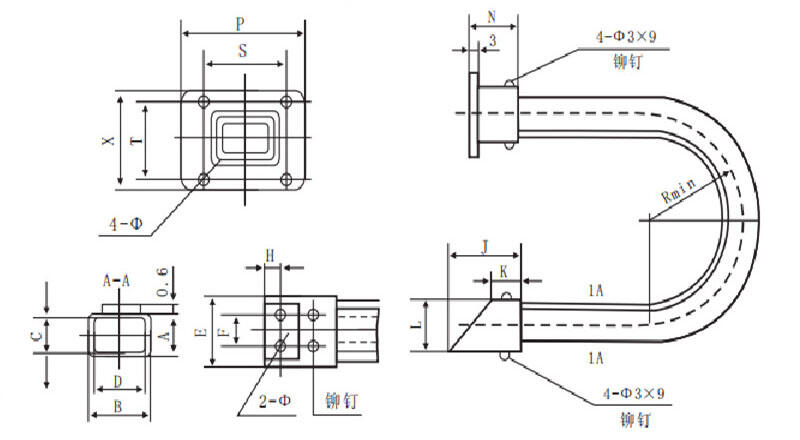

| Internal Diameter A*B | |||||||||
| External Diameter C*D
|
E | F | G | H | Φ | R | Axial Tension KG | Weight(KG/M) | |
| 20*30 | 20*35 | 38 | 18 | 25 | 22 | 5.5 | 60 | 35 | 1.3 |
| 25*50 | 30*55 | 58 | 30 | 35 | 25 | 5.5 | 90 | 40 | 1.75 |
| 35*60 | 40*65 | 69 | 40 | 45 | 25 | 5.5 | 100 | 50 | 2.1 |
| 38*73 | 43*78 | 82 | 50 | 55 | 35 | 6.5 | 110 | 60 | 2.36 |
| 40*80 | 45*85 | 89 | 50 | 65 | 50 | 8.5 | 120 | 70 | 2.5 |
| 52*102 | 57*107 | 113 | 65 | 80 | 50 | 8.5 | 140 | 75 | 2.85 |
| 60*120 | 68*128 | 131 | 90 | 90 | 80 | 9 | 180 | 80 | 3.15 |
| 60*130 | 68*138 | 141 | 95 | 100 | 90 | 9 | 180 | 80 | 3.25 |
| 72*162 | 82*170 | 184 | 120 | 120 | 100 | 9 | 210 | 80 | 4.5 |
| 100*165 | 110*175 | 179 | 100 | 130 | 110 | 10 | 200 | 85 | 5.1 |
KOMAY

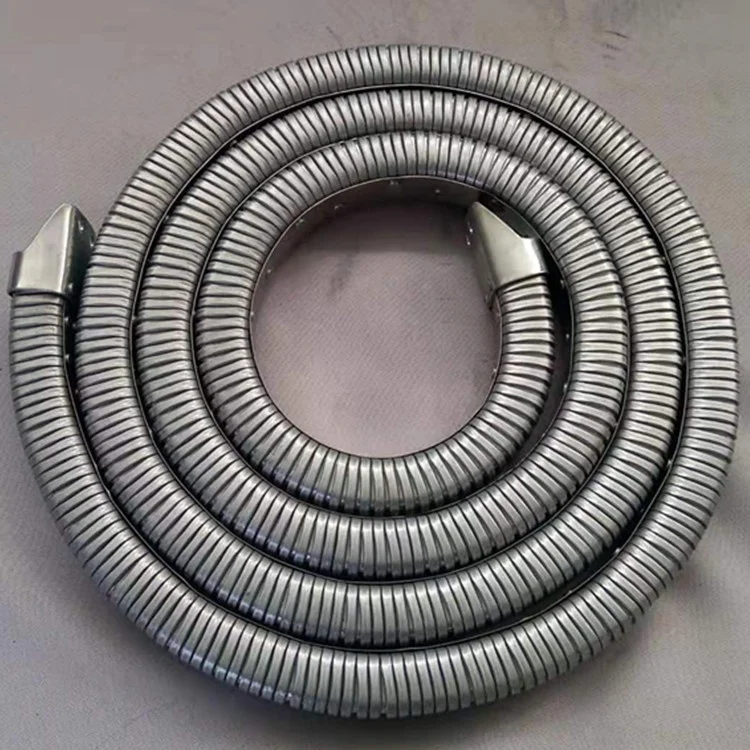

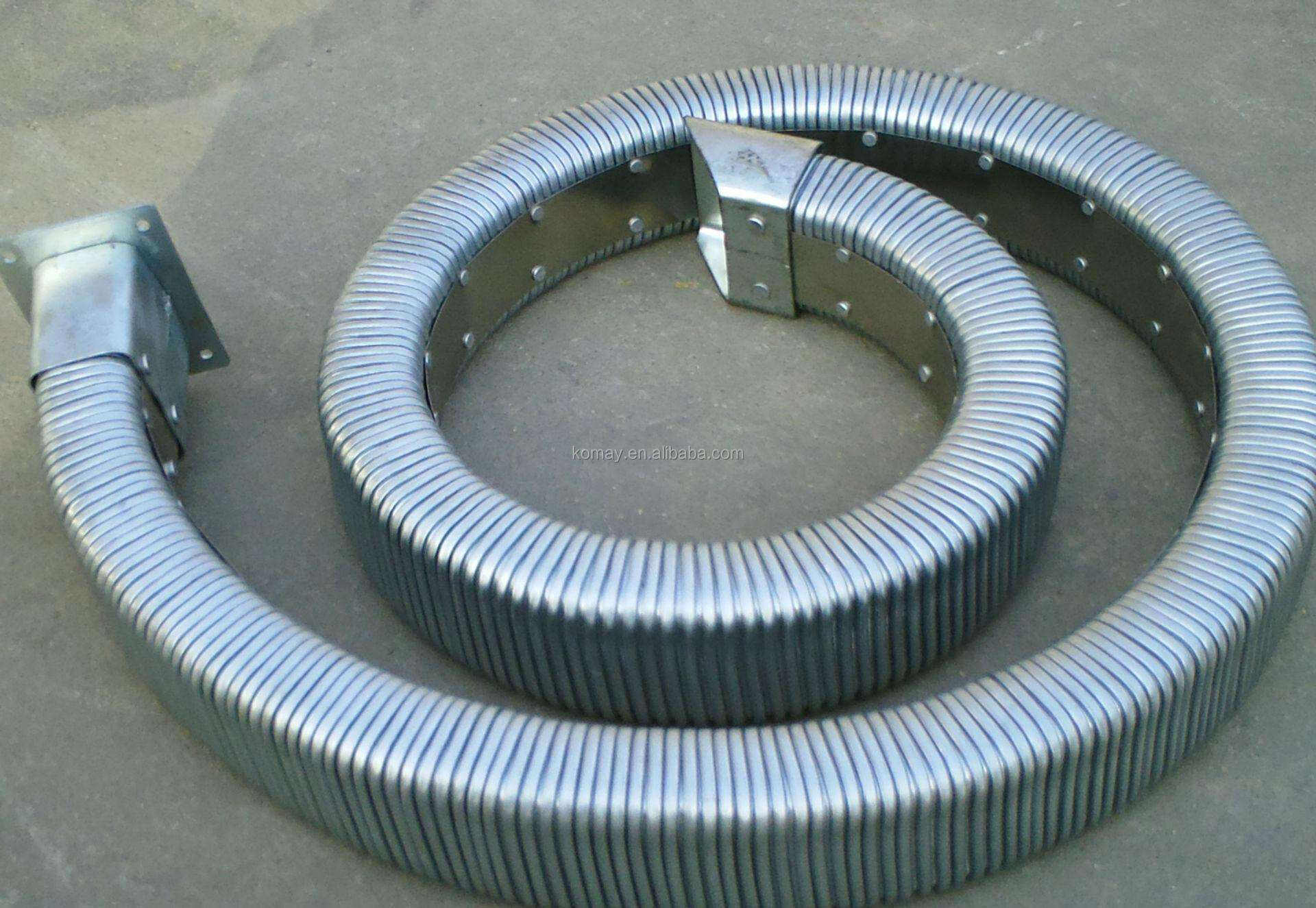

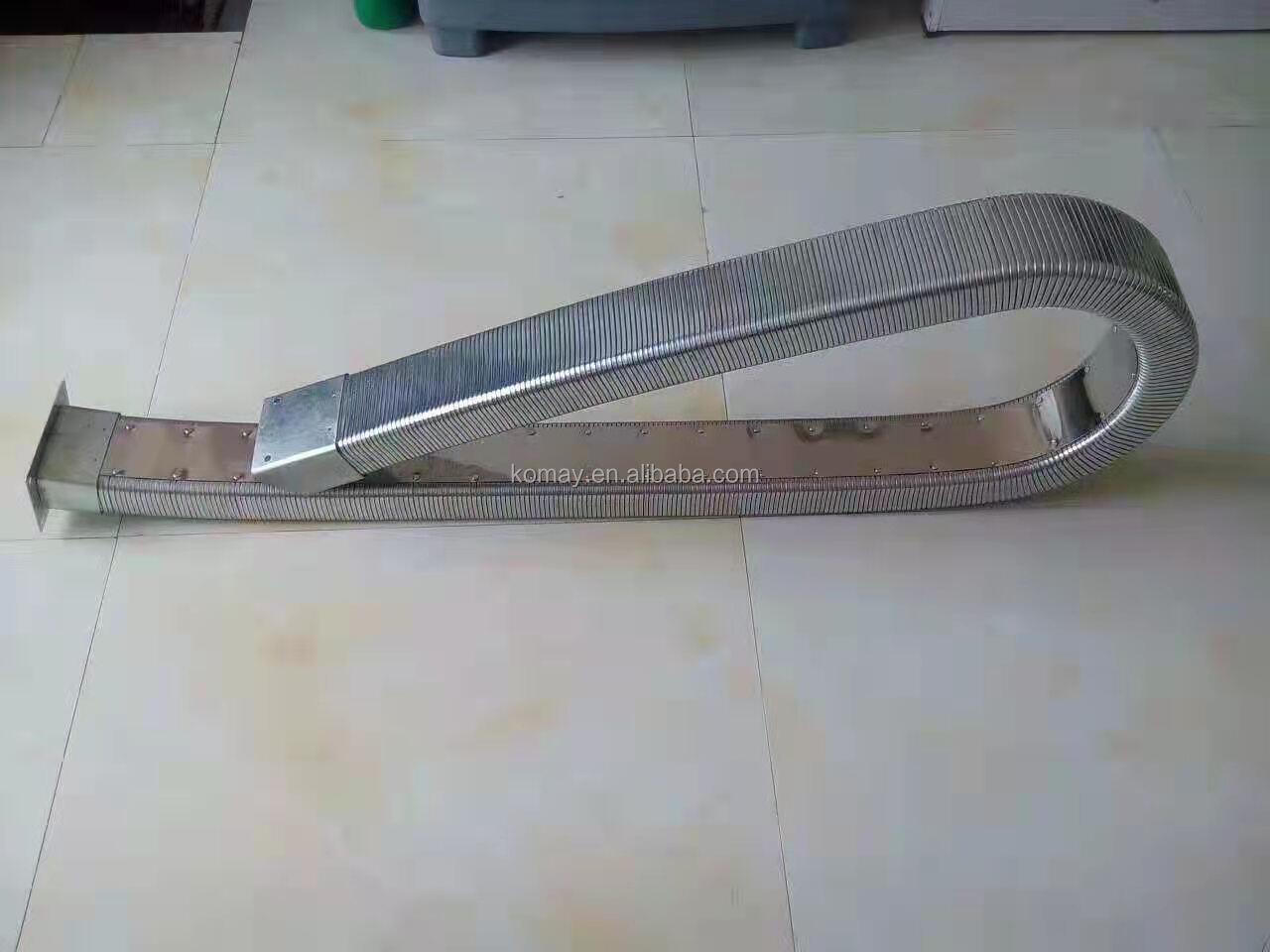

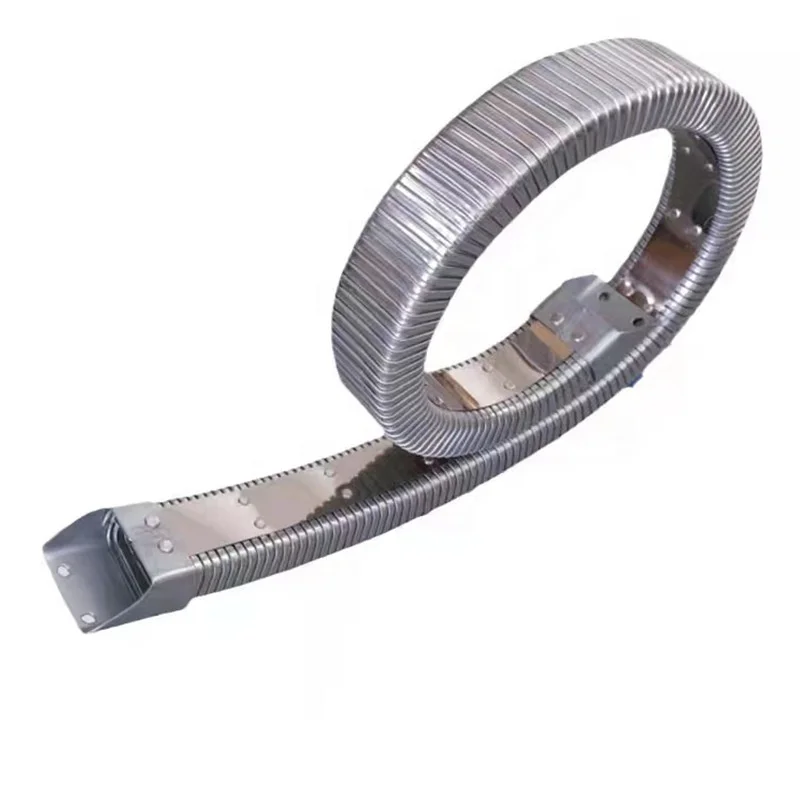

Looking for a reliable and flexible metal hose that can meet your needs? Look no further than the JR2 Flexible rectangular metal hose from KOMAY. The perfect solution for applications that requires a high levels of strength, flexibility, and durability.
Made to protect your cables and hoses from technical damage, harsh climate, as well as other environmental factors. Provides excellent oppositions to abrasions, compressions, and effects, ensuring that your cables and hoses are safe all the time featuring its strong steel constructions.
One key options is its complete design is closed. Enables for optimum security of the cables and hoses against dirt’s, along with other debris, which makes it perfect for use in harsh surroundings. The structure is completely closed stops any electric or mechanical disturbances, making your cables and hoses are safe and fully functional.
Highly flexible, many thanks to its lightweight size and design is lightweight. Perfect for applications that need complex motions and directional changes, such as robotic systems, automatic equipment’s, as well as other commercial applications.
KOMAY is committed to providing items that are top-notch meet the greatest standards of security and performance. Manufactured utilizing the quality materials being highest and advanced technology to ensure that it fulfills your requirements and surpasses your expectations.
Invest in a KOMAY JR2 Flexible rectangular metal hose today and enjoy the peace of mind that comes with knowing your cables and hoses are fully protected.
