KOMAY HFP60 100A Gantry Crane Enclosed Copper Conductor Rail Busbar System

  • Product Details
  • Related products
  • Inquiry
Product Details

KOMAY


HFP60 100A Gantry Crane Enclosed Copper Conductor Rail Busbar System is a system top-quality is electric supplies a dependable and effective solution for the industrial and commercial requirements. This technique is built to be utilized for powering machinery gear heavy-duty gantry cranes, hoists, along with other industrial devices.


The HFP60 100A Gantry Crane Enclosed Copper Conductor Rail Busbar System KOMAY is a superb choice for those who find themselves buying durable, and efficient system electric. The device is manufactured away from top-quality materials, copper conductor rails, and it's enclosed in a sturdy and housing robust provides security against outside facets like dirt and dampness.


This busbar system includes a design and compact lightweight which causes it to be an easy task to put in and keep maintaining., it features a lot most of just as much as 100A, that means it is perfect for powering hefty equipment and gear. Additionally features a low-resistance design, which decreases power loss and improves effectiveness.


The KOMAY HFP60 100A Gantry Crane Enclosed Copper Conductor Rail Busbar System may be built to be safe and dependable. It features a security integral that stops short circuiting and overloading, which protects both the unit the equipment it powers. Furthermore, it features an insulation high that means a top degree of electric security, reducing the likelihood of accidents and electric dangers.


The KOMAY HFP60 100A Gantry Crane Enclosed Copper Conductor Rail Busbar System is a good option if you are buying a top-notch electric system that will offer dependable capacity to your industrial or equipment commercial. This technique was made to final, with top-quality materials and a design sturdy guarantees its durability and durability. Featuring its security features and effectiveness high it is an investment great just about any company that must power heavy-duty equipment and gear. Why wait? Invest inside the KOMAY HFP60 100A Gantry Crane Enclosed Copper Conductor Rail Busbar System and have the dependability and effectiveness it may offer today.


Products Description
powerful

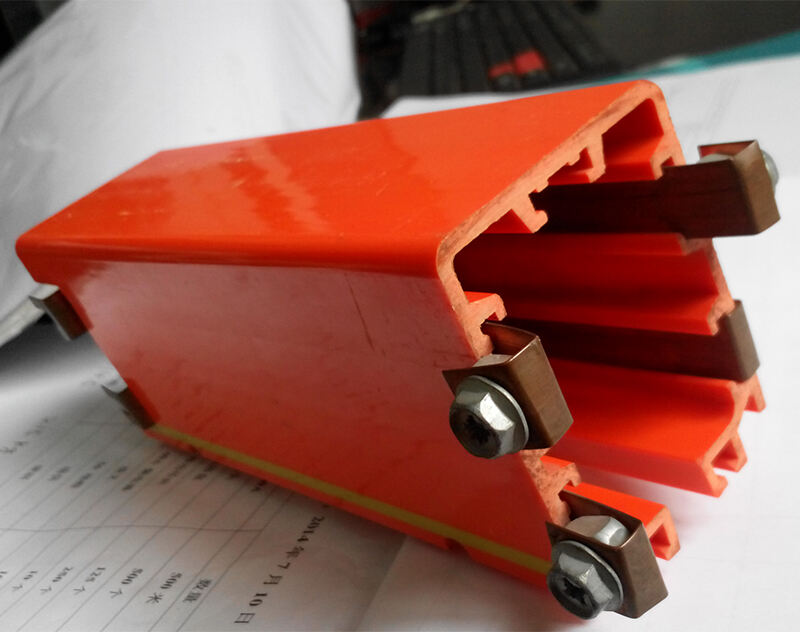

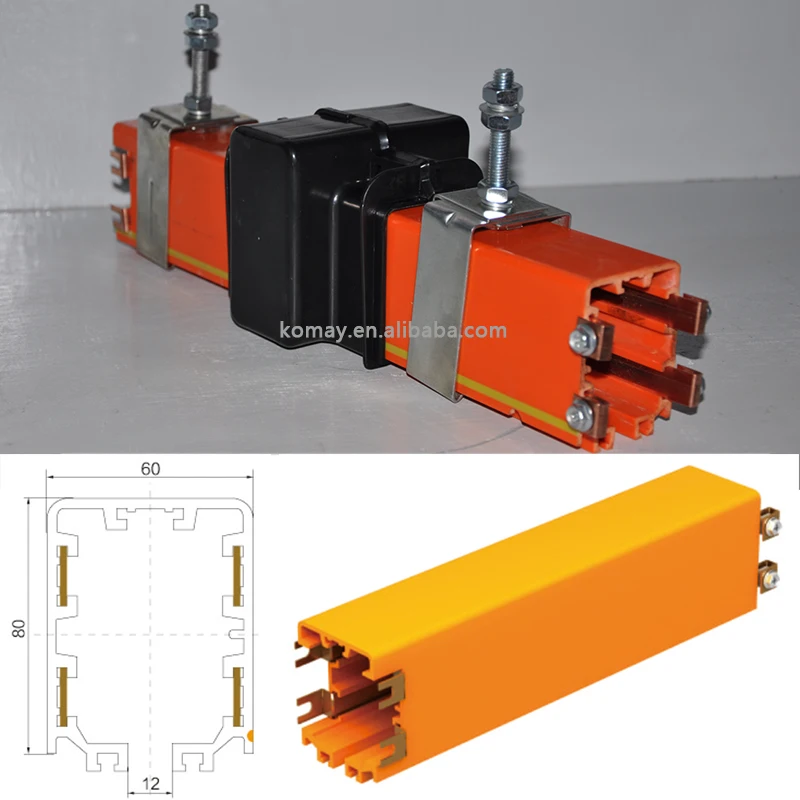

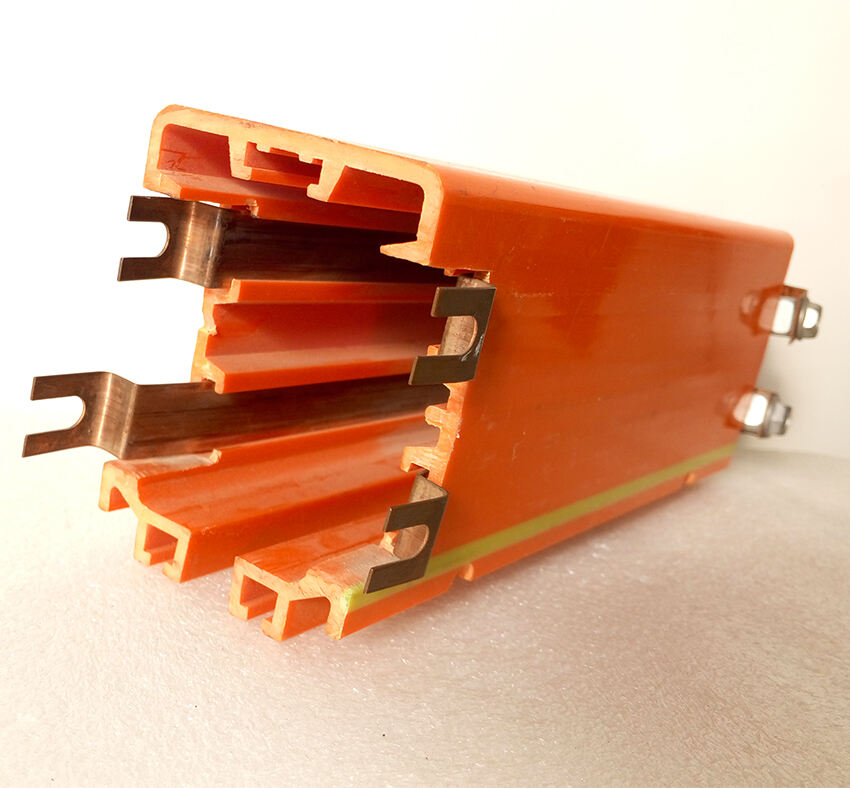

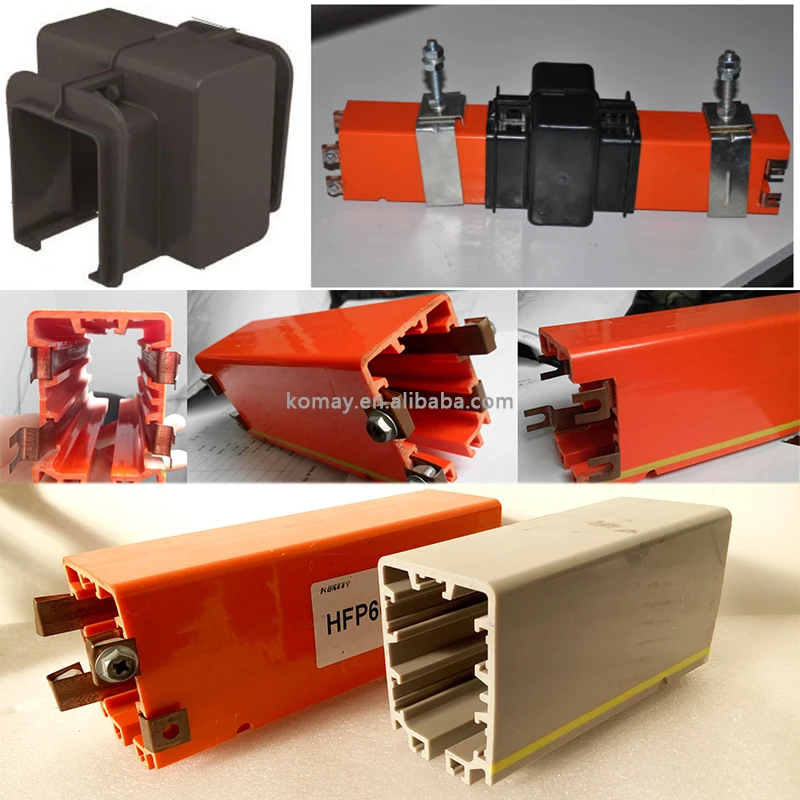

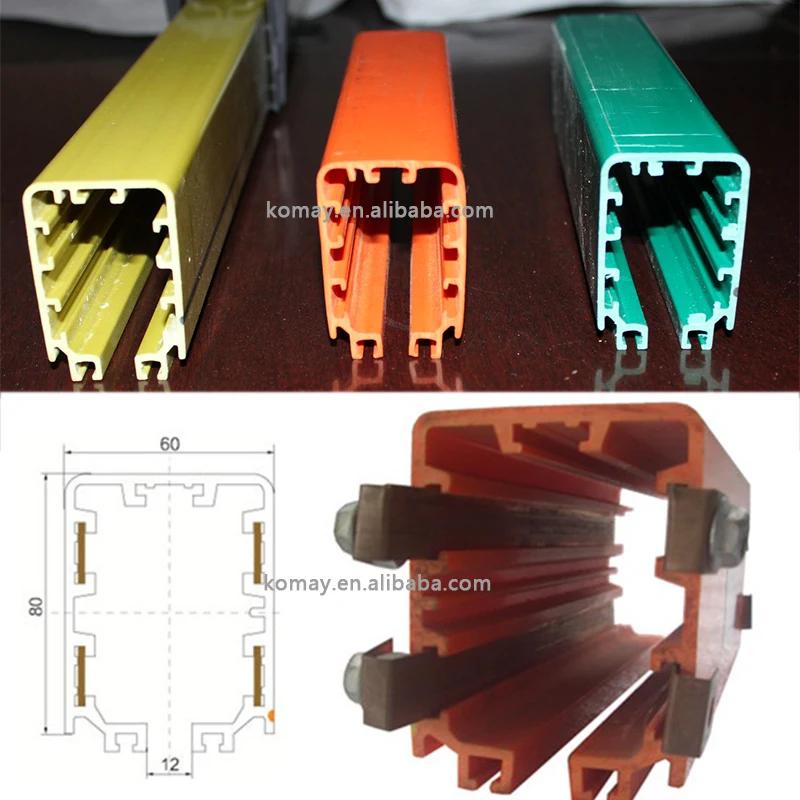

Enclosed conductor rail system is a powerful, protected from contact(IP23), for indoor and outdoor plants. They are conductor lines in a rigid green PVC housing with different copper cross sections for rated currents of 35-240A. Type HFP-P: not include Sealing strip, with factory-mounted flat copper band and bolted-operated plug connectors. Type HFP-R: Curves for R≥800mm, with factory-mounted flat copper band and screw connectors. Approved and listed by: CCC, ISO9001 and CE.

Type Poles Conductor Cross Section(mm²) Max. Current(A)  Leakage Distance(mm)  Max. Voltage(V)  Resistance(Ω/km)  Weight(kg)
>HFP60-4-10/50 4 10 50 34 690 1.656 2.37
HFP60-4-15/80 4 15 80 34 690 1.193 2.49
HFP60-4-20/100 4 20 100 34 690 1.011 2.63
HFP60-4-25/120 4 25 120 34 690 0.761 2.75
HFP60-4-35/140 4 35 140 34 690 0.542 3.12

Related Products

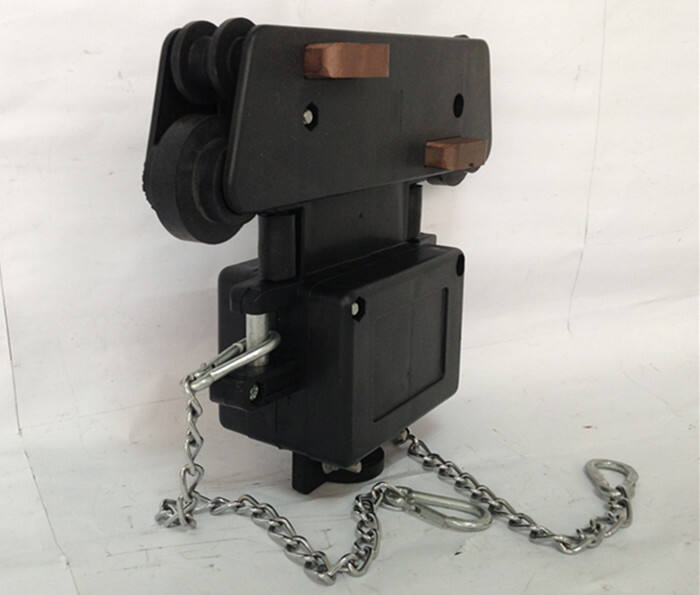

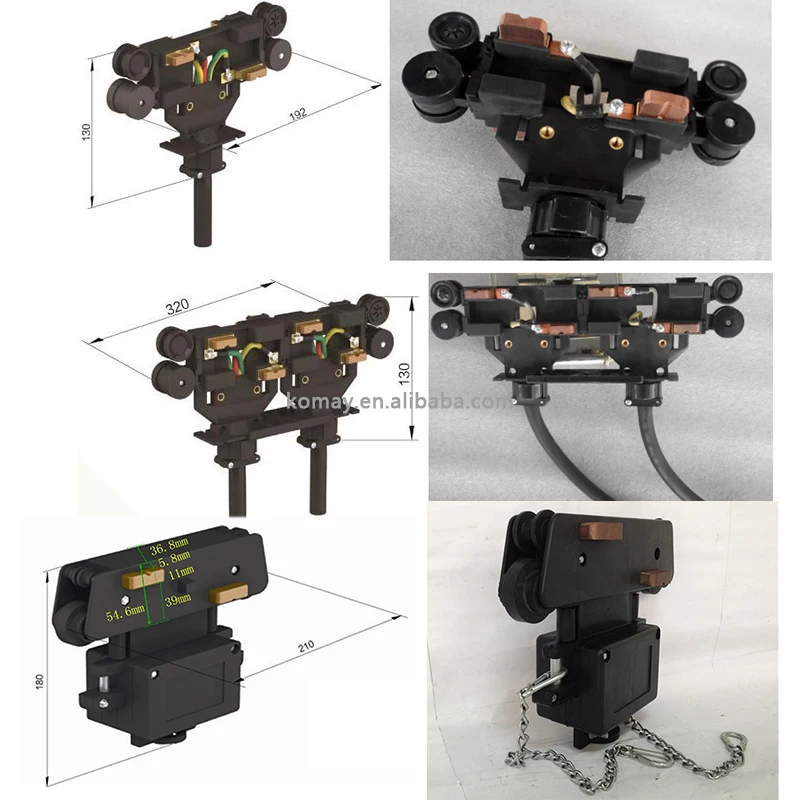

Current Collector

Type Weight (kg)  Poles Power rating Cat. -No.
56JD-4/25 0.65 4 25A 563125
56JD-4/40 0.70 4 40A 563140
56JD-4/60 1.35 4 60A 563160
56JD-4/80 1.30 4 80A 563180
56JDR-4/25 0.50 4 25A 563325
56JDR-4/40 0.60 4 40A 563340
56JD-3/60 0.90 3 60A 563360
56JD-3/80 1.05 3 80A 563380

Accessories

Application

Company Profile

WUXI KOMAY ELECTRIC EQUIPMENT CO., LTD. is a professional high and new tech enterprises in mobile electrification system field. Our major products are Single Pole Insulated Conductor Rails, Enclosed Conductor Rails, Copperhead Conductor Rails, Safety Power Rails, Multipolar Busbar, Busway Systems, Cable Trolleys, Cable Chains, ED Thruster, Electro-Hydraulic Drum Brake and more. The essential features of products are Compact arrangement, corrosion resistance, and simple assembly. The products is suitable especially for overhead and elongated tracks for cranes, monorails, port machines, stacking systems, as well as many other applications for supplying power to moving power loads. Our Products are certified by CE and export to Europe, America, Middle East, Africa, Southeast Asia etc. other country and area. Competitive price and High quality - All mobile electrification systems for you, We are sincerely looking forward to cooperating with you!
