KOMAY festoon system C32 towing trolley made in China

Products Description

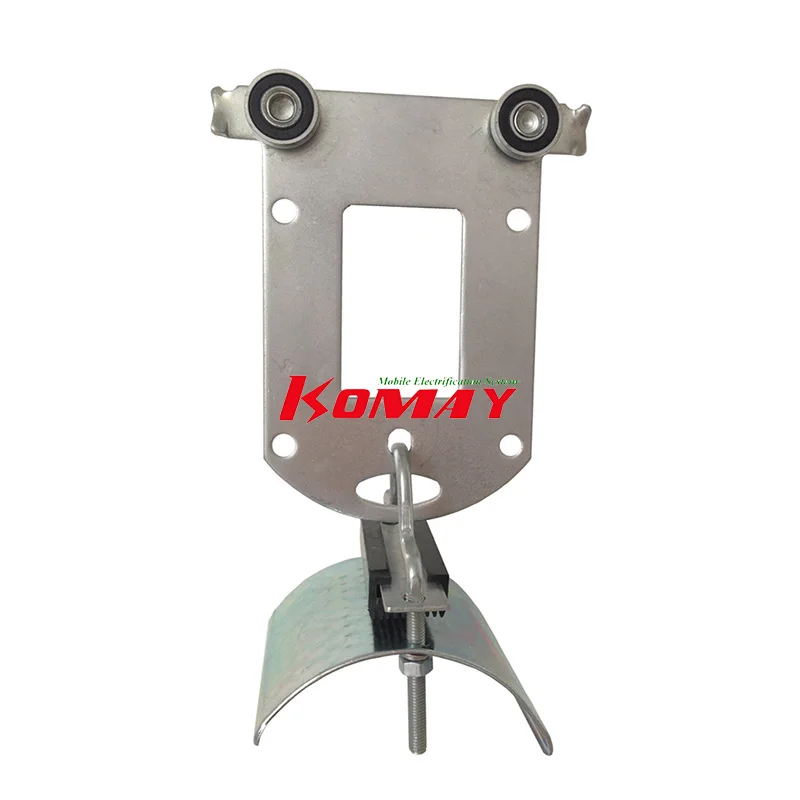

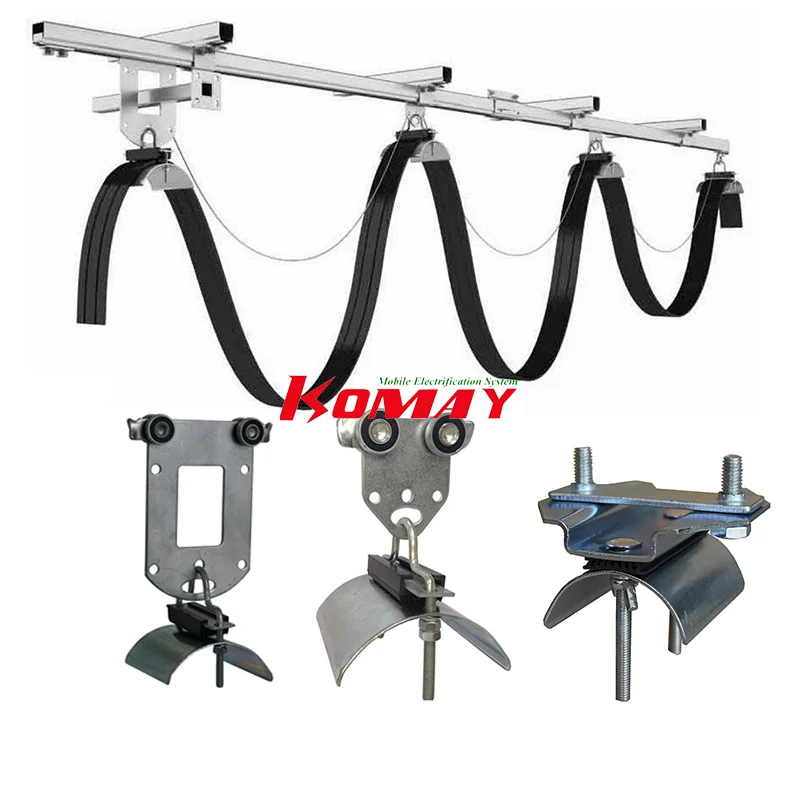

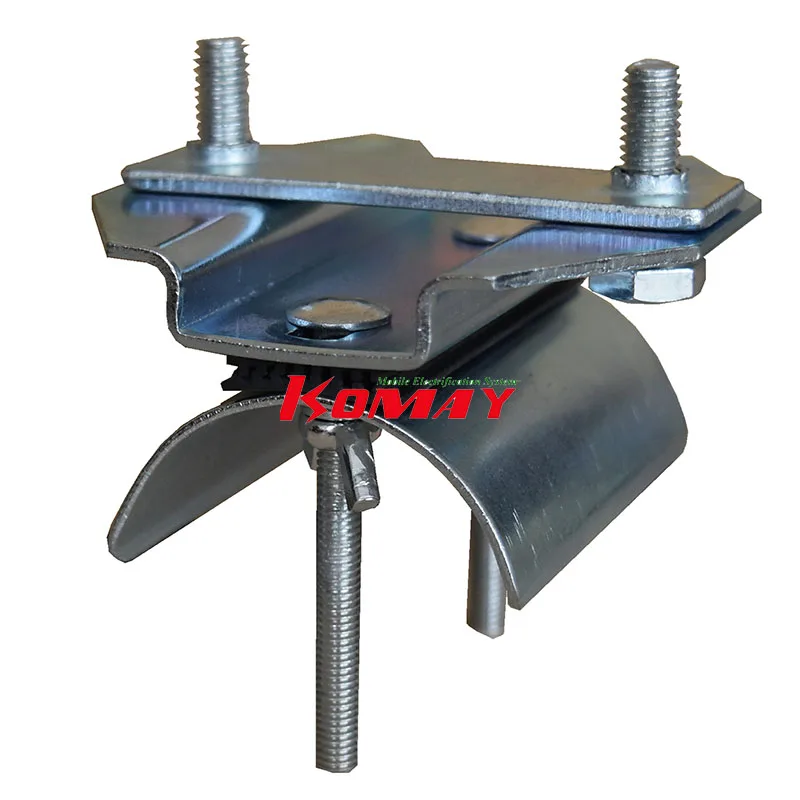

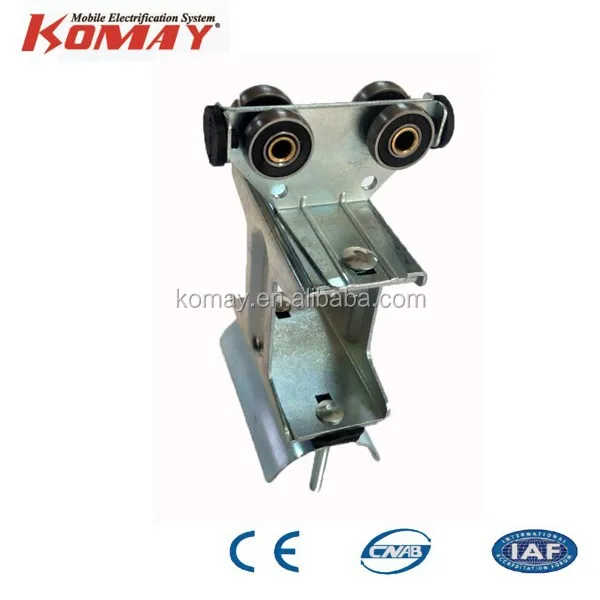

Komay C-track Cable Trolley System Cable Festoon System Cable Trolley is a conductive form of power supply for the crane trolley. It consists of a walking wheel, a bracket and a supporting plate. The flexible cable is fixed on the supporting plate. The traction frame and the I-steel cable pulley are synchronized to achieve the purpose of cable power trolley. Cable trolley is also called cable block, cable pulley, cable rail trolley, cable block trolley, I-beam cable block, I-beam trolley, cable conductive trolley.

Name	Towing Trolley		Middle Trolley		End Trolley
Type	C32SC-75	C32SC-70	C32MC-75	C32MC-70	C32EC-75	C32EC-70
Wheels	Ball bearing, hardened, galvanized Temperature: -30°C to +125°C Traveling speed: 160m/min
Material	Body: steel, galvanized Support saddle: steel, galvanized Bumper: neoprence Dowel: Brass Hardware: galvanized Temperature resistance: -30°to +100°(80°, saddle ABS)				Carrier body: steel, galvanized Support saddle: steel, galvanized Dowel: Brass Hardware: galvanized Temperature resistance: -30°to +100°(80°, saddle ABS)
Max. cable load	25kg per carrier	22kg per carrier	30kg per carrier	22kg per carrier	25kg per carrier	22kg per carrier
Dim. of cable(mm)	75W*32	70W*32	75W*32	70W*32	75W*32	70W*32
Weight(kg)	0.59	0.55	0.41	0.32	0.37	0.31
Cat. -NO.	711101	711105	711201	711205	711301	711305

Related Products

Application

Company Profile

WUXI KOMAY ELECTRIC EQUIPMENT CO., LTD. is a professional high and new tech enterprises in mobile electrification system field. Our major products are Single Pole Insulated Conductor Rails, Enclosed Conductor Rails, Copperhead Conductor Rails, Safety Power Rails, Multipolar Busbar, Busway Systems, Cable Trolleys, Cable Chains, ED Thruster, Electro-Hydraulic Drum Brake and more. The essential features of products are Compact arrangement, corrosion resistance, and simple assembly. The products is suitable especially for overhead and elongated tracks for cranes, monorails, port machines, stacking systems, as well as many other applications for supplying power to moving power loads. Our Products are certified by CE and export to Europe, America, Middle East, Africa, Southeast Asia etc. other country and area. Competitive price and High quality - All mobile electrification systems for you, We are sincerely looking forward to cooperating with you!

Packaging

KOMAY

If you're looking for a reliable and durable festoon system to improve your overhead handling operations, the C32 towing trolley is the perfect choice for you. Made in China by the reputable brand, this festoon system is designed to provide superior performance and excellent value for your money.

Constructed from top-quality materials that can withstand the toughest conditions. The KOMAY device carries a towing is special that permits smooth and safe motion of lots across the length of the festoon system. The trolley is manufactured out of high-strength materials that will manage even the heaviest loads with simplicity.

One of many standout features of the KOMAY C32 towing trolley is its versatile design. The device is fully customizable, permitting users to configure it according to their needs. The festoon system normally adaptable, rendering it perfect for used in a range is wide of and applications, including automotive, aerospace, construction, and production.

Designed with ease of use at heart. The system is easy to install and setup, it calls for upkeep is minimal. The system normally appropriate for various kinds of festoon cable, which makes it user friendly with current systems or included in an installation is brand new.

Safety is just a priority is top KOMAY, and the C32 towing trolley is no exclusion. Created to satisfy all safety is applicable and regulations, making sure your employees and equipment stay safe all the time. A variety is included by the machine of safety features, example limitation switches and security brackets, to prevent accidents and injuries.

The KOMAY C32 towing trolley is sure to exceed your expectations and provide you with years of reliable service.
