KOMAY Electric Track Trolley Festoon System I-Beam Cable Trolley systems, China KOMAY Electric Track Trolley Festoon System I-Beam Cable Trolley systems Manufacturers, Suppliers, Factory

Product Details

Looking for an effective and method power reliable electric devices? Appearance definitely no additional compared to the KOMAY Electric Track Trolley Festoon System I-Beam Cable Trolley systems.

Produced through the relied-on brand electric, this advanced cable trolley system is developed towards deal smooth power move for your equipment with no interruption or even downtime. No matter if you are having a building site or even operating devices significant a commercial atmosphere, KOMAY Electric Track Trolley Festoon System I-Beam Cable Trolley systems will be the service perfect.

The KOMAY cable trolley system is simple towards established and operate including its own ingenious I-Beam style. The device's first-class aspects, consisting of its own lightweight aluminum durable track cable durable, are produced towards last and will endure possibly the most difficult environmental problems.

The KOMAY Electric Track Trolley Festoon System I-Beam Cable Trolley systems furthermore includes a festoon special that creates it custom-made the system towards satisfies up your distinct demands. The KOMAY system is incredibly flexible and that can be easily changed as your choices change in time whether it is likewise essential towards consist of power additional or even enhance the period connected with power cable.

Amongst the essential leading associates of the KOMAY Electric Track Trolley Festoon System I-Beam Cable Trolley systems is its own power reliable move. The KOMAY system assurances a steady motion of capability for your equipment, also in lots of requiring problems unlike traditional cable systems which are in danger of power outages and disruptions.

Additionally, the KOMAY Electric Track Trolley Festoon System I-Beam Cable Trolley systems is easy towards repair and maintain. Any type of repair work or even substitutes is feasible quickly and rapidly without requiring high valued downtime or even particular proficiency which includes modular style and easy to use interface.

electric track trolley, track trolley, trolley

Product Description

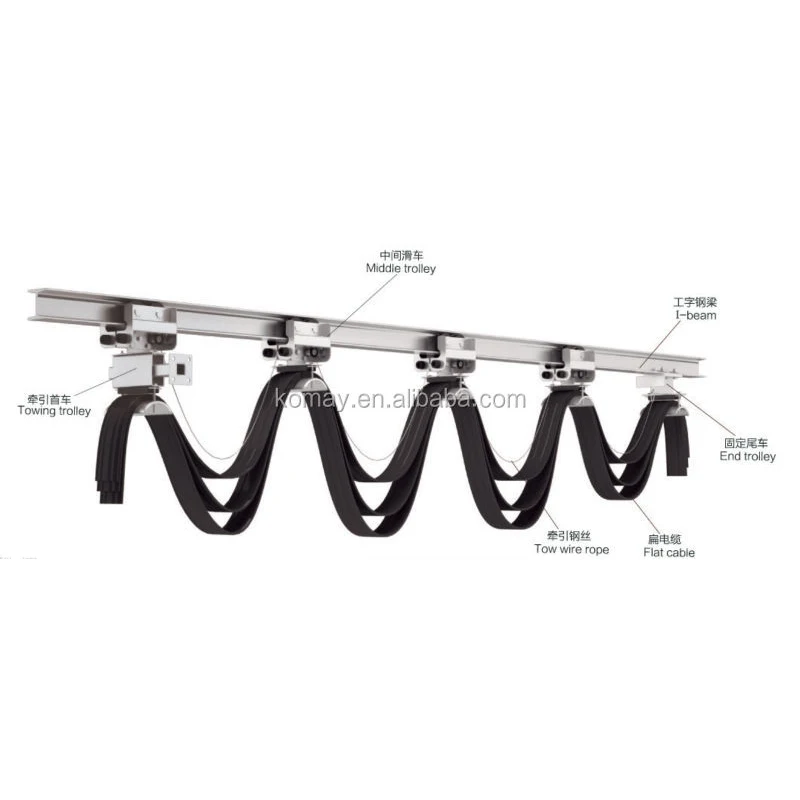

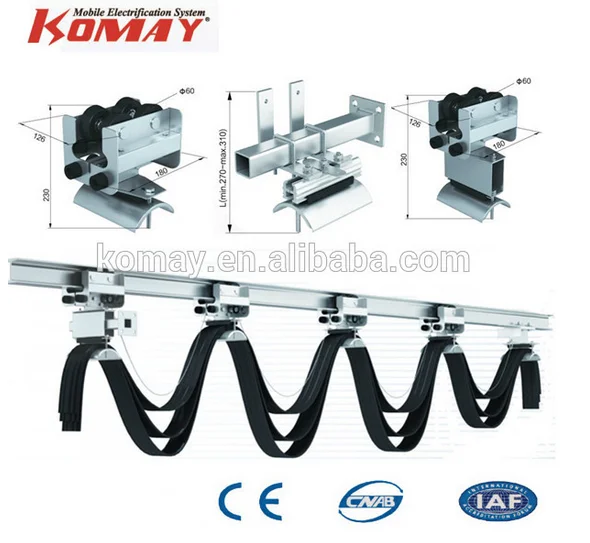

System photo of I-beam trolley

General

The I-Beam trolley is the conductive way for the power of the crane trolley, made of the wheel, frame, pallet, the flexible cable is fixed on the pallet, the traction sync cable trolley in order to achieve the purpose of trolley power supply.

The I-Beam trolley which produced by KOMAY Electric made of W15, W45, W55 systems. W15 systems is Light load, applicable to the use of the curved arc, wheel spacing can be adjusted to meet the use of INP/IPE 80-INP/IPE320 I-Beams. The I-Beam trolley of the W35 systems is Medium Load, KOMAY’s new generation of products, developed by WUXI KOMAY ELELCTRIC EQUIPMENT CO. LTD is currently the most widely used all over the world.

The I-Beam trolley of the W35 Systems has the following characteristics:

1. The modular combination, the trolleys all components of this systems are made of standardized modules, according to the requirements of the different I-Beam beam use, flexible assembly.
2. Versatility. In which, W35 trolley can adjust itself, the basic factory configuration can be applied INP/IPE80-INP/IPE220 I-Beam girder.
3. Mobile flexible. Using a special roller, roller high sensitivity; the nylon contact block sealing device, effectively reduce the impact and to ensure the stability of the running.
4. With cable protection device. A special rubber played a role in protecting the flat cable, not only to avoid scratching of the cable, but also closer contact, to avoid the risk of loose.
5. A full set of production molds. Each parts is custom mold, the entire production is fully mechanized, mold, to ensure the stability of quality.

The I-Beam trolley of the W45 Systems runs stably, plastic rollers to avoid the friction spark phenomena when running, high safety performance, can be converted to ordinary explosion-proof environment.

The I-Beam trolley of the W55 Series is Heavy Duty Load, design philosophy continues W35 series, widely used in heavy –duty mobile powered machinery.

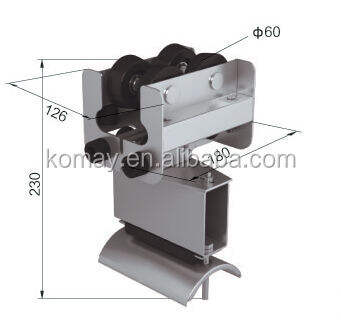

MIDDLE TROLLEY ON I-BEAM W35MC

Type	W35mc-70	W35MC-120	W35MC-150	W35MC-250	W35MC-350
Wheels	Ball bearing, hardened, galvanized Temperature resistance Lub. grease of wheel: -30°Cto+125°C Traveling Speed: ca. 300m/min
Material	Carrier body: steel, galvanized Support saddle: steel, galvanized Dowel: Steel, galvanized Hardware: galvanized Temperature resistance: -30°Cto+100°C
Max. cable load	Max. 50 kg	Max. 60 kg	Max. 70 kg	Max. 150 kg	Max. 250 kg
Dim. of Cable (mm)	max. 75W×32δ	max. 120W×60δ	max. 150W×70δ	max. 120W×50δ	max. 250W×70δ
Weight(kg)	1.90	2.40	2.50	4.35	5.15
Cat. -NO.	773502	773522	773562	775522	775552

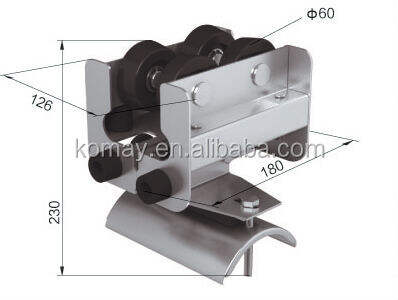

TOWING TROLLEY ON I-BEAM

Type	W35SC-120	W35SC-150	W55SC-250	W55SC-350
Material	Carrier body: steel, galvanized Support saddle: steel, galvanized Bumper: Neoprene Hardware: galvanized Temperature resistance: -30°Cto+100°C
Max. cable load	Max. 60 kg	Max. 70 kg	Max. 150 kg	Max. 250 kg
Dim. of Cable (mm)	max. 120W×50δ	max. 150W×50δ	Max. 250W×70δ	Max. 300W×70δ
Weight(kg)	2.10	2.30	2.60	3.00
Cat. -NO.	773521	773531	775521	775551

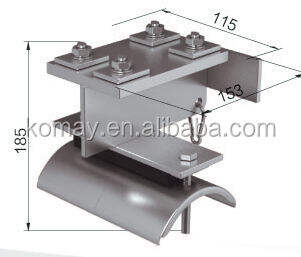

END TROLLEY ON I-BEAM

Type	W35EC-120	W35EC-150	W55EC-250	W55EC-350
Material	Carrier body: steel, galvanized Support saddle: steel, galvanized Bumper: Neoprene Hardware: galvanized Temperature resistance: -30°Cto+100°C
Max. cable load	Max. 60 kg	Max. 70 kg	Max. 150 kg	Max. 250 kg
Dim. of Cable (mm)	max. 120W×50δ	max. 150W×50δ	Max. 250W×70δ	Max. 300W×70δ
Weight(kg)	1.25	1.45	1.95	2.35
Cat. -NO.	773523	773533	775523	775533

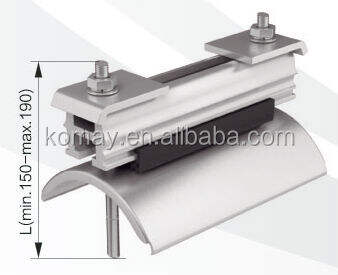

Towing Trolley on I-Beam be used for W35/W55 system.

End Trolley on I-Beam be used for W35/W55 system

MIDDLE TROLLEY ON I-BEAM W15RMC

	Type	W15RMC
	Wheels	Ball bearing, hardened, galvanized Temperature resistance: -30°Cto+125°C Traveling Speed: ca. 300m/min
	Material	Carrier body: steel, galvanized Support saddle: steel & neoprene Hardware: galvanized Temperature resistance: -30°Cto+120°C
	Max. cable load	Max. 5 kg
	Dim. of Cable (mm)	D=Φ15mm
	Weight(kg)	0.64
	Cat. -NO.	771515

MIDDLE TROLLEY ON I-BEAM W45MC

Type	W45MC-75	W45MC-120	W45MC-150
Wheels	Ball bearing, with neoprene cover, hardened, galvanized Temperature resistance Lub. grease of wheel: -30°Cto+120°C Traveling Speed: ca. 300m/min
Material	Carrier body: steel, galvanized Support saddle: steel, galvanized Bumper: Neoprene Dowel: Steel, galvanized Hardware: galvanized Temperature resistance: -30°Cto+120°C
Max. cable load	Max. 70 kg	Max. 120 kg	Max. 150 kg
Dim. of Cable (mm)	max. 75W×50δ	max. 120W×50δ	max. 150W×70δ
Weight(kg)	2.75	3.45	3.85
Cat. -NO.	774512	774522	774532

TOWING TROLLEY ON I-BEAM W45SC

Type	W45SC-75	W45SC-120	W45SC-150
Wheels	Ball bearing, with neoprene cover, hardened, galvanized Temperature resistance Lub. grease of wheel: -30°Cto+120°C Traveling Speed: ca. 300m/min
Material	Carrier body: steel, galvanized Support saddle: steel, galvanized Bumper: Neoprene Hardware: galvanized Temperature resistance: -30°Cto+120°C
Max. cable load	Max. 70 kg	Max. 120 kg	Max. 150 kg
Dim. of Cable (mm)	max. 75W×50δ	max. 120W×50δ	Max. 150W×70δ
Weight(kg)	3.15	3.95	4.55
Cat. -NO.	774511	774521	774531

END TROLLEY ON I-BEAM W45EC

Type	W45EC-75	W45EC-120	W45EC-150
Material	Carrier body: steel, galvanized Support saddle: steel, galvanized Bumper: Neoprene Hardware: galvanized Temperature resistance: -30°Cto+120°C
Max. cable load	Max. 70 kg	Max. 120 kg	Max. 150 kg
Dim. of Cable (mm)	max. 75W×50δ	max. 120W×50δ	Max. 150W×70δ
Weight(kg)	1.75	2.35	2.85
Cat. -NO.	774513	774523	774533
