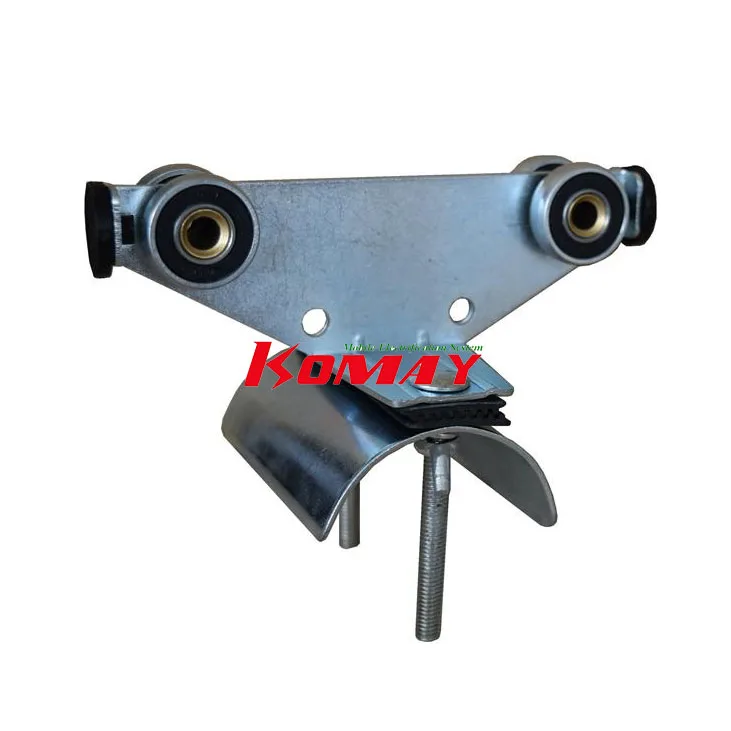

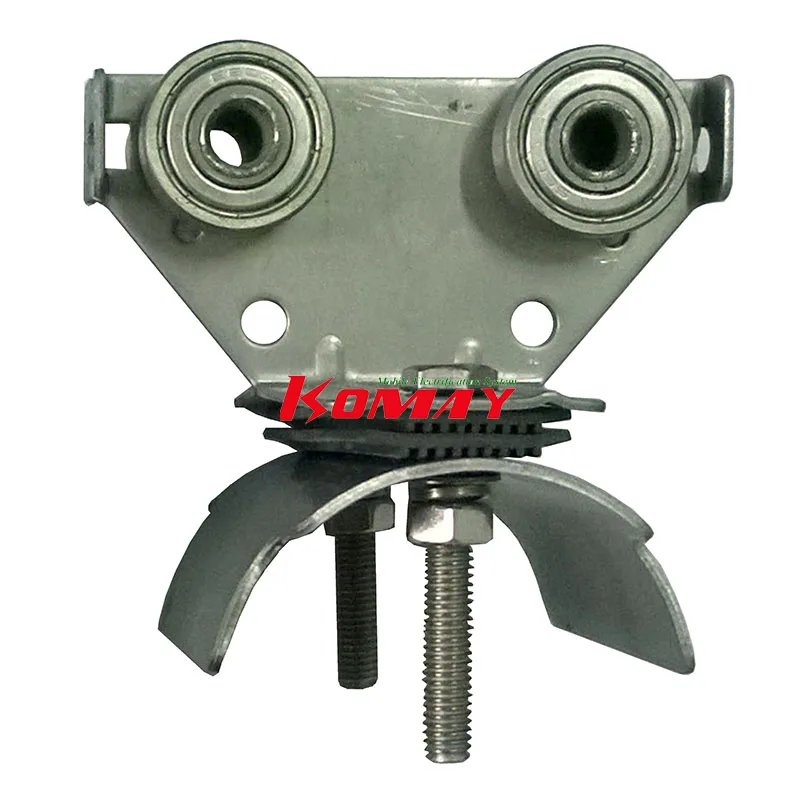

KOMAY C32 Galvanized steel middle cable trolley for c rail festoon system

KOMAY C32 Galvanized steel middle cable trolley for c rail festoon system

Inquiry

Product Details
Related products
Inquiry

Product Details

Products Description

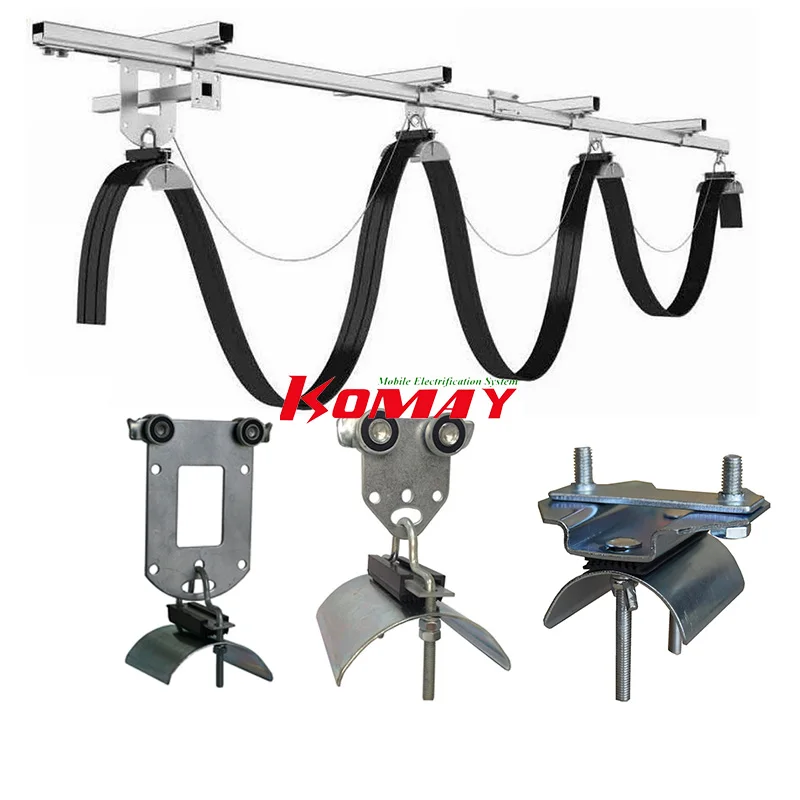

Komay C-track Cable Trolley System Cable Festoon System Cable Trolley is a conductive form of power supply for the crane trolley. It consists of a walking wheel, a bracket and a supporting plate. The flexible cable is fixed on the supporting plate. The traction frame and the I-steel cable pulley are synchronized to achieve the purpose of cable power trolley. Cable trolley is also called cable block, cable pulley, cable rail trolley, cable block trolley, I-beam cable block, I-beam trolley, cable conductive trolley.

Name	Towing Trolley			Middle Trolley			End Trolley
Type	C32SC-75	C32SC-70	C32MC-75	C32MC-70	C32EC-75	C32EC-70
Wheels
Ball bearing, hardened, galvanized Temperature: -30°C to +125°C Traveling speed: 160m/min
	Body: steel, galvanized Support saddle: steel, galvanized Bumper: neoprence Dowel: Brass Hardware: galvanized Temperature resistance: -30°to +100°(80°, saddle ABS)				Carrier body: steel, galvanized Support saddle: steel, galvanized Dowel: Brass Hardware: galvanized Temperature resistance: -30°to +100°(80°, saddle ABS)
Max. cable load	25kg per carrier	22kg per carrier	30kg per carrier	22kg per carrier	25kg per carrier	22kg per carrier
Dim. of cable(mm)	*75W32**	*70W32**	*75W32**	*70W32**	*75W32**	*70W32**
Weight(kg)	0.59	0.55	0.41	0.32	0.37	0.31
Cat. -NO.	711101	711105
711201	711205	711301	711305

Related Products

Application

Company Profile

WUXI KOMAY ELECTRIC EQUIPMENT CO., LTD. is a professional high and new tech enterprises in mobile electrification system field. Our major products are Single Pole Insulated Conductor Rails, Enclosed Conductor Rails, Copperhead Conductor Rails, Safety Power Rails, Multipolar Busbar, Busway Systems, Cable Trolleys, Cable Chains, ED Thruster, Electro-Hydraulic Drum Brake and more. The essential features of products are Compact arrangement, corrosion resistance, and simple assembly. The products is suitable especially for overhead and elongated tracks for cranes, monorails, port machines, stacking systems, as well as many other applications for supplying power to moving power loads. Our Products are certified by CE and export to Europe, America, Middle East, Africa, Southeast Asia etc. other country and area. Competitive price and High quality - All mobile electrification systems for you, We are sincerely looking forward to cooperating with you!

Packaging

KOMAY

Presenting the C32 Galvanized steel middle cable trolley, a resilient effective service for your c rail festoon system requirements. Created along with top-tier Galvanized steel, this trolley can easily handle any type of difficulty you toss at it. KOMAY is a relied-on brand name understood for creating top quality items that stand up the examination of your time, this trolley is no exemption.

Produced towards effectively operate utilizing KOMAY c rail bodies bring cable television’s hose pipes that energy your devices. an optimal is possessed due to the trolley tons capability of 32 kg can easily fit a variety of cable dimensions. It is ideal for utilize in industrial setups where equipment is durable equipment are available in treatment. The trolley can easily endure the roughness of duplicated motion it is designed towards last.

Flexible, as they could be discovered in each interior setups being outside. This is a fantastic option whether you will wish to go cable televisions hose pipes throughout your storage facility, manufacturing facility, or even building web internet web site. Its own weather-resistant residential or commercial homes guarantee that it can easily endure severe aspects outdoors like for circumstances rainfall, wind, snowfall.

not difficult towards set up will not require any type of devices which could be unique. Its own style allows for fast setup is problem-free to assist you prepare towards go quickly. Additionally, the trolley is simple towards preserve cleanse, making it a treatment is low-maintenance conserves your important money and time.

Purchase your C32 Galvanized steel middle cable trolley today expertise the high-top premium dependability that KOMAY is understood for.
