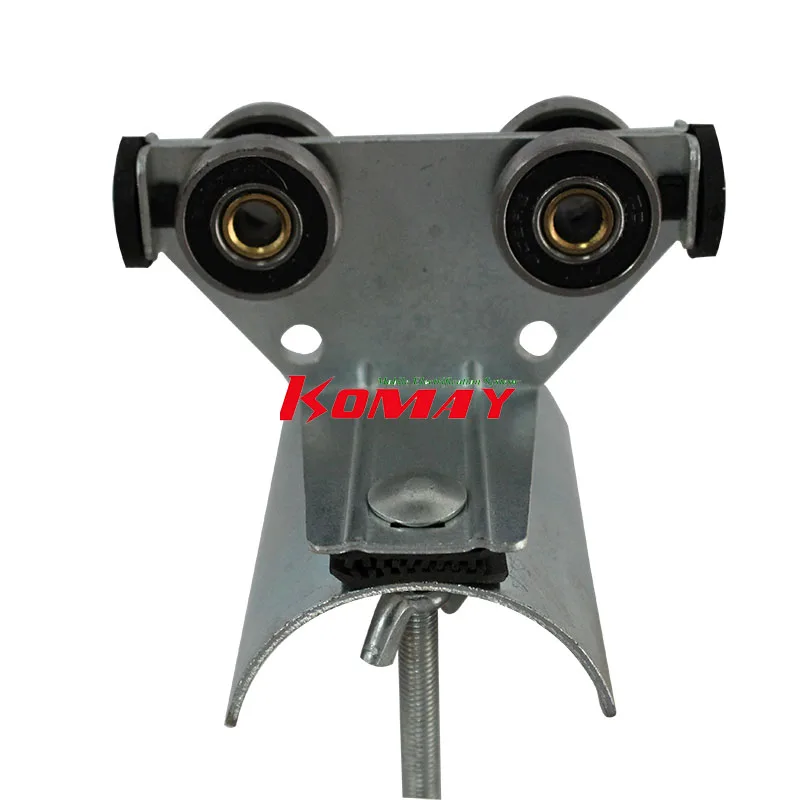

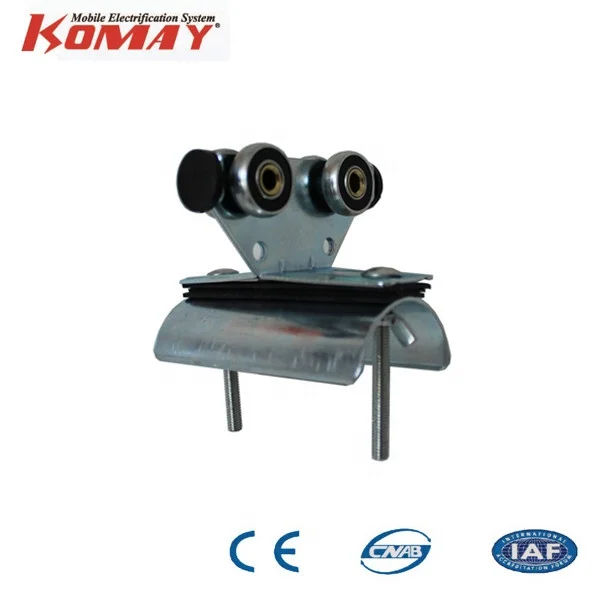

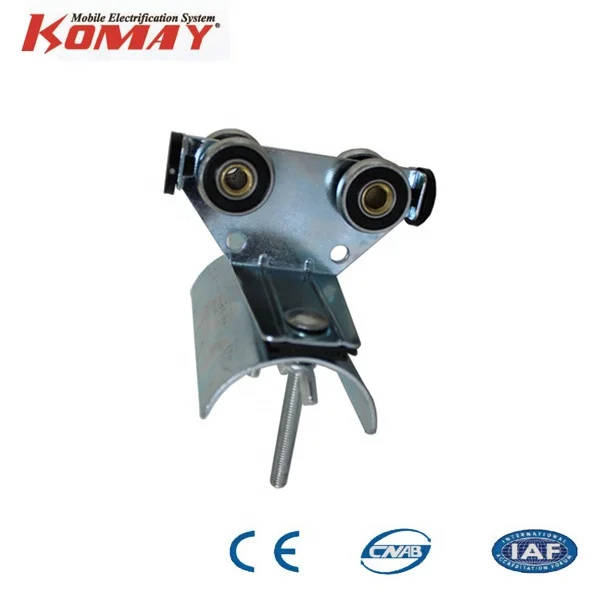

KOMAY C32 Flat cable middle cable trolley

Products Description

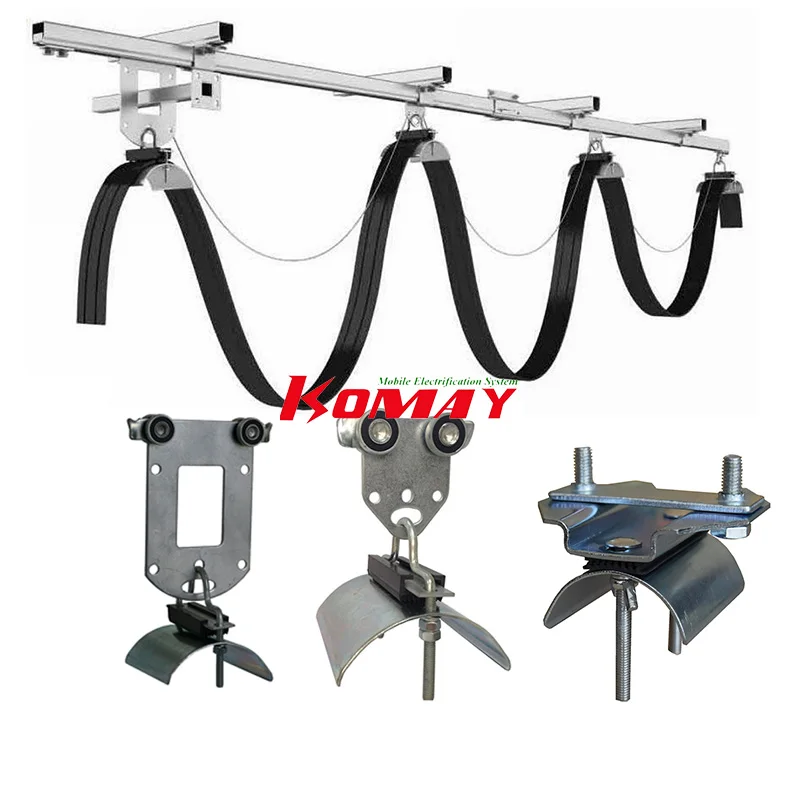

Komay C-track Cable Trolley System Cable Festoon System Cable Trolley is a conductive form of power supply for the crane trolley. It consists of a walking wheel, a bracket and a supporting plate. The flexible cable is fixed on the supporting plate. The traction frame and the I-steel cable pulley are synchronized to achieve the purpose of cable power trolley. Cable trolley is also called cable block, cable pulley, cable rail trolley, cable block trolley, I-beam cable block, I-beam trolley, cable conductive trolley.

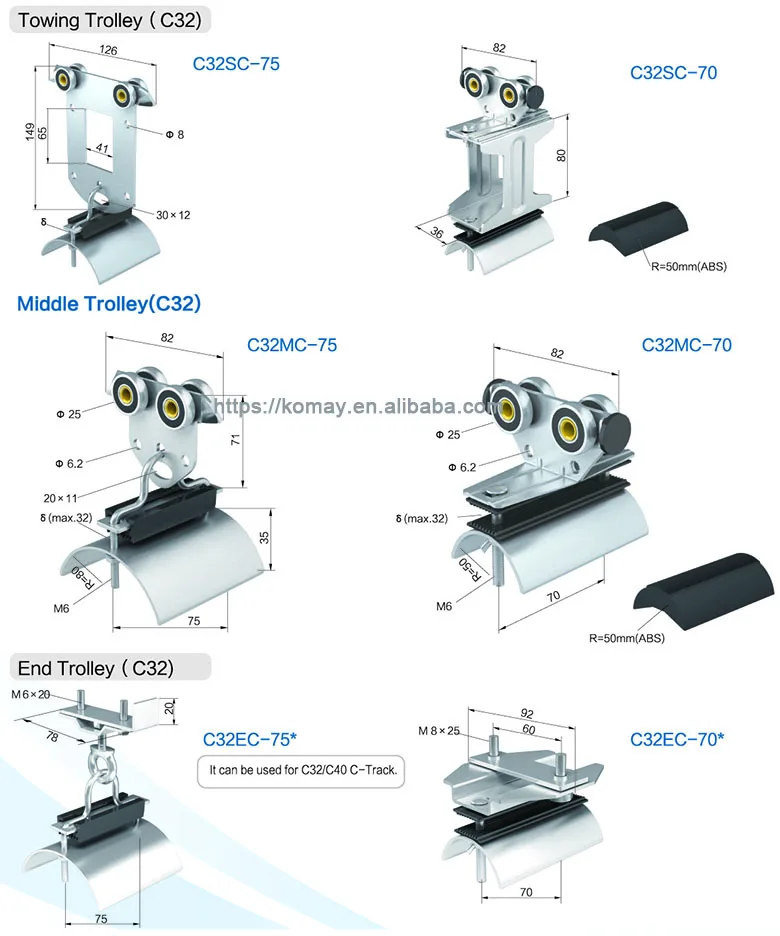

Name	Towing Trolley		Middle Trolley		End Trolley
Type	C32SC-75	C32SC-70	C32MC-75	C32MC-70	C32EC-75	C32EC-70
Wheels	Ball bearing, hardened, galvanized Temperature: -30°C to +125°C Traveling speed: 160m/min
Material	Body: steel, galvanized Support saddle: steel, galvanized Bumper: neoprence Dowel: Brass Hardware: galvanized Temperature resistance: -30°to +100°(80°, saddle ABS)				Carrier body: steel, galvanized Support saddle: steel, galvanized Dowel: Brass Hardware: galvanized Temperature resistance: -30°to +100°(80°, saddle ABS)
Max. cable load	25kg per carrier	22kg per carrier	30kg per carrier	22kg per carrier	25kg per carrier	22kg per carrier
Dim. of cable(mm)	75W*32	70W*32	75W*32	70W*32	75W*32	70W*32
Weight(kg)	0.59	0.55	0.41	0.32	0.37	0.31
Cat. -NO.	711101	711105	711201	711205	711301	711305

Related Products

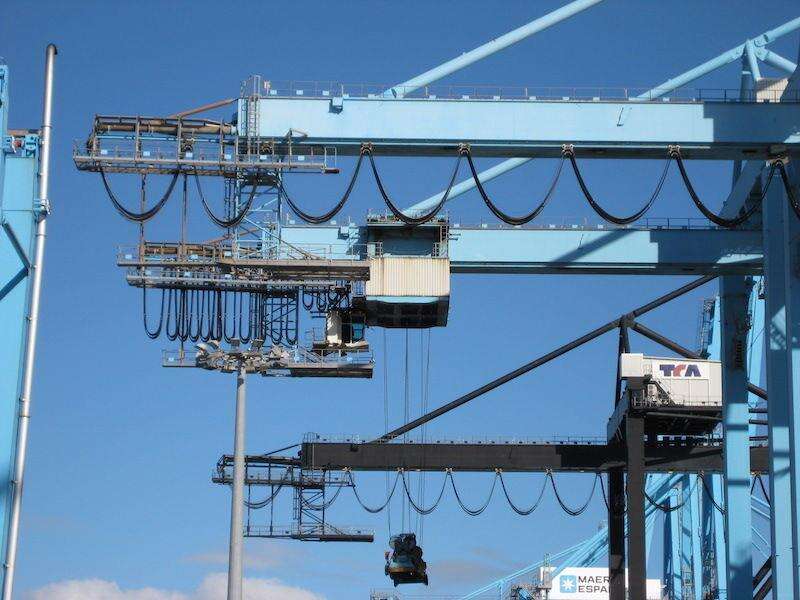

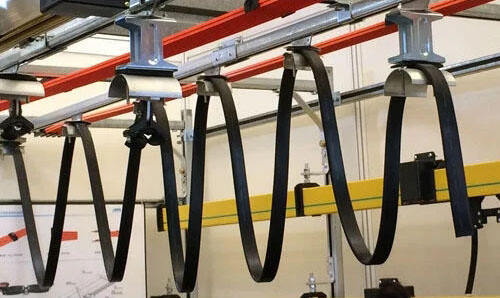

Application

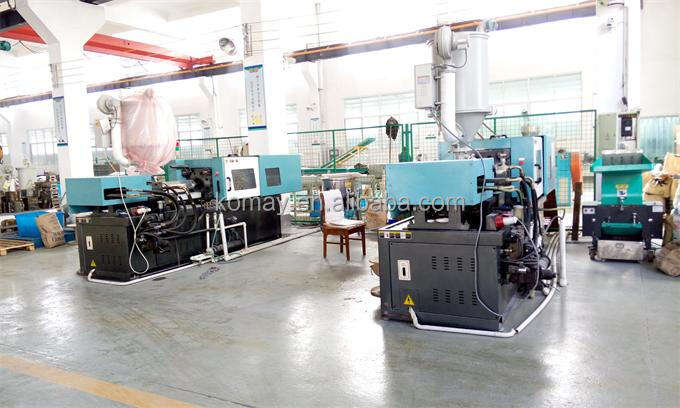

Company Profile

WUXI KOMAY ELECTRIC EQUIPMENT CO., LTD. is a professional high and new tech enterprises in mobile electrification system field. Our major products are Single Pole Insulated Conductor Rails, Enclosed Conductor Rails, Copperhead Conductor Rails, Safety Power Rails, Multipolar Busbar, Busway Systems, Cable Trolleys, Cable Chains, ED Thruster, Electro-Hydraulic Drum Brake and more. The essential features of products are Compact arrangement, corrosion resistance, and simple assembly. The products is suitable especially for overhead and elongated tracks for cranes, monorails, port machines, stacking systems, as well as many other applications for supplying power to moving power loads. Our Products are certified by CE and export to Europe, America, Middle East, Africa, Southeast Asia etc. other country and area. Competitive price and High quality - All mobile electrification systems for you, We are sincerely looking forward to cooperating with you!

Packaging

KOMAY

C32 Flat cable middle cable trolley is a must-have for anyone who needs to transport cables in a neat and organized manner. Made with high-quality materials, this product is built to last and withstand the test of time.

The C32 trolley means that all cables are organized in a straight line, preventing the tangling and knotting of cables that can happen along with other KOMAY cable trolleys using its flat cable design. Not only will this save you effort and time, but it will avoid damage to your cables, making sure they stay in top condition for longer.

Designed with freedom at heart, allowing the user to customize the design of cables to suit their needs. The KOMAY C32 flat cable middle cable trolley is a versatile item you can use in many different situations with a wide range of applications, from commercial and manufacturing settings to office and house usage.

The trolley is easy to go, because of the smooth wheels gliding are connected to the base. It is created by the tires very easy to go the trolley from a single location to another, even if it is fully laden up with cables.

The KOMAY brand name is well known for the commitment to quality and reliability, this isn't any exclusion. The item is manufactured towards the greatest requirements, using only the greatest materials and workmanship.

Don't wait any longer, get your KOMAY C32 trolley today.
