KOMAY C30 Steel C Rail Crane Hoist Traveling Cable Trolley Price

Products Description

Komay C-track Cable Trolley System Cable Festoon System Cable Trolley is a conductive form of power supply for the crane trolley. It consists of a walking wheel, a bracket and a supporting plate. The flexible cable is fixed on the supporting plate. The traction frame and the I-steel cable pulley are synchronized to achieve the purpose of cable power trolley. Cable trolley is also called cable block, cable pulley, cable rail trolley, cable block trolley, I-beam cable block, I-beam trolley, cable conductive trolley.

Name	Towing Trolley		Middle Trolley		End Trolley
Type	C32SC-75	C32SC-70	C32MC-70	C32EC-75
Wheels	Ball bearing, hardened, galvanized Temperature: -30°C to +125°C Traveling speed: 160m/min
Material	Body: steel, galvanized Support saddle: steel, galvanized Bumper: neoprence Dowel: Brass Hardware: galvanized Temperature resistance: -30°to +100°(80°, saddle ABS)			Carrier body: steel, galvanized Support saddle: steel, galvanized Dowel: Brass Hardware: galvanized Temperature resistance: -30°to +100°(80°, saddle ABS)
Max. cable load	25kg per carrier	22kg per carrier	22kg per carrier	25kg per carrier
Dim. of cable(mm)	75W*32	70W*32	70W*32	75W*32
Weight(kg)	0.59	0.55	0.32	0.37
Cat. -NO.	711101	711105	711205	711301

Related Products

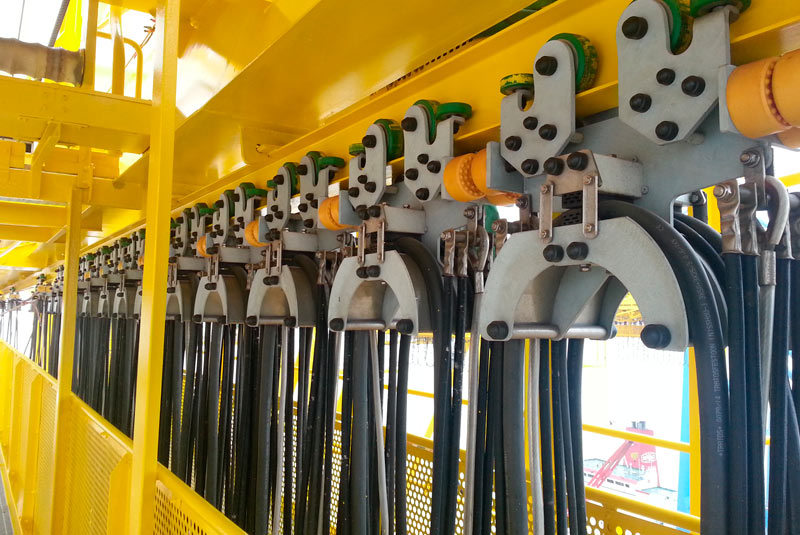

Application

Company Profile

WUXI KOMAY ELECTRIC EQUIPMENT CO., LTD. is a professional high and new tech enterprises in mobile electrification system field. Our major products are Single Pole Insulated Conductor Rails, Enclosed Conductor Rails, Copperhead Conductor Rails, Safety Power Rails, Multipolar Busbar, Busway Systems, Cable Trolleys, Cable Chains, ED Thruster, Electro-Hydraulic Drum Brake and more. The essential features of products are Compact arrangement, corrosion resistance, and simple assembly. The products is suitable especially for overhead and elongated tracks for cranes, monorails, port machines, stacking systems, as well as many other applications for supplying power to moving power loads. Our Products are certified by CE and export to Europe, America, Middle East, Africa, Southeast Asia etc. other country and area. Competitive price and High quality - All mobile electrification systems for you, We are sincerely looking forward to cooperating with you!

Packaging

KOMAY

Introducing the C30 Steel C Rail Crane Hoist Traveling Cable Trolley, the ultimate solution for your lifting needs. This durable and reliable cranes hoist cable trolley is designed to safely and efficiently transports heavy loads in industrial environments. Made from high-quality materials, the C30 Steel C Rail Crane Hoist Traveling Cable Trolley is built to last and withstand the harsh conditions of everyday uses.

Made with safety in mind. This KOMAY cable trolley is built to handle perhaps the heaviest lots, ensuring that your employees are always safe and secure using its sturdy steel construction. Furthermore, the trolley's compact design allows it to be easily maneuvered, which makes it ideal for usage in tight and spaces slim.

Famous for its dedication to quality, and the C30 Steel C Rail Crane Hoist Traveling Cable Trolley is no exclusion. Each trolley is meticulously crafted to meet with the highest requirements, ensuring that every product is of the quality is highest possible. This commitment to excellence has gained KOMAY a reputation as a brand is trusted the industry, and the C30 Steel C Rail Crane Hoist Traveling Cable Trolley isn't any exclusion.

Comes with a cost is competitive, making it a cost-effective solution for businesses of most sizes. Whether you are a company is small to update your lifting equipment or a large organization in need of reliable and durable machines, KOMAY's C30 Steel C Rail Crane Hoist Traveling Cable Trolley is an ideal product for your organization.

The KOMAY C30 Steel C Rail Crane Hoist Traveling Cable Trolley is a top-of-the-line products that simply cannot be beaten. with its sturdy steel constructions, compact design, and commitments to quality, this cable trolley is the perfect solutions for your lifting needs. Don't settle for less invest in the KOMAY C30 Steel C Rail Crane Hoist Traveling Cable Trolley today and see the difference for yourself.
