KOMAY C30 Festoon System C-track Cable Middle Trolleys for Crane

Products Description

Komay C-track Cable Trolley System Cable Festoon System Cable Trolley is a conductive form of power supply for the crane trolley. It consists of a walking wheel, a bracket and a supporting plate. The flexible cable is fixed on the supporting plate. The traction frame and the I-steel cable pulley are synchronized to achieve the purpose of cable power trolley. Cable trolley is also called cable block, cable pulley, cable rail trolley, cable block trolley, I-beam cable block, I-beam trolley, cable conductive trolley.

Name	Towing Trolley			Middle Trolley		End Trolley
Type	C32SC-75	C32SC-70	C32MC-75	C32MC-70	C32EC-75	C32EC-70
Wheels	Ball bearing, hardened, galvanized Temperature: -30°C to +125°C Traveling speed: 160m/min
Material	Body: steel, galvanized Support saddle: steel, galvanized Bumper: neoprence Dowel: Brass Hardware: galvanized Temperature resistance: -30°to +100°(80°, saddle ABS)				Carrier body: steel, galvanized Support saddle: steel, galvanized Dowel: Brass Hardware: galvanized Temperature resistance: -30°to +100°(80°, saddle ABS)
Max. cable load	25kg per carrier	22kg per carrier	30kg per carrier	22kg per carrier	25kg per carrier	22kg per carrier
Dim. of cable(mm)	75W*32	70W*32	75W*32	70W*32	75W*32	70W*32
Weight(kg)	0.59	0.55	0.41	0.32	0.37	0.31
Cat. -NO.	711101	711105	711201	711205	711301	711305

Related Products

Application

Company Profile

WUXI KOMAY ELECTRIC EQUIPMENT CO., LTD. is a professional high and new tech enterprises in mobile electrification system field. Our major products are Single Pole Insulated Conductor Rails, Enclosed Conductor Rails, Copperhead Conductor Rails, Safety Power Rails, Multipolar Busbar, Busway Systems, Cable Trolleys, Cable Chains, ED Thruster, Electro-Hydraulic Drum Brake and more. The essential features of products are Compact arrangement, corrosion resistance, and simple assembly. The products is suitable especially for overhead and elongated tracks for cranes, monorails, port machines, stacking systems, as well as many other applications for supplying power to moving power loads. Our Products are certified by CE and export to Europe, America, Middle East, Africa, Southeast Asia etc. other country and area. Competitive price and High quality - All mobile electrification systems for you, We are sincerely looking forward to cooperating with you!

Packaging

 KOMAY

The C30 Festoon System C-track Cable Middle Trolleys for Crane is a top-of-the-line product designed to provide reliable and efficient operation to your crane system. The brand is well-known for delivering high-quality products that exceed customer expectations. with the C30 Festoon System, you can expect nothing less than superior quality, durability, and exceptional performance.

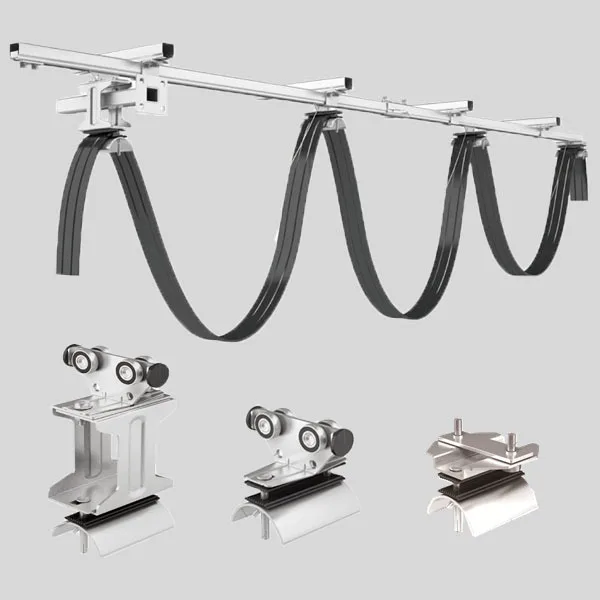

An operational system that delivers ways to manage the cables who supply energy and control signals to your crane. The device is made up of C track, is installed on the crane framework, and a trolley that moves across the track, carrying the cables. The trolley could be the center trolley aided by the KOMAY C30 Festoon System.

Designed for use within harsh environments. It is constructed with tough materials that can withstand the rigors of industrial settings. The middle trolleys are constructed with high-grade aluminum, lightweight yet strong enough to put up cables being hefty. The  KOMAY trolley wheels are available in durable materials that can manage heavy loads and rates high.

Simple to install and maintain. The trolleys middle be easily mounted on the C track, the cables can be simply connected to the trolley. The trolleys will be very easy to clean and lubricate, ensuring operation is smooth all times. The device can be designed to be eco-friendly, with elements effortlessly recycled.

A reliable and way is efficient manage cables for your crane system. The machine means that the cables stay arranged and protected, reducing the possibility of damage and downtime is minimizing. with all the KOMAY C30 Festoon System, you could expect increased productivity, improved security, and reduced upkeep expenses.

The KOMAY C30 Festoon System C-track Cable Middle Trolleys for Crane is an excellent investment for any industrial setting that requires crane operations. Trust KOMAY to provide you with the best quality festoon system for your crane.
