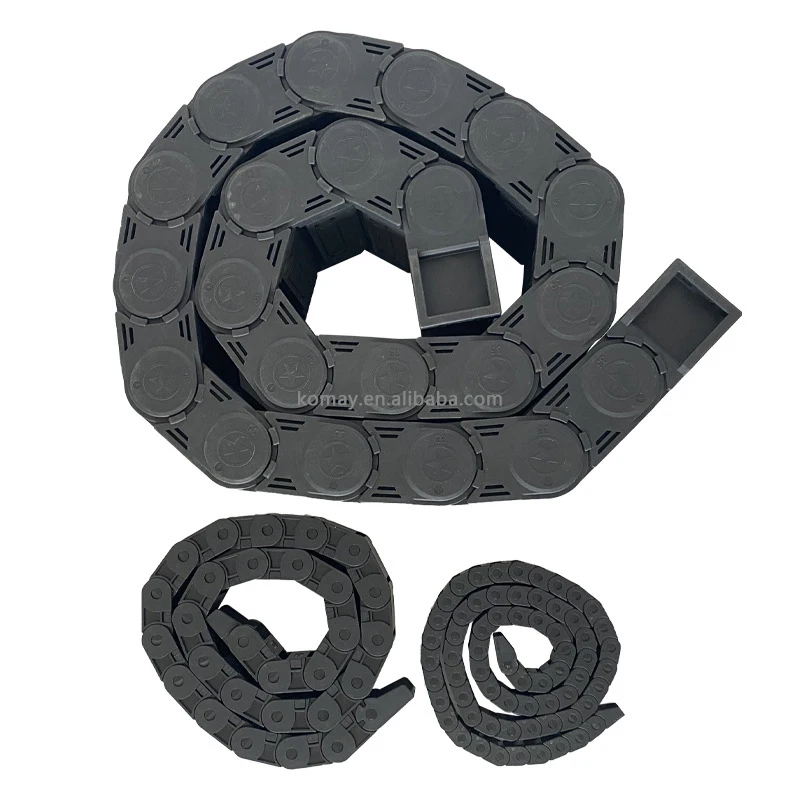

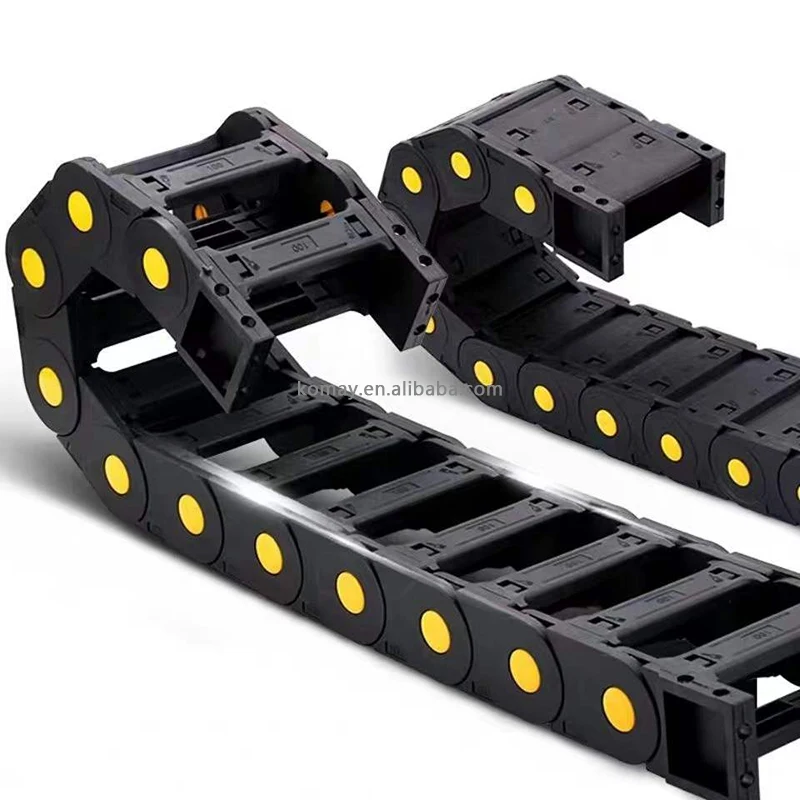

Bridge Type Protective Plastic Cable Chain/ Plastic Cable Tray/ Cable Tray Chain

Products Description

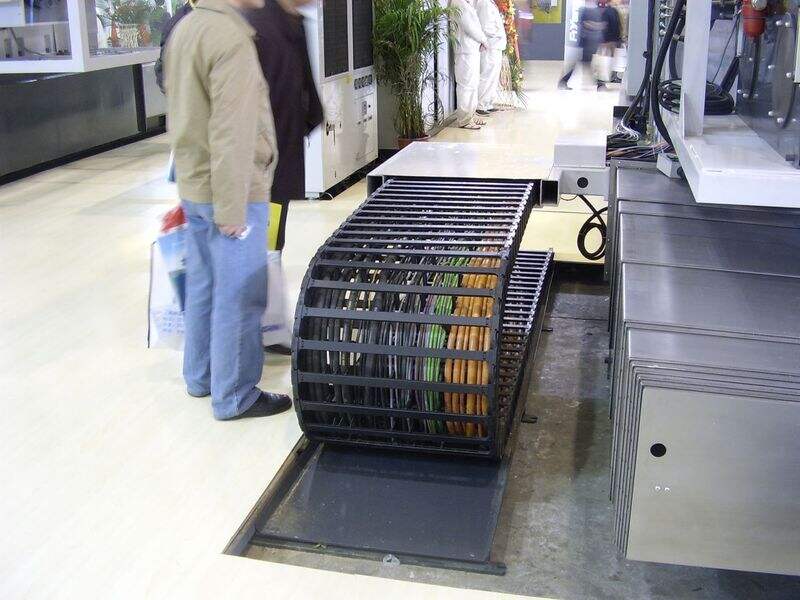

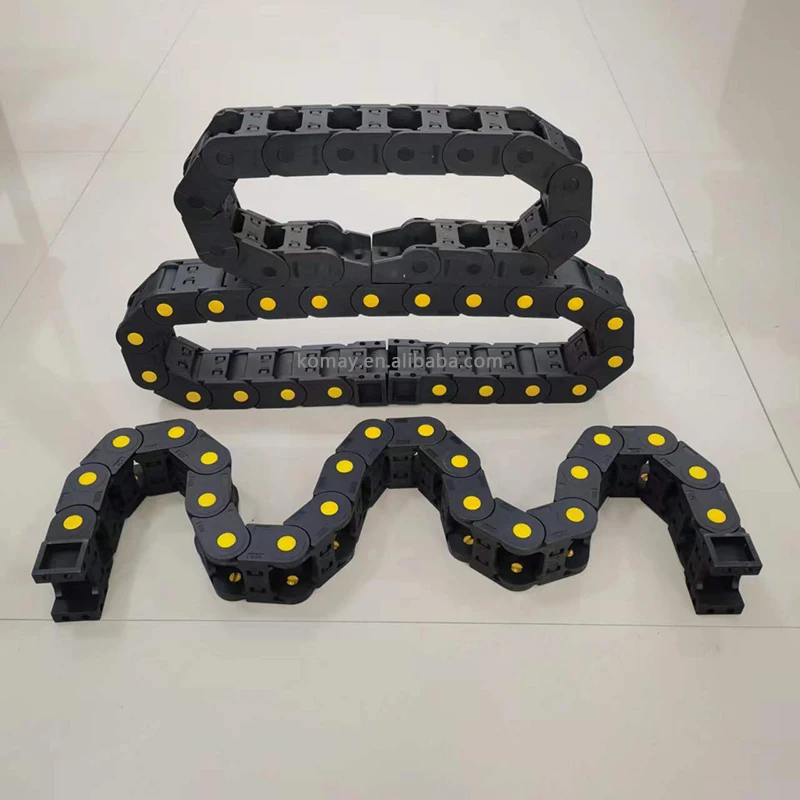

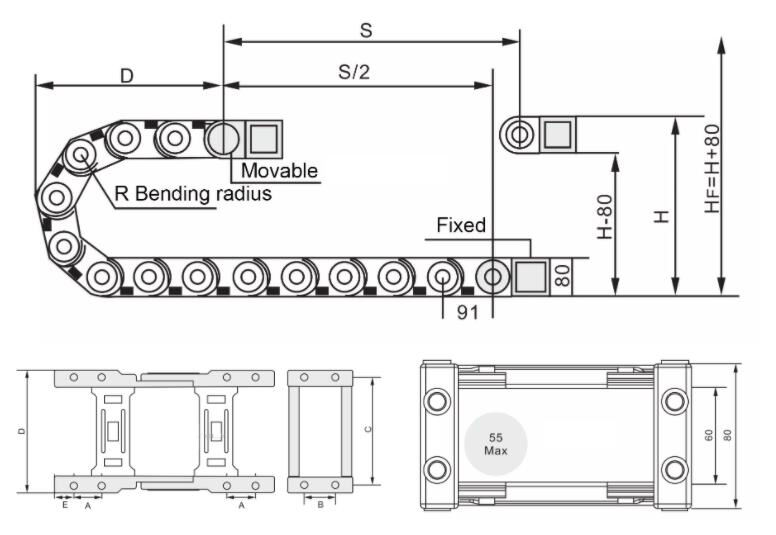

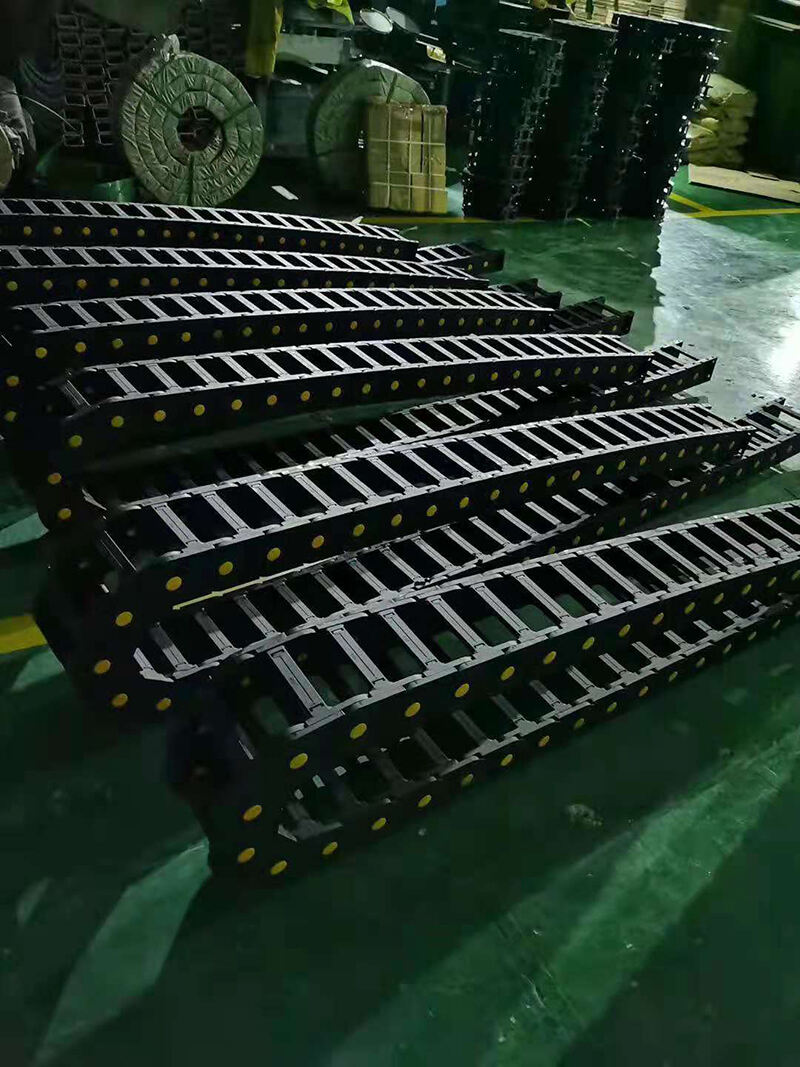

Features and Applications: Cable towline is suitable for use in the occasion of the reciprocating movement. It can tow and protect the built-in cable, tubing and pipe. Each section of towline can be open. Easy installation and maintenance. Quiet running, wear-resistant and high-speed movement. Structure: Looks like tanks chain, towline consists of many unit links which can move smoothly. The same series towline have the same inner high, outer high and pitch, but the chain width and bend radius can be different. Unit chain consists of left and right chain plate and upper and lower cover. Each section can be open. After opening the cover, we can put the cable, tubing and pipe into the towline.

Self Adjustment

The length of the drag chain can be adjusted as required.

Series	Inner high (mm)	Inner Width (mm)	Outer High (mm)	Outer Width (mm)	Radius (mm)	Pitch (mm)	Max Stroke (m)
K10	10	10 15 20

65

14	18 23 38	18 28 38	20	60
K15	15	20 30 40 50	20	28 38 48 58	28 38 48	20	75
K18	18	18 25 37 50	23	29 36 48 61	28 38 48 75	30	85
K25	25	38 57 77 103	40	58 77 97 123	38 55 75 100 125	45	100
K38	38	50 75 100 125 150 175 200 250	57	77 102 127 152 177 202 227 277	75 100 125 150 200 250	56	150
K49	49	50 75 100 125 150 175 200 250 300	67	78 103 128 153 178 203 228 278 328	100 125 150 200 250 300	67	150
K55	55	100 125 150 200 250 300 350 400	75	131 156 181 231 281 331 381 431	100 125 150 200 250 300 350 400	91	180
K65	100 125 150 200 250 300 350 400	85	134 159 184 234 284 334 384 434	100 125 150 200 250 300 350 400	91	200
K80	80	100 125 150 200 250 300 350 400	106	144 169 194 144 294 344 394 444	100 125 150 200 250 300 350 400	91	200

The Bridge Type Protective Plastic Cable Chain coming from KOMAY is an outstanding item towards safeguard and arrange cable televisions in your work area. Made from top quality plastic, this cable chain is resilient and might endure hefty use over a prolonged opportunity framework.

The plastic cable style allows you quickly handle cable televisions and maintain all of them in setting. No more clutter is entangled of in your work desk or even floor covering. You might utilize this cable tray chain towards organize energy cable televisions, ethernet cable televisions, USB cable televisions, and lots of various other points.

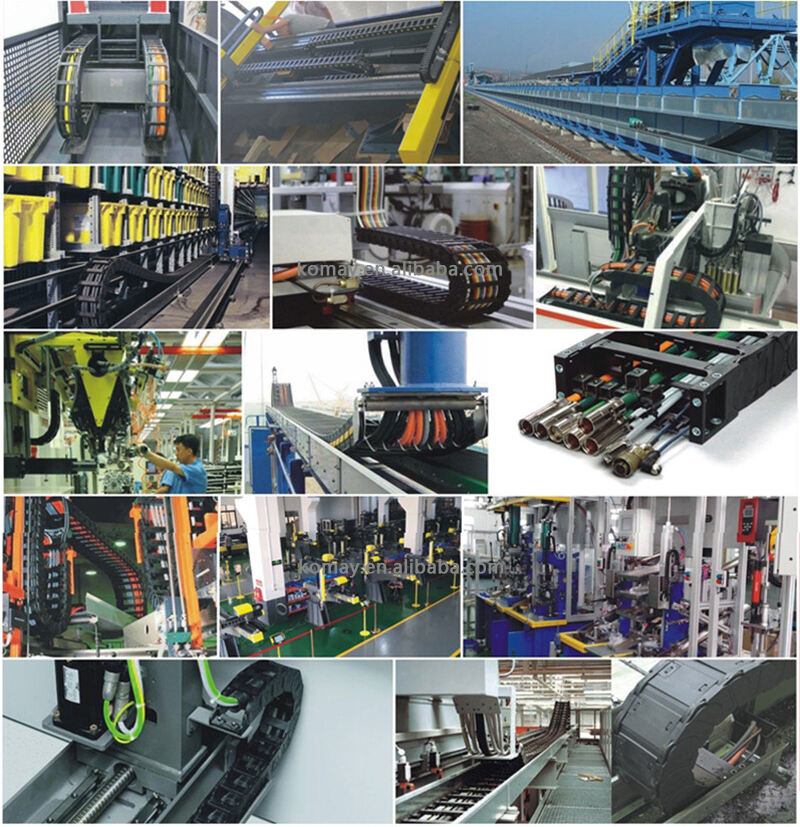

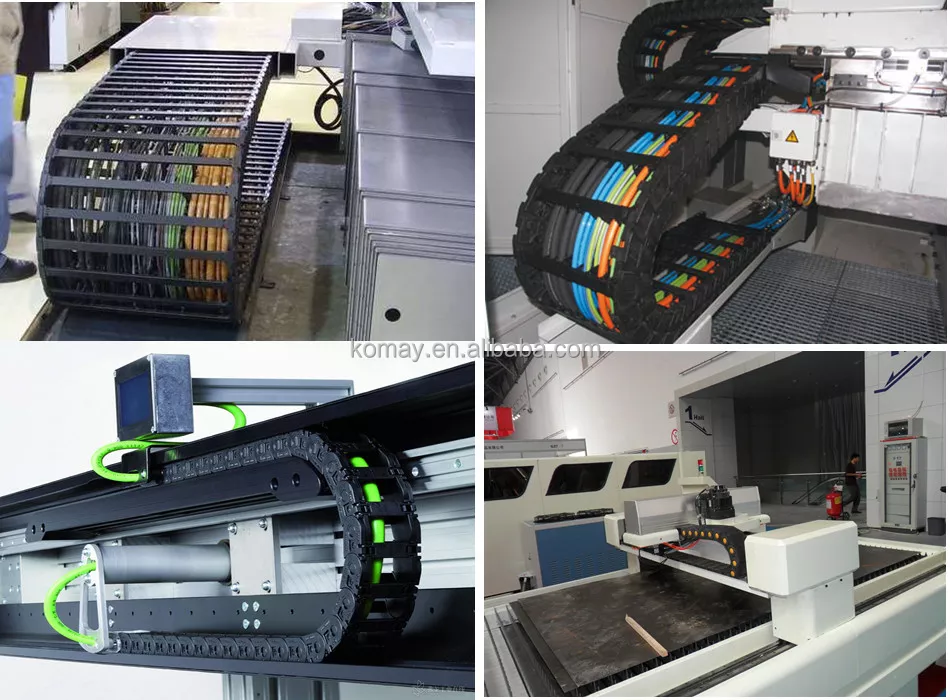

The plastic style likewise provides an also of security versus use and tear that can happen due to use is significant. Perfect for above requests. You can quickly set up this chain in bridges, cranes, robotics, in addition to various other devices is significant safeguard cable television’s coming from being subjected towards severe environments and have all of them risk-free coming from hurt.

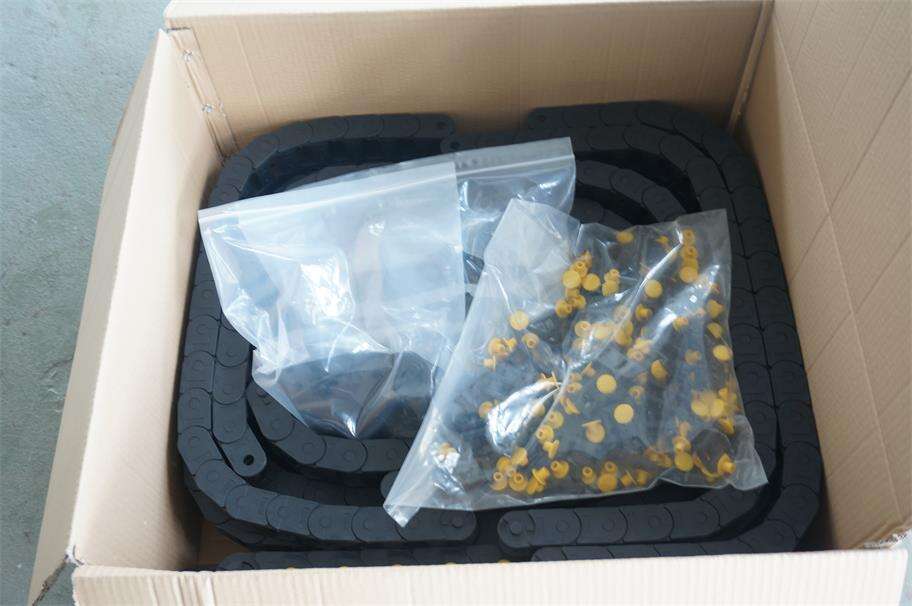

The bridge type style likewise allows you steadfastly continue along with and repair cable televisions without any require for comprehensive dismantling of devices. Created towards be easy to use. You can set up this cable tray chain without any require for unique devices or even abilities. The chain includes the equipment is important consisting of installing screws and braces. You will just connect the string for your work area or even devices and begin organizing your cable televisions within a couple of mins.

Available in various dimensions and sizes towards suit your specific requirements. You will choose coming from various widths and elevations towards sustain the amount and dimensions of cable televisions you have to arrange. Fit towards a great deal of various cable kinds, to ensure that you do not have towards trouble around compatibility problems.

Do not hang around any type of much a lot longer, purchase the KOMAY Bridge Type Protective Plastic Cable Chain today and begin experiencing the fantastic aspects of a safeguarded workspaces and orderly.
