KOMAY

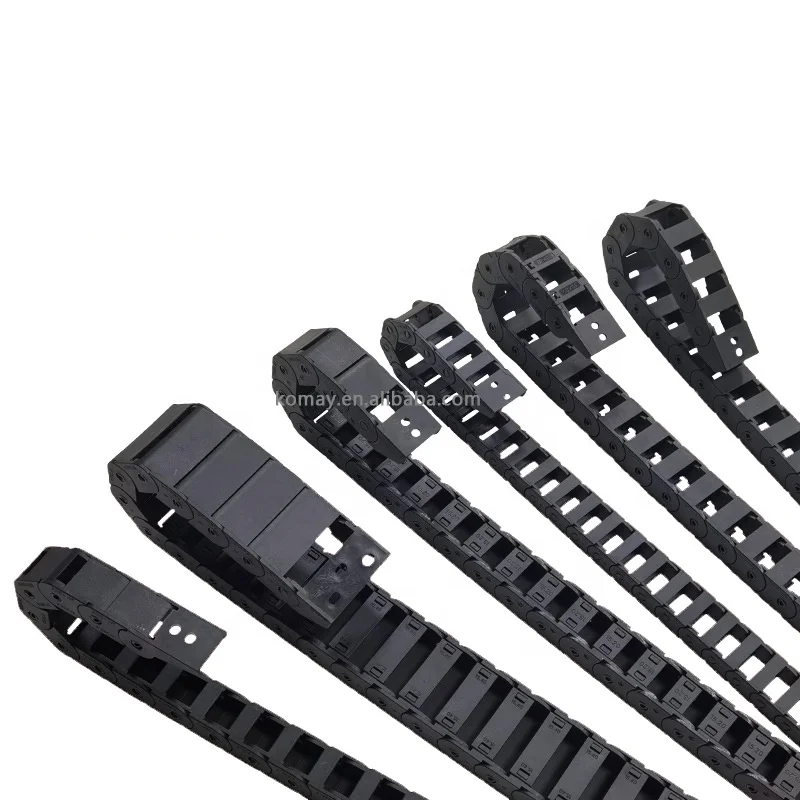

The 20Series nylon PA66 bridge type open plastic cable chain for CNC machine could be the solution perfect CNC device cable administration. The string is made of top-notch KOMAY nylon PA66 material, that means it is very durable and resistant to wear and tear. The chains are created to protect cables and hoses from abrasion, while tangling preventing that may end up in high priced downtime.

The available design of the connection kind cable synthetic provides comfortable access for cable or hose upkeep, rendering it ideal for CNC routers, lathes, milling devices or virtually any industrial equipment with going components. The string is equipped to manage both electric and cables and hydraulic hoses, and it will be effortlessly set up about the machine sleep or perhaps the rest for the device.

The 20 Series nylon PA66 bridge type open plastic cable chain for CNC machine is engineered to manage lots being hefty. The string links and bones are made in a manner that distributes the extra weight evenly, ensuring trend smooth no obstructions. This improves the performance general of device, causing increased efficiency notably less downtime.

Products Description

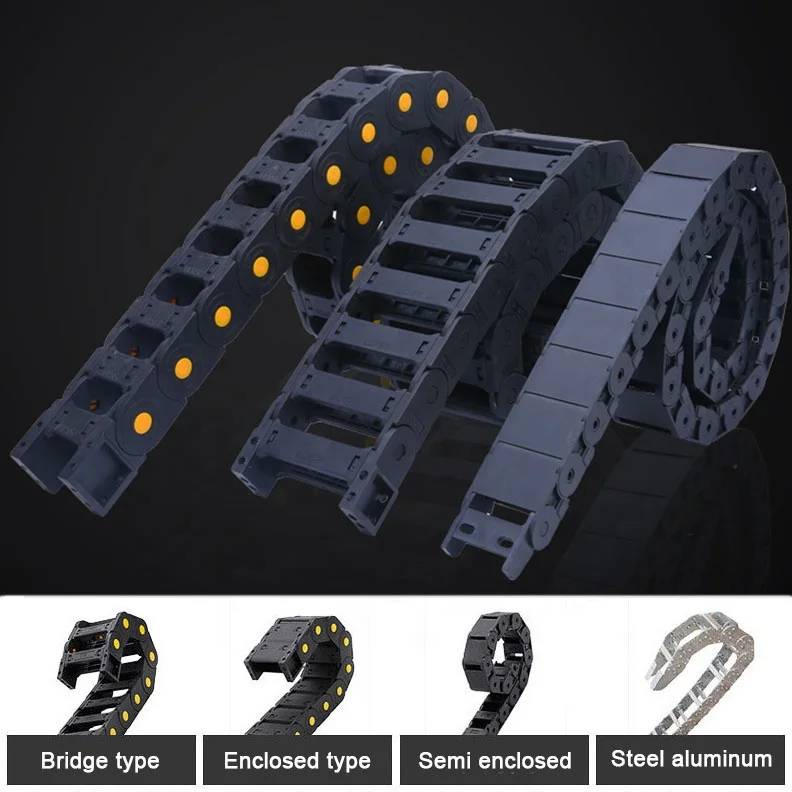

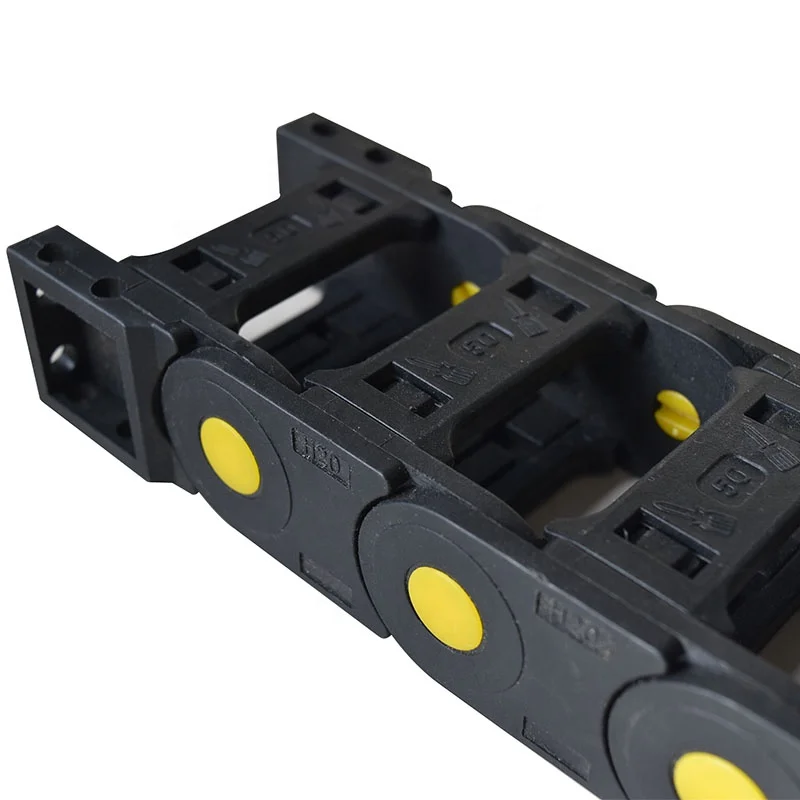

Features and Applications: Cable towline is suitable for use in the occasion of the reciprocating movement. It can tow and protect the built-in cable, tubing and pipe. Each section of towline can be open. Easy installation and maintenance. Quiet running, wear-resistant and high-speed movement. Structure: Looks like tanks chain, towline consists of many unit links which can move smoothly. The same series towline have the same inner high, outer high and pitch, but the chain width and bend radius can be different. Unit chain consists of left and right chain plate and upper and lower cover. Each section can be open. After opening the cover, we can put the cable, tubing and pipe into the towline.

Self Adjustment

The length of the drag chain can be adjusted as required.

Series	Inner high (mm)	Inner Width (mm)	Outer High (mm)	Outer Width (mm)	Radius (mm)	Pitch (mm)	Max Stroke (m)
K10	10	10 15 20	14	18 23 38	18 28 38	20	60
K15	15	20 30 40 50	20	28 38 48 58	28 38 48	20	75
K18	18	18 25 37 50	23	29 36 48 61	28 38 48 75	30	85
K25	25	38 57 77 103	40	58 77 97 123	38 55 75 100 125	45	100
K38	38	50 75 100 125 150 175 200 250	57	77 102 127 152 177 202 227 277	75 100 125 150 200 250	56	150
K49	49	50 75 100 125 150 175 200 250 300	67	78 103 128 153 178 203 228 278 328	100 125 150 200 250 300	67	150
K55	55	100 125 150 200 250 300 350 400	75	131 156 181 231 281 331 381 431	100 125 150 200 250 300 350 400	91	180
K65	65	100 125 150 200 250 300 350 400	85	134 159 184 234 284 334 384 434	100 125 150 200 250 300 350 400	91	200
K80	80	100 125 150 200 250 300 350 400	106	144 169 194 144 294 344 394 444	100 125 150 200 250 300 350 400	91	200
