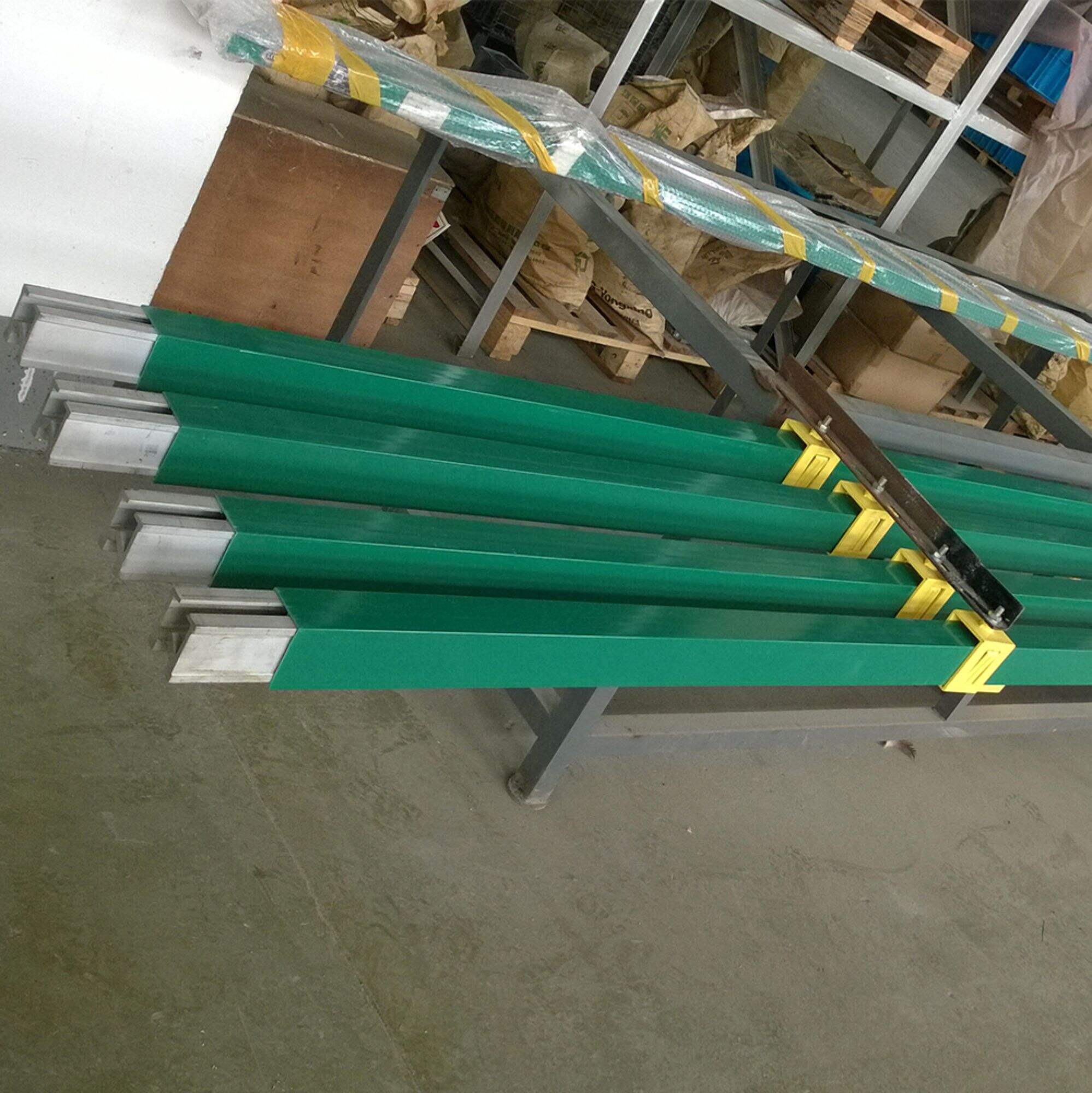

●JDC-W single insulated conductor rail system is a modern mobile power supply system.
●The conductor rail material is copper(200A-5000A), aluminium(150a-3000A).

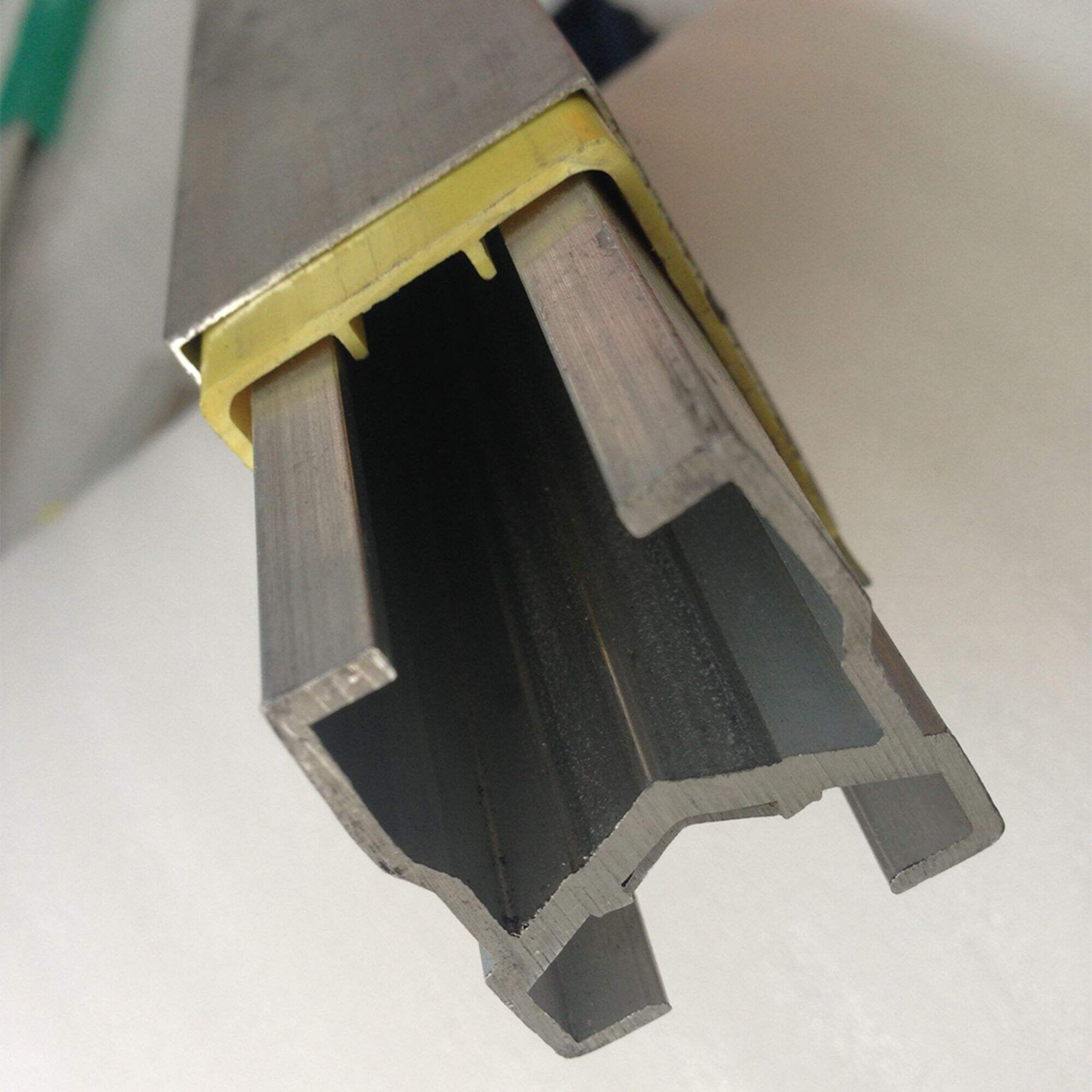

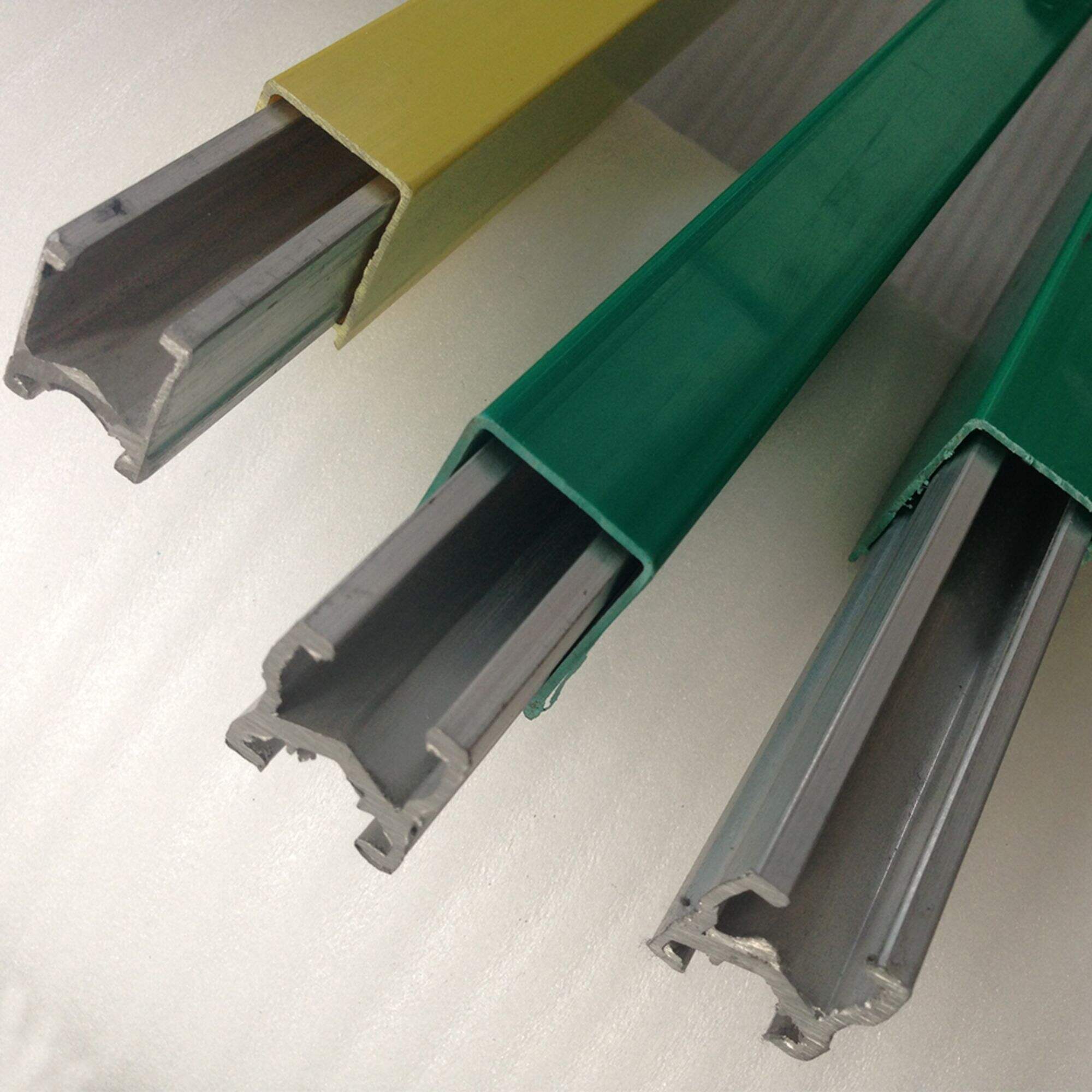

●The aluminium conductor rail is provided with a proven and patented stainless steel contact surface. Any numbers of poles can be installed vertically or horizontally, on straight or curved systems.

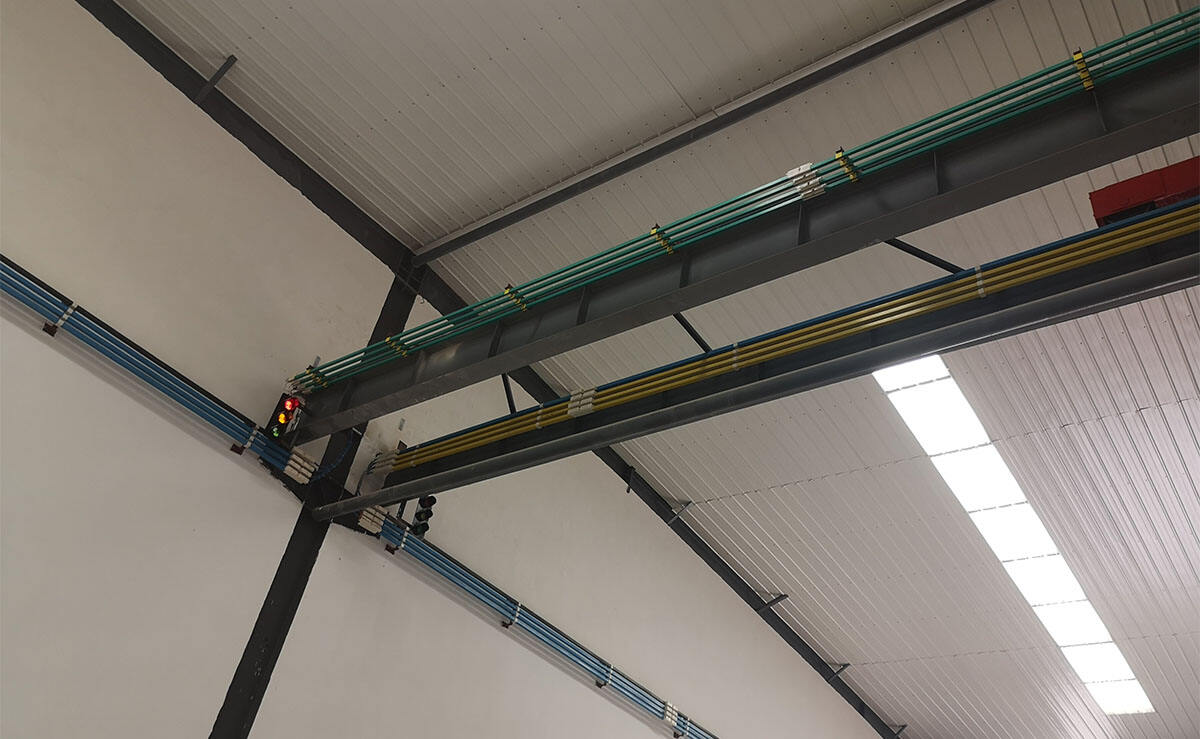

●The conductor rail system can be installed indoor or outdoor.
●Temperature insulation from lower -40 to +115℃.
●Type-R:Curves for R≥1200mm.
●Approved and listed by : CCC, ISO9001 and CE.

Technical Data

Conductor Rail System:Program JDC-W

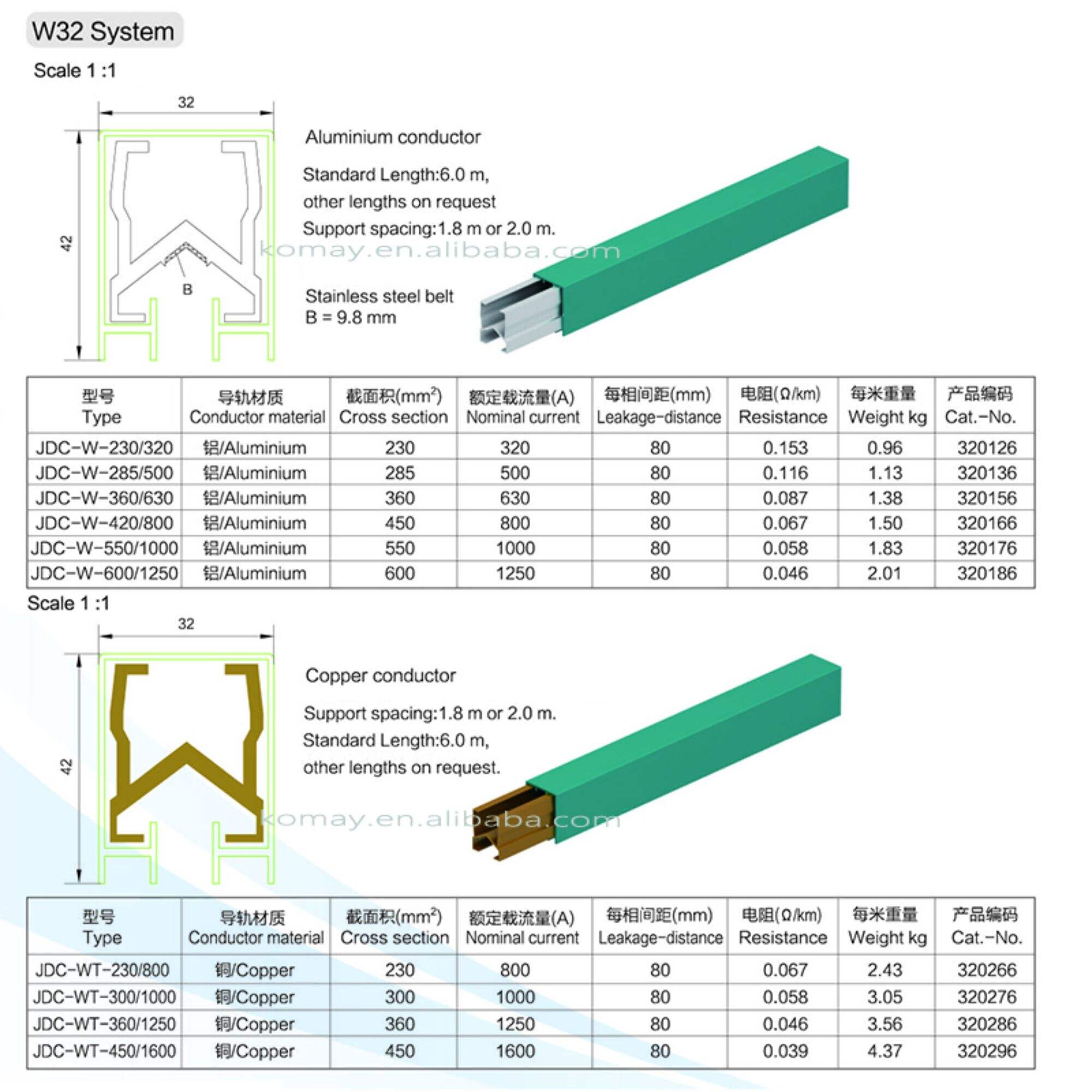

Conductor Rail	Aluminium				Copper
Type	W24	W32	W35	W52	W24	W32	W52
Nominal Current	250-300A	320-1250A	230-800A	1250-3000A	500-800A	800-1600A	1250-5000A
Support Spacing	1.5m	1.8m	1.8m	2.0m	1.5m	1.8m	2.0m
Rail Lenght	6.0m	6.0m	6.0m	6.0m	6.0m	6.0m	6.0m
Housing Lenght	5.88m	5.83m	5.83m	5.75m	5.88m	5.83m	5.75m
Max. Voltage	690V
Travelling Speed	≤600m/min

Insulation Housing

Generally, the housing line is in green and ground line in yellow-green. Standardlength is 4m or 6m, other sections are available.

Current Collector

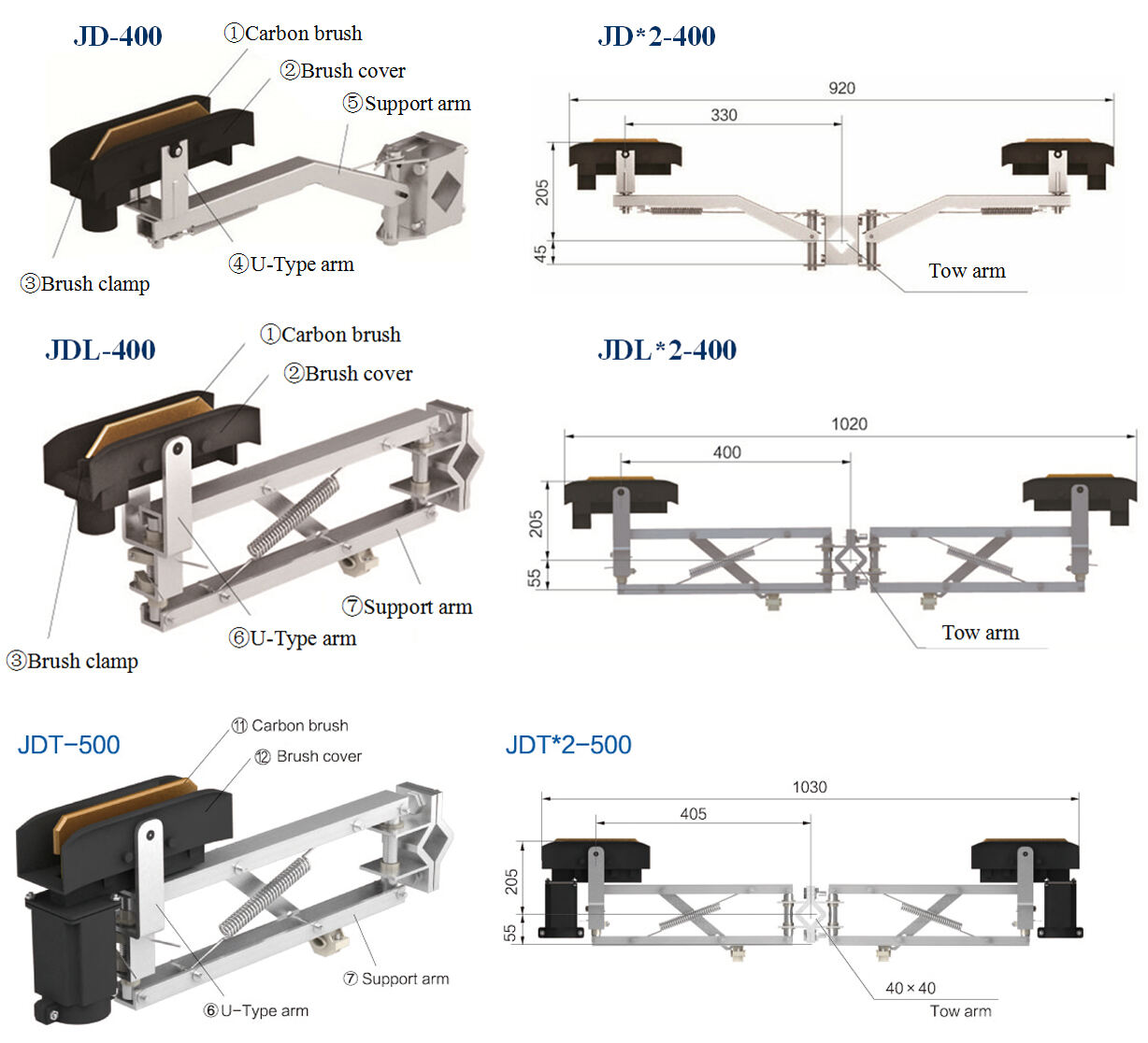

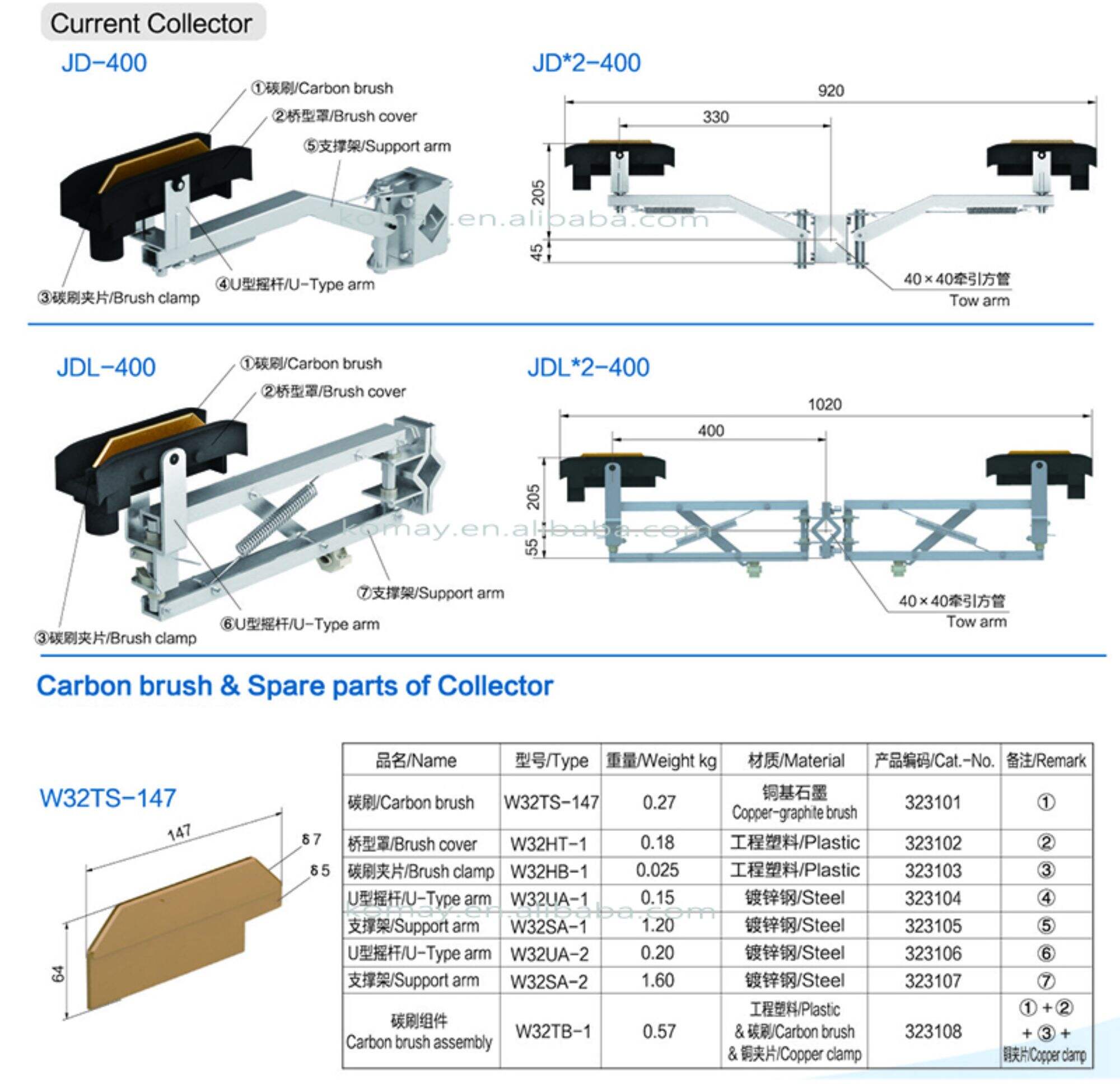

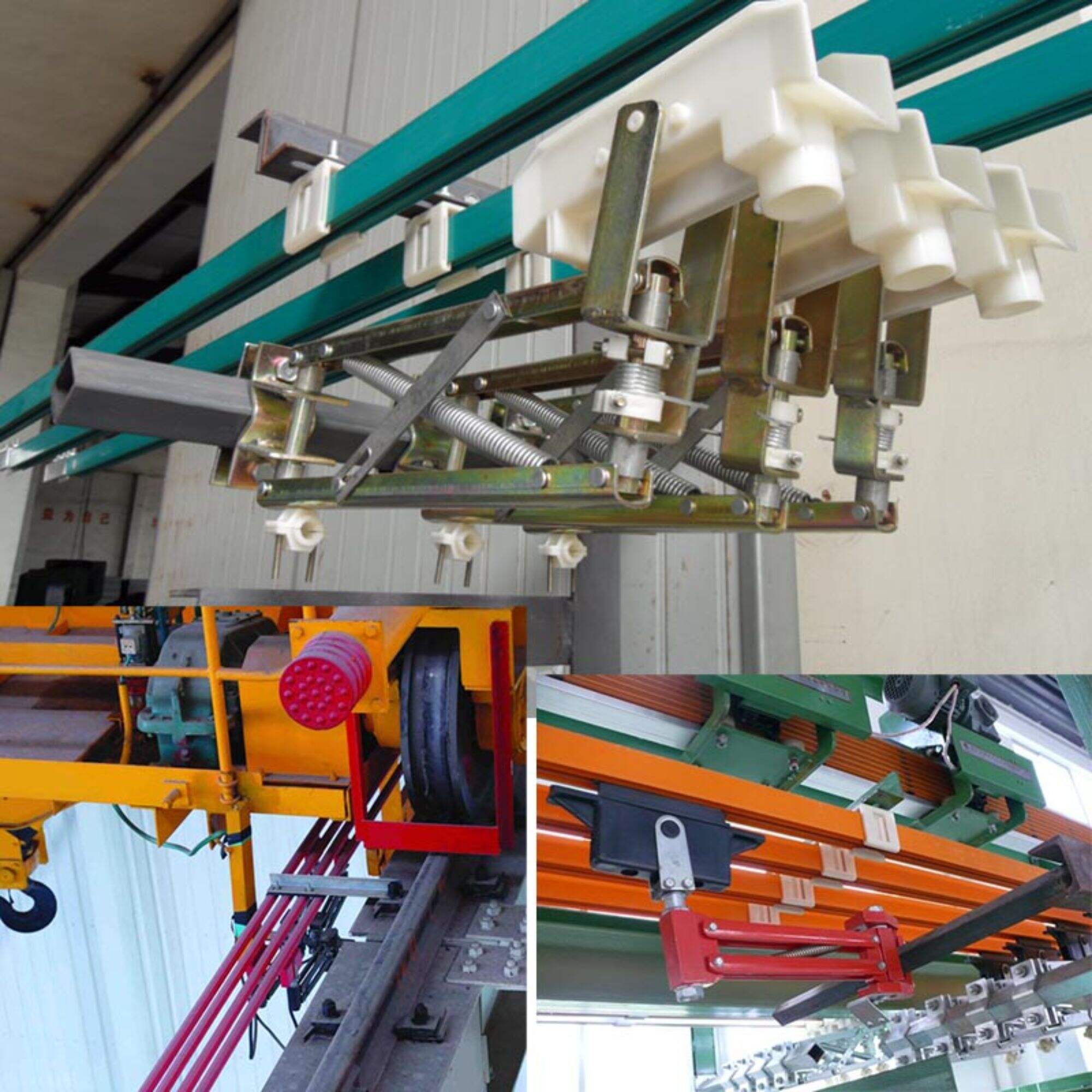

The current collectors are made of carbon brush, reinforced nylon and galvanized or spray-paint metal material. Spring loaded carbon brushes maintain uniform contact. Connecting cables and hinged or flexible towing arms included. Double current collectors for transfer applications and higher amperage.

Joints

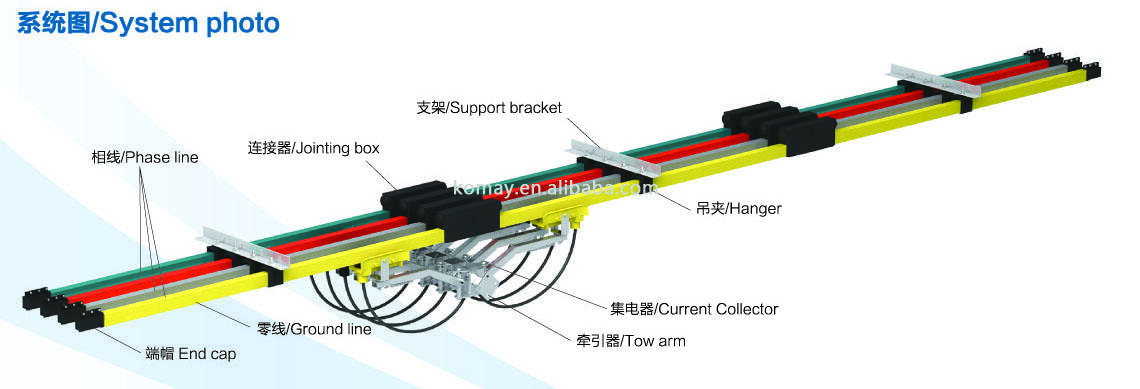

Snap-in joint splices provide mechanical and electrical continuity. Insulated protection covers are included.

Feed Sets

End feeds or line feeds are available.

End Caps

The open ends of the conductor are closed by end caps.

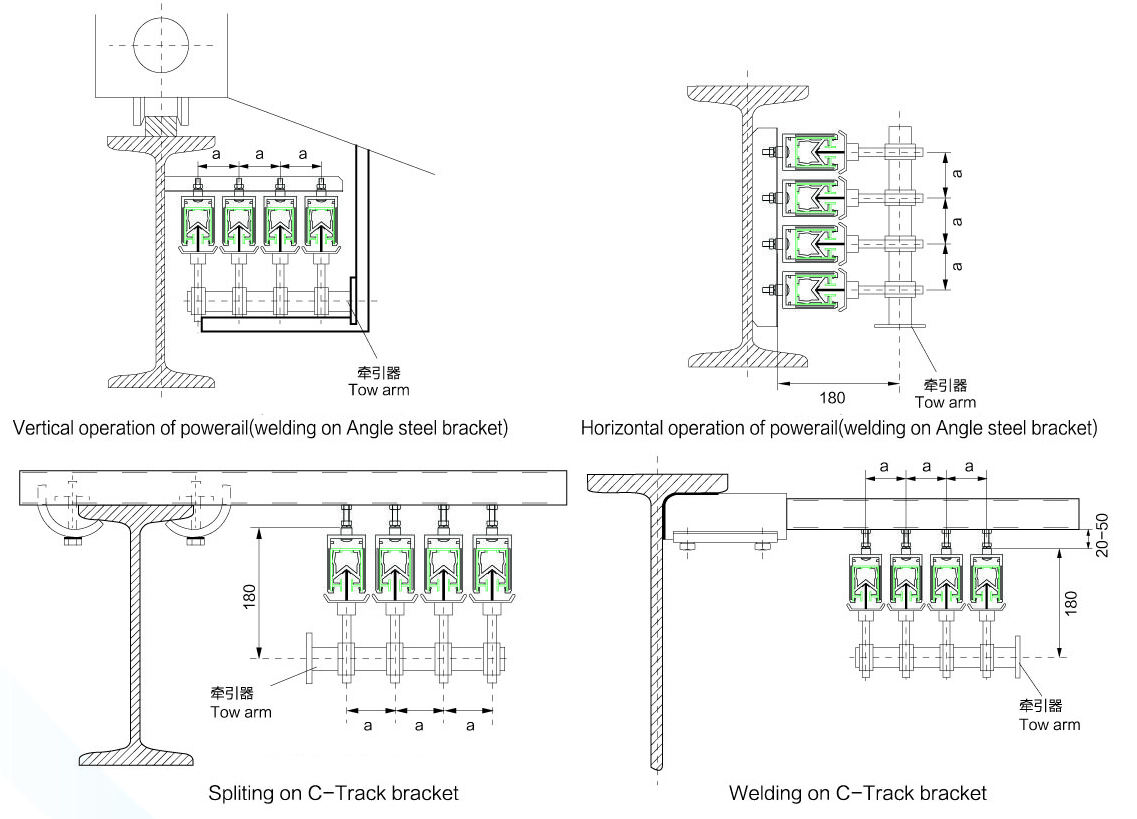

Hangers

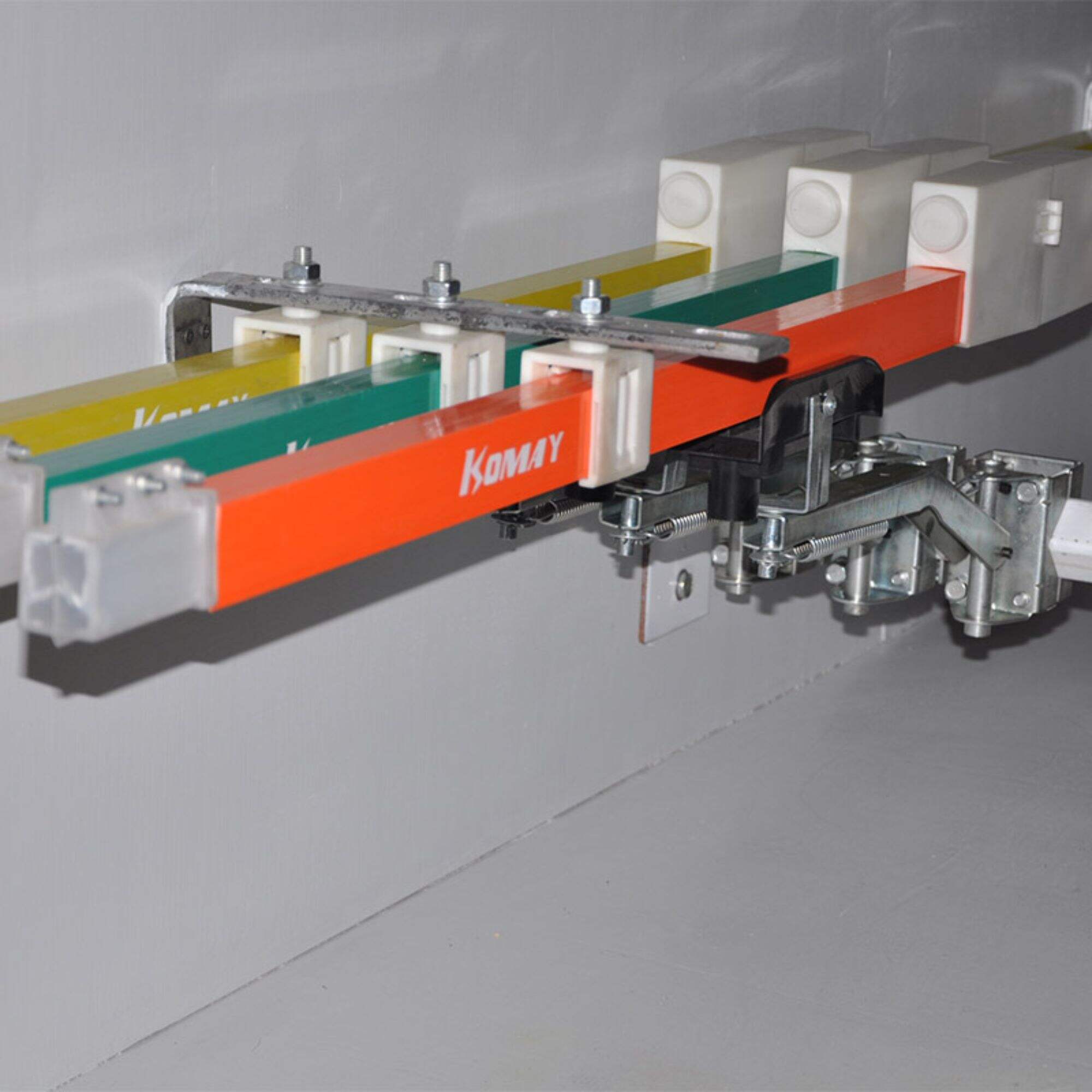

Standard brackets for conductor attachment to crane girders are available. Conductor is with sliding and fix point hangers. Standard distance between suspension appoints for indoor and outdoor installations: 1500mm to 2000mm.
