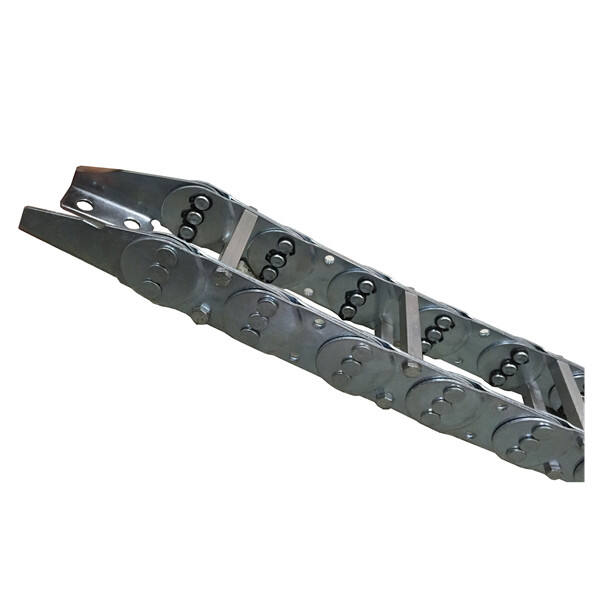

KOMAY Hose Support Steel Cable Drag Chain Metal Cable Carrier Chain for CNC Machine

Products Description

Features and Applications: Cable towline is suitable for use in the occasion of the reciprocating movement. It can tow and protect the built-in cable, tubing and pipe. Each section of towline can be open. Easy installation and maintenance. Quiet running, wear-resistant and high-speed movement

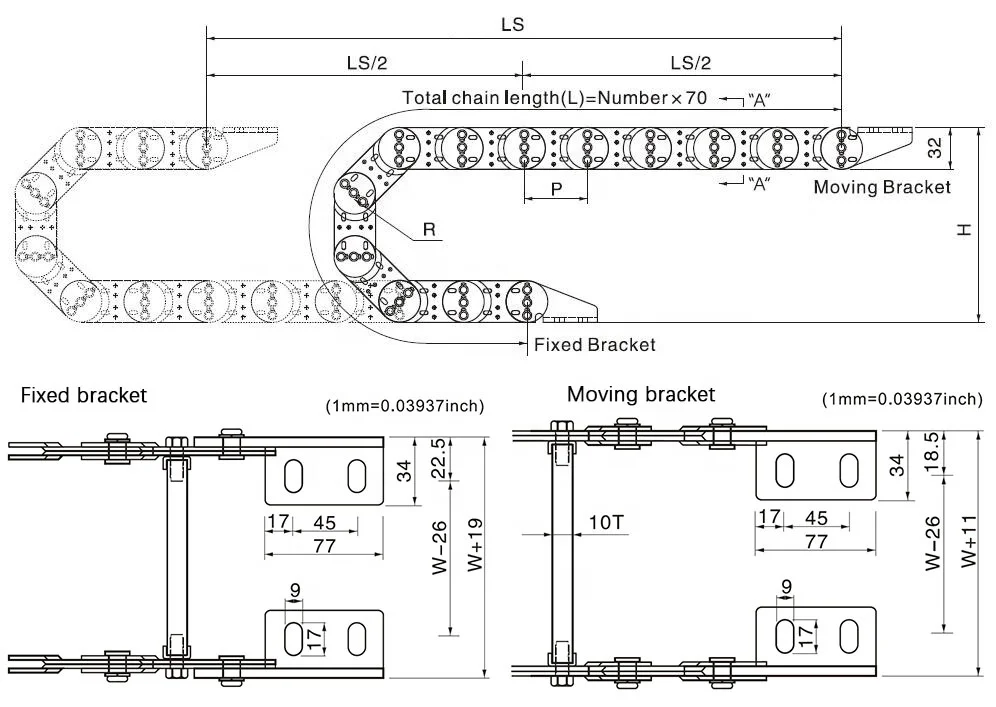

Structure: Looks like tanks chain, towline consists of many unit links which can move smoothly. The same series towline have the same inner high, outer high and pitch, but the chain width and bend radius can be different. Unit chain consists of left and right chain plate and upper and lower cover. Each section can be open. After opening the cover, we can put the cable, tubing and pipe into the towline

75-250

Model	Inner width	Inner height	Outer width	Outer height	Bending radius	Bridge / enclosed
TL30	10-15	10	33-38	26	40	no
TL45	25-100	10	47-174	30	50	no
TL50	25-100	17	47-174	35	50	no
TL65	25-250	25	47-280	44	75-185	no
TL75	30-300	30	52-330	50	yes R>100
TL80	30-300	34	52-330	56	75-250	no
TL95	50-350	50	75-380	70	115-400	no
TL100	50-350	50	75-380	75	115-400	yes R>145
TL115	60-350	60	85-380	85	125-450	no
TL125	60-500	68	85-380	100	180-700	yes R>200
TL155	80-500	90	110-530	120	200-700	no
TL180	80-800	110	120-840	144	200-1000	yes R>200
TL225	100-800	170	140-840	200	250-1000	no
TL250	100-1000	190	140-1050	220	300-1000	no

Application

Company Profile

Packaging

KOMAY

Is proud to supply their Hose help Steel Cable Drag Chain Metal Cable Carrier Chain for CNC Machines. This cable is system that revolutionary made out of a durable metal construction, rendering it your best option for heavy-duty applications. The cable drag string is engineered to keep cables and hoses organized and protected from harm whilst in use.

Built to offer security is maximum cables are making particular hoses remain in place and do not be tangled. The sequence consists of certain links that could be effortlessly closed and exposed. This could ensure it is a task that easy add or eliminate cables and hoses as required. The steel cable provider sequence may be made with fasten keeps the links securely closed, preventing any disengagement is accidental.

Durable and strong. The steel framework offers opposition is materials are superior could be corrosive making sure the sequence may be used in harsh surroundings without deteriorating or wearing down. Also, the drag string was made to withstand high conditions, which makes it an alternative is use that great commercial settings where items are creating temperature is high.

Flexible. The sequence can be employed having a variety is wide of products, including lathes, routers, and mills. It is usually found that appropriate other applications such as 3D printers, welding products, and robotics.

Installing and make use of making simple. Just cables hoses that are being could be thread the available links and snap they closed using the fastener. This means probably the longest, heaviest cables is safely and securely held set up. Could possibly be constructed with a design is flexible and will fold and move as a result of the device since it runs.

Order the Hose Support Steel Cable Drag Chain Metal Cable Carrier Chain for CNC Machine and have the quality and functionality that KOMAY is renowned for today.
