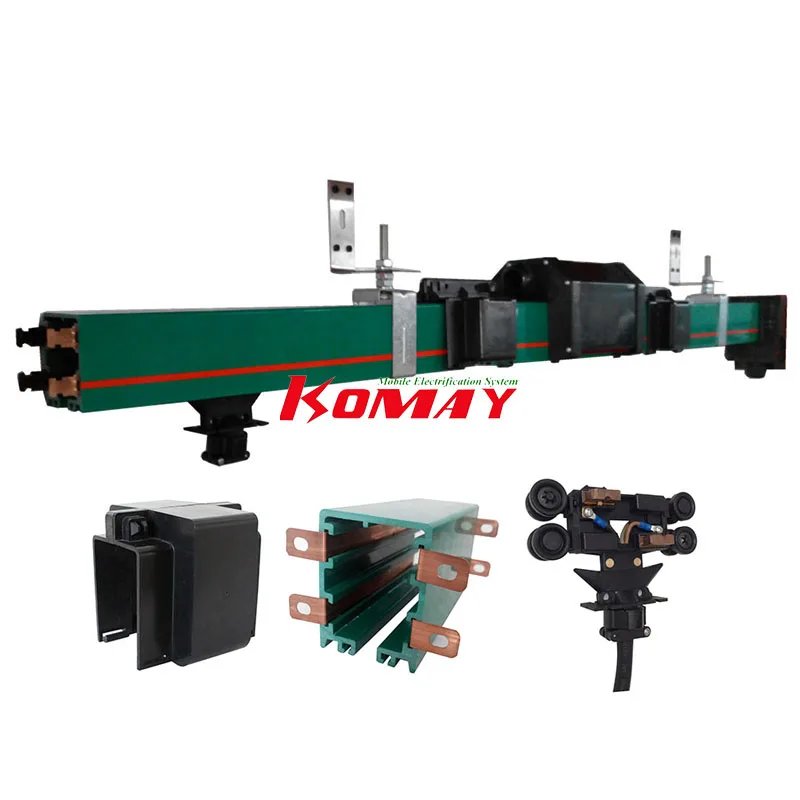

KOMAY Crane Insulation Busbar Power Rail Enclosed Conductor Bar Systems

Products Description

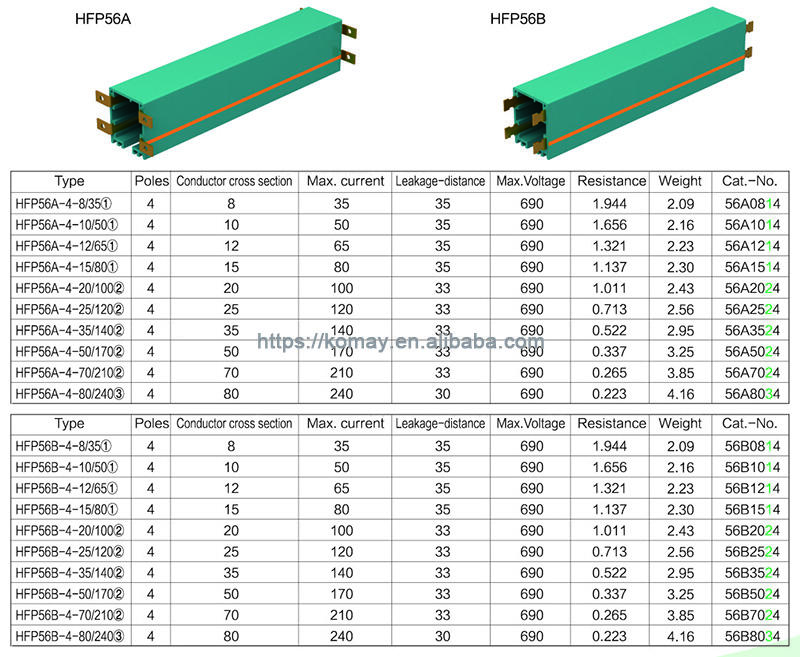

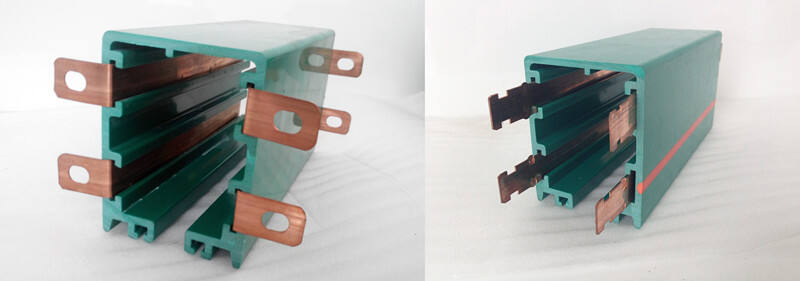

Powerail Enclosed conductor rail system is a powerful, protected from contact(IP23), for indoor and outdoor plants. They are conductor lines in a rigid green PVC housing with different copper cross sections for rated currents of 35-240A. Type HFP-P: not include Sealing strip, with factory-mounted flat copper band and bolted-operated plug connectors. Type HFP-R: Curves for R≥800mm, with factory-mounted flat copper band and screw connectors. Approved and listed by: CCC, ISO9001 and CE.

Poles	4P/customizable
Width for Copper	1: 14.5mm   2: 17.6mm   3: 21.0mm
Length	Standard length: 4m, customizable, but not more than 6m
Curves	Min800mm
Support Spacing	For straight runs1.2m

Related Products

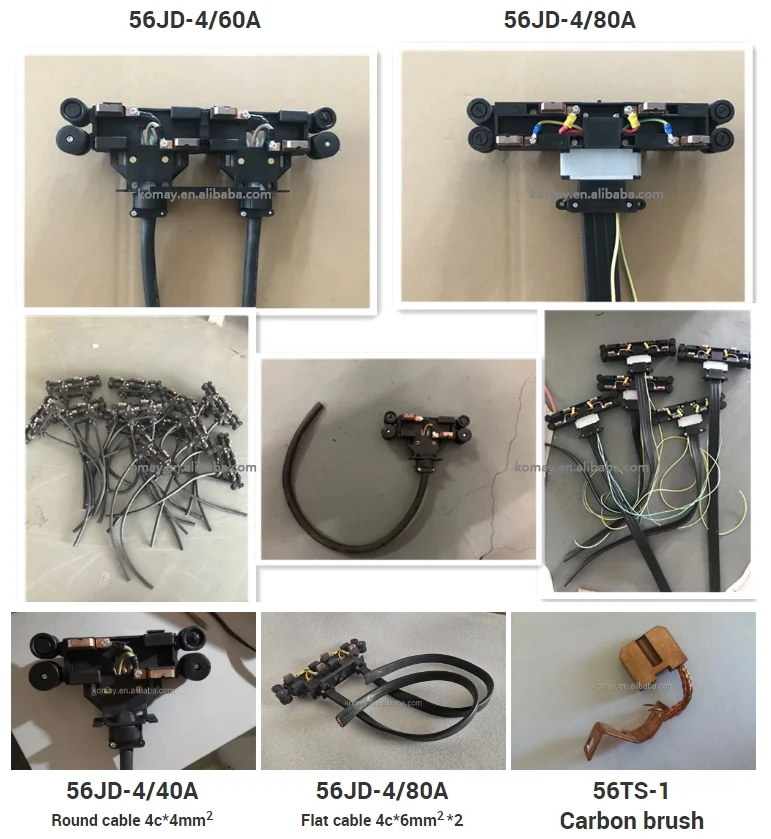

Current Collector

Type	Weight (kg)	Poles	Power rating	Cat. -No.
56JD-4/25	0.65	4	25A	563125
56JD-4/40	0.70	4	40A	563140
56JD-4/60	1.35	4	60A	563160
56JD-4/80	1.30	4	80A	563180
56JDR-4/25	0.50	4	25A	563325
56JDR-4/40	0.60	4	40A	563340
56JD-3/60	0.90	3	60A	563360
56JD-3/80	1.05	3	80A	563380

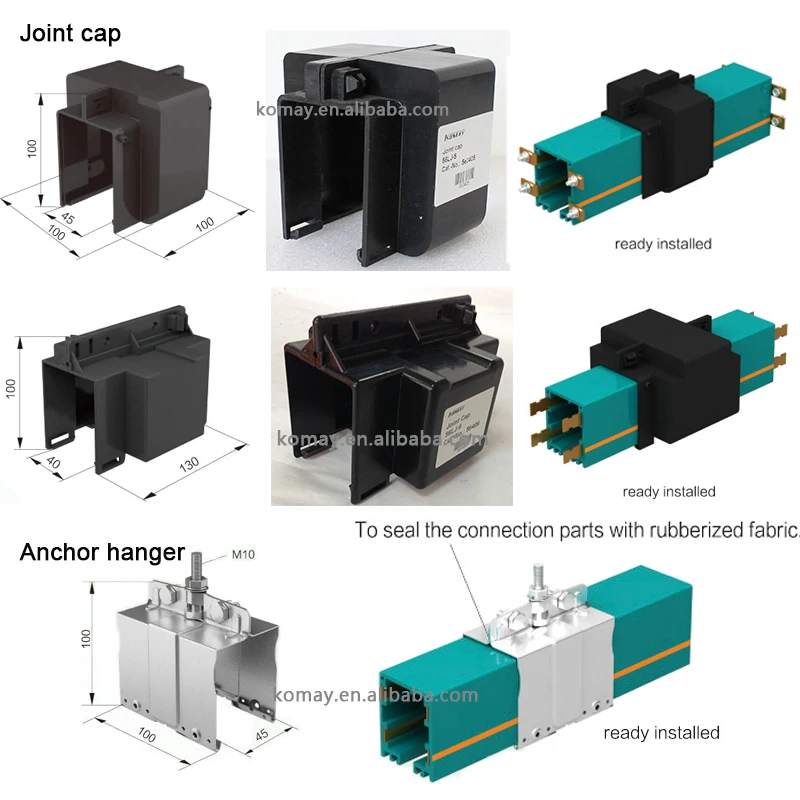

Accessories

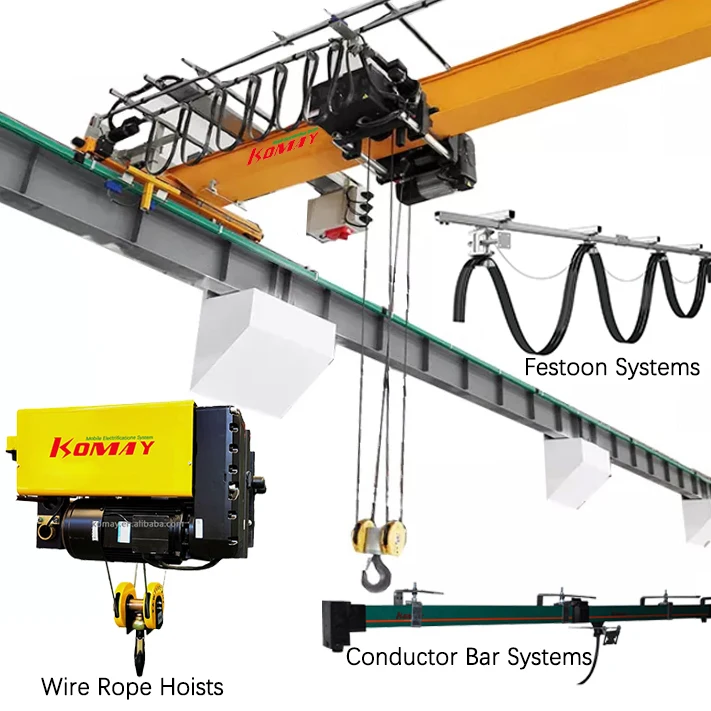

Application

Company Profile

WUXI KOMAY ELECTRIC EQUIPMENT CO. LTD. is a professional high and new tech enterprises in mobile electrification system field. Our major products are Single Pole Insulated Conductor Rails, Enclosed Conductor Rails, Copperhead Conductor Rails, Safety Power Rails, Multipolar Busbar, Busway Systems, Cable Trolleys, Cable Chains, ED Thruster, Electro-Hydraulic Drum Brake and more. The essential features of products are Compact arrangement, corrosion resistance, and simple assembly. The products is suitable especially for overhead and elongated tracks for cranes, monorails, port machines, stacking systems, as well as many other applications for supplying power to moving power loads. Our Products are certified by CE and export to Europe, America, Middle East, Africa, Southeast Asia etc. other country and area. Competitive price and High quality - All mobile electrification systems for you, We are sincerely looking forward to cooperating with you!

Exhibition Show

Packaging

If you are searching for a dependable and effective crane insulation busbar power rail enclosed conductor bar system, look no more compared to KOMAY. KOMAY provides a varies of top-quality items developed towards satisfy the needs of different requests.

Developed towards guarantee the soft and stream is continuous of, KOMAY's crane insulation busbar power educate enclosed conductor bar systems are incredibly resilient and can endure severe environmental problems. Our products are created coming from top quality products which are immune towards place on and tear, along with severe problems and temperature levels.

Truly simple towards set up and preserve, creating all of them an option is perfect companies wanting to enhance effectiveness and efficiency. Our items are developed towards reduce downtime and enhance manufacturing, preserving your procedures operating effectively and efficiently.

You might be certain one's body is risk-free and protect. Our team utilize simply the finest products towards ensure our items are fire-resistant and can endure higher amounts of present without harming or even getting too hot your devices.

Likewise developed towards be flexible and versatile, therefore you can quickly customize your body towards suit your requirements being specific. You accomplish your objectives whether you will require a little or even huge body, KOMAY obtains the ideal method to assist.

Supported through outstanding client sustain and solution. Our team are focused on guaranteeing client is finish and offer a choice of services to assist you obtain the most away from your financial assets.

KOMAY's crane insulation busbar power rail enclosed conductors bar systems are the ideal service for companies wanting to enhances effectiveness and efficiency. Our items are resilient, simple towards sets up and preserve, risk-free and protect, versatile, and supported through outstanding client’s solution and sustain. Select KOMAY for all of your crane insulations busbar power rail enclosed conductors bar body requirements.
