C32 Flat or Round Festoon Cable Systems
C32 Flat or Round Festoon Cable Systems
C32 Flat or Round Festoon Cable Systems
C32 Flat or Round Festoon Cable Systems
C32 Flat or Round Festoon Cable Systems
C32 Flat or Round Festoon Cable Systems
C32 Flat or Round Festoon Cable Systems
C32 Flat or Round Festoon Cable Systems
C32 Flat or Round Festoon Cable Systems
C32 Flat or Round Festoon Cable Systems

C32 Flat or Round Festoon Cable Systems

KOMAY Festoon Cable Systems support conductor cables(flat or round) and hoses (hydraulic and pneumatic applications) for delivering power & control to mobile equipment in a safe, efficient and maintenance free method.
The cable trolleys are well guided inside their C-tracks and protected against humidity, dust and icing.
Travel Speed :＜120m/min
Temperature : -40℃——+125℃
Cable Load :＜120kg

Inquiry
  • Product Details
  • Application
  • Related products
  • Inquiry
Product Details

Products Description

Festoon Cable Systems is very important part for crane components , also named C rail festoon system ,C track festoon system ,which working as festoon cable carriers , moving along the festoon c track . It is designed for carrying flat festoon cable or round festoon cable for crane power supplying in various industrial environment .

Festoon Cable Systems including C rail , festoon cable trolley , C track joint clamp , festoon hangers , C track end stop , End cap etc. Model C32 and C40 festoon systems for C rails are very widely use .

Festoon cable system installed as picture :

Komay C-track Cable Trolley System Cable Festoon System Cable Trolley is a conductive form of power supply for the crane trolley. It consists of a walking wheel, a bracket and a supporting plate. The flexible cable is fixed on the supporting plate. The traction frame and the I-steel cable pulley are synchronized to achieve the purpose of cable power trolley. Cable trolley is also called cable block, cable pulley, cable rail trolley, cable block trolley, I-beam cable block, I-beam trolley, cable conductive trolley.
Application
Name Towing Trolley Middle Trolley Plastic Middle Trolley End Trolley
Type C30SC-60 C30MC-60 C30PMC-70 C30EC-60
Wheels Ball bearing, hardened, galvanized
Temperature: -30°C to +125°C
Traveling speed: 120m/min 		Wheel:nylon
Temperature: -30°C to +80°C
Traveling speed: 120m/min
Material Body: steel, galvanized
Support saddle: steel, galvanized
Bumper: neoprence
Dowel:  steel, galvanized
Hardware: galvanized
Temperature resistance: -30°to +100°

Body: ABS
Support saddle: ABS
Bumper: neoprence
Dowel:  steel, galvanized
Hardware: galvanized
Temperature resistance: -30°to +80°

Carrier body: steel, galvanized
Support saddle: steel, galvanized
Dowel: Brass
Hardware: galvanized
Max. Cable Load 20kg per carrier 20kg per carrier 8kg per carrier 20kg per carrier
Dim. of Cable(mm) Max.60W*32 Max.60W*32 Max.70W*32 Max.60W*32

C30 Towing Trolley

C30 Middle Trolley

C30 Plastic Middle Trolley

Application
Products Description
Komay C-track Cable Trolley System Cable Festoon System Cable Trolley is a conductive form of power supply for the crane trolley. It consists of a walking wheel, a bracket and a supporting plate. The flexible cable is fixed on the supporting plate. The traction frame and the I-steel cable pulley are synchronized to achieve the purpose of cable power trolley. Cable trolley is also called cable block, cable pulley, cable rail trolley, cable block trolley, I-beam cable block, I-beam trolley, cable conductive trolley.
Products Description

Festoon Cable Systems is very important part for crane components , also named C

Products Description

Festoon Cable Systems is very important part for crane components , also named C

Products Description

Festoon Cable Systems is very important part for crane components , also named C

Products Description
Komay C-track Cable Trolley System Cable Festoon System Cable Trolley is a conductive form of power supply for the crane trolley. It consists of a walking wheel, a bracket and a supporting plate. The flexible cable is fixed on the supporting plate. The traction frame and the I-steel cable pulley are synchronized to achieve the purpose of cable power trolley. Cable trolley is also called cable block, cable pulley, cable rail trolley, cable block trolley, I-beam cable block, I-beam trolley, cable conductive trolley.
Name Towing Trolley Middle Trolley Plastic Middle Trolley End Trolley
Type C30SC-60 C30MC-60 C30PMC-70 C30EC-60
Wheels Ball bearing, hardened, galvanized
Temperature: -30°C to +125°C
Traveling speed: 120m/min 		Wheel:nylon
Temperature: -30°C to +80°C
Traveling speed: 120m/min
Material Body: steel, galvanized
Support saddle: steel, galvanized
Bumper: neoprence
Dowel:  steel, galvanized
Hardware: galvanized
Temperature resistance: -30°to +100°

Body: ABS
Support saddle: ABS
Bumper: neoprence
Dowel:  steel, galvanized
Hardware: galvanized
Temperature resistance: -30°to +80°

Carrier body: steel, galvanized
Support saddle: steel, galvanized
Dowel: Brass
Hardware: galvanized
Max. Cable Load 20kg per carrier 20kg per carrier 8kg per carrier 20kg per carrier
Dim. of Cable(mm) Max.60W*32 Max.60W*32 Max.70W*32 Max.60W*32
Products Description

Festoon Cable Systems is very important part for crane components , also named C rail festoon system ,C track festoon system ,which working as festoon cable carriers , moving along the festoon c track . It is designed for carrying flat festoon cable or round festoon cable for crane power supplying in various industrial environment .

Festoon Cable Systems including C rail , festoon cable trolley , C track joint clamp , festoon hangers , C track end stop , End cap etc. Model C32 and C40 festoon systems for C rails are very widely use .

Festoon cable system installed as picture :


Name
Towing Trolley
Middle Trolley

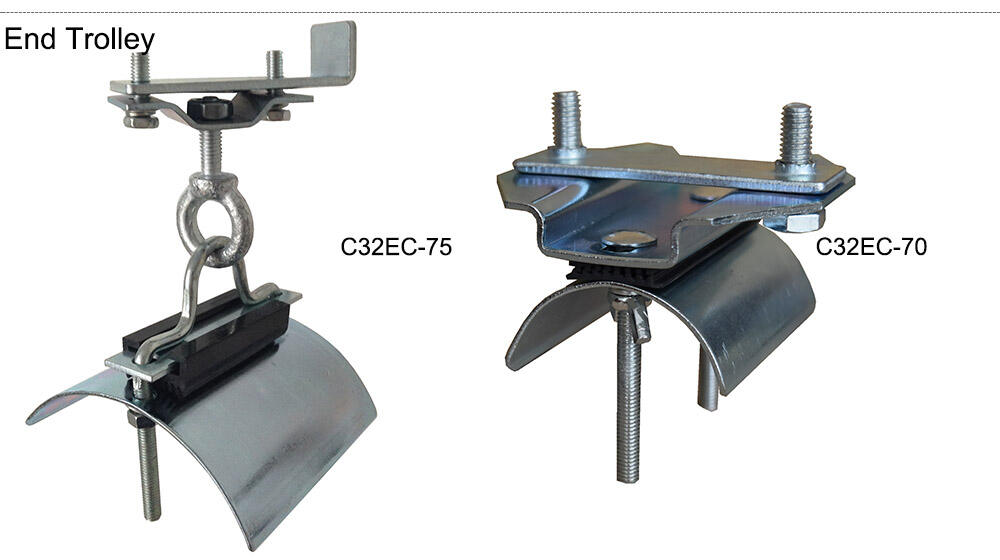

End Trolley
Type
C32SC-75
C32SC-70
C32MC-75
C32MC-70
C32EC-75
C32EC-70
Wheels
Ball bearing, hardened, galvanized
Temperature: -30°C to +125°C
Traveling speed: 160m/min

Material
Body: steel, galvanized
Support saddle: steel, galvanized
Bumper: neoprence
Dowel: Brass
Hardware: galvanized
Temperature resistance: -30°to +100°(80°,saddle ABS)
Carrier body: steel, galvanized
Support saddle: steel, galvanized
Dowel: Brass
Hardware: galvanized
Temperature resistance: -30°to +100°(80°,saddle ABS)
Max. cable load
25kg per carrier
22kg per carrier
30kg per carrier
22kg per carrier
25kg per carrier
22kg per carrier
Dim. of cable(mm)
75W*32
70W*32
75W*32
70W*32
75W*32
70W*32
Weight(kg)
0.59
0.55
0.41
0.32
0.37
0.31
Cat.-NO.
711101
711105
711201
711205
711301
711305
Products Description

Festoon Cable Systems is very important part for crane components , also named C rail festoon system ,C track festoon system ,which working as festoon cable carriers , moving along the festoon c track . It is designed for carrying flat festoon cable or round festoon cable for crane power supplying in various industrial environment .

Festoon Cable Systems including C rail , festoon cable trolley , C track joint clamp , festoon hangers , C track end stop , End cap etc. Model C32 and C40 festoon systems for C rails are very widely use .

Festoon cable system installed as picture :


Name
Towing Trolley
Middle Trolley
End Trolley
Type
C32SC-75
C32SC-70
C32MC-75
C32MC-70
C32EC-75
C32EC-70
Wheels
Ball bearing, hardened, galvanized
Temperature: -30°C to +125°C
Traveling speed: 160m/min

Material
Body: steel, galvanized
Support saddle: steel, galvanized
Bumper: neoprence
Dowel: Brass
Hardware: galvanized
Temperature resistance: -30°to +100°(80°,saddle ABS)
Carrier body: steel, galvanized
Support saddle: steel, galvanized
Dowel: Brass
Hardware: galvanized
Temperature resistance: -30°to +100°(80°,saddle ABS)
Max. cable load
25kg per carrier
22kg per carrier
30kg per carrier
22kg per carrier
25kg per carrier
22kg per carrier
Dim. of cable(mm)
75W*32
70W*32
75W*32
70W*32
75W*32
70W*32
Weight(kg)
0.59
0.55
0.41
0.32
0.37
0.31
Cat.-NO.
711101
711105
711201
711205
711301
711305
Products Description

Festoon Cable Systems is very important part for crane components , also named C rail festoon system ,C track festoon system ,which working as festoon cable carriers , moving along the festoon c track . It is designed for carrying flat festoon cable or round festoon cable for crane power supplying in various industrial environment .

Festoon Cable Systems including C rail , festoon cable trolley , C track joint clamp , festoon hangers , C track end stop , End cap etc. Model C32 and C40 festoon systems for C rails are very widely use .

Festoon cable system installed as picture :


Name
Towing Trolley
Middle Trolley
End Trolley
Type
C32SC-75
C32SC-70
C32MC-75
C32MC-70
C32EC-75
C32EC-70
Wheels
Ball bearing, hardened, galvanized
Temperature: -30°C to +125°C
Traveling speed: 160m/min

Material
Body: steel, galvanized
Support saddle: steel, galvanized
Bumper: neoprence
Dowel: Brass
Hardware: galvanized
Temperature resistance: -30°to +100°(80°,saddle ABS)
Carrier body: steel, galvanized
Support saddle: steel, galvanized
Dowel: Brass
Hardware: galvanized
Temperature resistance: -30°to +100°(80°,saddle ABS)
Max. cable load
25kg per carrier
22kg per carrier
30kg per carrier
22kg per carrier
25kg per carrier
22kg per carrier
Dim. of cable(mm)
75W*32
70W*32
75W*32
70W*32
75W*32
70W*32
Weight(kg)
0.59
0.55
0.41
0.32
0.37
0.31
Cat.-NO.
711101
711105
711201
711205
711301
711305
Products Description

Festoon Cable Systems is very important part for crane components , also named C rail festoon system ,C track festoon system ,which working as festoon cable carriers , moving along the festoon c track . It is designed for carrying flat festoon cable or round festoon cable for crane power supplying in various industrial environment .

Festoon Cable Systems including C rail , festoon cable trolley , C track joint cl

Products Description

Festoon Cable Systems is very important part for crane components , also named C rail festoon system ,C track festoon system ,which working as festoon cable carriers , moving along the festoon c track . It is designed for carrying flat festoon cable or round festoon cable for crane power supplying in various industrial environment .

Festoon Cable Systems including C rail , festoon cable trolley , C track joint cl

Products Description

Festoon Cable Systems is very important part for crane components , also named C rail festoon system ,C track festoon system ,which working as festoon cable carriers , moving along the festoon c track . It is designed for carrying flat festoon cable or round festoon cable for crane power supplying in various industrial environment .

Festoon Cable Systems including C rail , festoon cable trolley , C track joint clamp , festoon hangers , C track end stop , End cap etc. Model C32 and C40 festoon systems for C rails are very widely use .

Festoon cable system installed as picture :

Products Description

Festoon Cable Systems is very important part for crane components , also named C rail festoon system ,C track festoon system ,which working as festoon cable carriers , moving along the festoon c track . It is designed for carrying flat festoon cable or round festoon cable for crane power supplying in various industrial environment .

Festoon Cable Systems including C rail , festoon cable trolley , C track joint clamp , festoon hangers , C track end stop , End cap etc. Model C32 and C40 festoon systems for C rails are very widely use .

Festoon cable system installed as picture :

Products Description

Festoon Cable Systems is very important part for crane components , also named C rail festoon system ,C track festoon system ,which working as festoon cable carriers , moving along the festoon c track . It is designed for carrying flat festoon cable or round festoon cable for crane power supplying in various industrial environment .

Festoon Cable Systems including C rail , festoon cable trolley , C track joint clamp , festoon hangers , C track end stop , End cap etc. Model C32 and C40 festoon systems for C rails are very widely use .

Festoon cable system installed as picture :

Products Description

Festoon Cable Systems is very important part for crane components , also named C rail festoon system ,C track festoon system ,which working as festoon cable carriers , moving along the festoon c track . It is designed for carrying flat festoon cable or round festoon cable for crane power supplying in various industrial environment .

Festoon Cable Systems including C rail , festoon cable trolley , C track joint clamp , festoon hangers , C track end stop , End cap etc. Model C32 and C40 festoon systems for C rails are very widely use .

Festoon cable system installed as picture :

Products Description

Festoon Cable Systems is very important part for crane components , also named C rail festoon system ,C track festoon system ,which working as festoon cable carriers , moving along the festoon c track . It is designed for carrying flat festoon cable or round festoon cable for crane power supplying in various industrial environment .

Festoon Cable Systems including C rail , festoon cable trolley , C track joint clamp , festoon hangers , C track end stop , End cap etc. Model C32 and C40 festoon systems for C rails are very widely use .

Festoon cable system installed as picture :

Products Description

Festoon Cable Systems is very important part for crane components , also named C rail festoon system ,C track festoon system ,which working as festoon cable carriers , moving along the festoon c track . It is designed for carrying flat festoon cable or round festoon cable for crane power supplying in various industrial environment .

Festoon Cable Systems including C rail , festoon cable trolley , C track joint clamp , festoon hangers , C track end stop , End cap etc. Model C32 and C40 festoon systems for C rails are very widely use .

Festoon cable system installed as picture :

Products Description

Festoon Cable Systems is very important part for crane components , also named C rail festoon system ,C track festoon system ,which working as festoon cable carriers , moving along the festoon c track . It is designed for carrying flat festoon cable or round festoon cable for crane power supplying in various industrial environment .

Festoon Cable Systems including C rail , festoon cable trolley , C track joint clamp , festoon hangers , C track end stop , End cap etc. Model C32 and C40 festoon systems for C rails are very widely use .

Festoon cable system installed as picture :

Products Description

Festoon Cable Systems is very important part for crane components , also named C rail festoon system ,C track festoon system ,which working as festoon cable carriers , moving along the festoon c track . It is designed for carrying flat festoon cable or round festoon cable for crane power supplying in various industrial environment .

Festoon Cable Systems including C rail , festoon cable trolley , C track joint clamp , festoon hangers , C track end stop , End cap etc. Model C32 and C40 festoon systems for C rails are very widely use .

Festoon cable system installed as picture :

Products Description

Festoon Cable Systems is very important part for crane components , also named C rail festoon system ,C track festoon system ,which working as festoon cable carriers , moving along the festoon c track . It is designed for carrying flat fest

Products Description

Festoon Cable Systems is very important part for crane components , also named C rail festoon system ,C track festoon system ,which working as festoon cable carriers , moving along the festoon c track . It is designed for carrying flat festoon cable or round festoon cable for crane power supplying in various industrial environment .

Festoon Cable Systems including C rail , festoon cable trolley , C track joint clamp , festoon hangers , C track end stop , End cap etc. Model C32 and C40 festoon systems for C rails are very widely use .

Festoon cable system installed as picture :

Products Description

Festoon Cable Systems is very important part for crane components , also named C rail festoon system ,C track festoon system ,which working as festoon cable carriers , moving along the festoon c track . It is designed for carrying flat festoon cable or round festoon cable for crane power supplying in various industrial environment .

Festoon Cable Systems including C rail , festoon cable trolley , C track joint clamp , festoon hangers , C track end stop , End cap etc. Model C32 and C40 festoon systems for C rails are very widely use .

Festoon cable system installed as picture :

Products Description

Festoon Cable Systems is very important part for crane components , also named C rail festoon system ,C track festoon system ,which working as festoon cable carriers , moving along the festoon c track . It is designed for carrying flat festoon cable or round festoon cable for crane power supplying in various industrial environment .

Festoon Cable Systems including C rail , festoon cable trolley , C track joint clamp , festoon hangers , C track end stop , End cap etc. Model C32 and C40 festoon systems for C rails are very widely use .

Festoon cable system installed as picture :

Products Description

Festoon Cable Systems is very important part for crane components , also named C rail festoon system ,C track festoon system ,which working as festoon cable carriers , moving along the festoon c track . It is designed for carrying flat festoon cable or round festoon cable for crane power supplying in various industrial environment .

Products Description

Festoon Cable Systems is very important part for crane components , also named C rail festoon system ,C track festoon system ,which working as festoon cable carriers , moving along the festoon c track.It is designed for carrying flat festoon cable or round festoon cable for crane power supplying in various industrial environment .

Festoon Cable Systems including C rail , festoon cable trolley , C track joint clamp , festoon hangers , C track end stop , End cap etc. Model C32 and C40 festoon systems for C rails are very widely use .

​
Products Description
Komay C-track Cable Trolley System Cable Festoon System Cable Trolley is a conductive form of power supply for the crane trolley. It consists of a walking wheel, a bracket and a supporting plate. The flexible cable is fixed on the supporting plate. The traction frame and the I-steel cable pulley are synchronized to achieve the purpose of cable power trolley. Cable trolley is also called cable block, cable pulley, cable rail trolley, cable block trolley, I-beam cable block, I-beam trolley, cable conductive trolley.
​#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#000;font-family:Roboto;font-size:24px;color:#000;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-4{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-5{font-size:16px}#detail_decorate_root .magic-6{width:750px}#detail_decorate_root .magic-7{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-8{margin-top:-186px;margin-left:7px;width:750px;height:750px}#detail_decorate_root .magic-9{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-10{margin-top:0;margin-left:0;width:373px;height:373px}#detail_decorate_root .magic-11{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-12{overflow:hidden;width:750px;height:900px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-13{margin-top:0;margin-left:0;width:750px;height:900px}#detail_decorate_root .magic-14{width:750px;border-collapse:collapse}#detail_decorate_root .magic-15{min-height:28px;padding:5px 10px;width:69px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:28px;padding:5px 10px;width:191px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-17{display:none}#detail_decorate_root .magic-18{min-height:28px;padding:5px 10px;width:86px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:28px;padding:5px 10px;width:193px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:28px;padding:5px 10px;width:78px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:28px;padding:5px 10px;width:199px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:28px;padding:5px 10px;width:84px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-23{min-height:28px;padding:5px 10px;width:85px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-24{min-height:28px;padding:5px 10px;width:95px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-25{min-height:28px;padding:5px 10px;width:96px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-26{min-height:28px;padding:5px 10px;width:83px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-27{min-height:28px;padding:5px 10px;width:406px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-28{overflow:hidden;width:750px;height:720px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:-21px;margin-left:-1px;width:750px;height:750px}#detail_decorate_root .magic-30{overflow:hidden;width:750px;height:548px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:750px;height:548px}#detail_decorate_root .magic-32{overflow:hidden;width:750px;height:708.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:0;width:750px;height:708.75px}#detail_decorate_root .magic-34{overflow:hidden;width:750px;height:967.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:750px;height:967.5px}#detail_decorate_root .magic-36{overflow:hidden;width:373px;height:270px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:-28px;margin-left:-6px;width:520px;height:348px}#detail_decorate_root .magic-38{overflow:hidden;width:373px;height:270px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-39{margin-top:-5px;margin-left:-36px;width:475px;height:283px}#detail_decorate_root .magic-40{margin-top:-1px;margin-left:-2px;width:391px;height:391px}#detail_decorate_root .magic-41{margin-top:1px;margin-left:-16px;width:403.7383177570094px;height:270px}#detail_decorate_root .magic-42{overflow:hidden;width:750px;height:398px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-43{margin-top:-94px;margin-left:-3px;width:910px;height:603px}#detail_decorate_root .magic-44{overflow:hidden;width:247.33333333333334px;height:200.26990553306345px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-45{margin-top:-3.004048582995952px;margin-left:-21.028340080971663px;width:312px;height:207px}#detail_decorate_root .magic-46{overflow:hidden;width:247.33333333333334px;height:200.26990553306345px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-47{margin-top:0;margin-left:0;width:247px;height:220px}#detail_decorate_root .magic-48{margin-top:0;margin-left:0;width:267px;height:200px}#detail_decorate_root .magic-49{margin-top:-7.009446693657221px;margin-left:-76.10256410256412px;width:360px;height:214px}#detail_decorate_root .magic-50{margin-top:-9.012145748987855px;margin-left:-66.08906882591094px;width:373px;height:210px}#detail_decorate_root .magic-51{margin-top:0;margin-left:-51.06882591093118px;width:301px;height:200px}#detail_decorate_root .magic-52{overflow:hidden;width:373px;height:209.81250000000003px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-53{margin-top:0;margin-left:0;width:373px;height:209.81250000000003px}#detail_decorate_root .magic-54{overflow:hidden;width:373px;height:209px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-55{margin-top:-10px;margin-left:0;width:373.00000000000006px;height:223.8px}#detail_decorate_root .magic-56{overflow:hidden;width:373px;height:300px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-57{margin-top:-16px;margin-left:-2px;width:373.00000000000006px;height:385.18130630630634px}#detail_decorate_root .magic-58{overflow:hidden;width:373px;height:300px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-59{margin-top:-10px;margin-left:-25px;width:447px;height:346px}

Name
Towing Trolley
Middle Trolley
End Trolley
Type
C32SC-75
C32SC-70
C32MC-75
C32MC-70
C32EC-75
C32EC-70
Wheels
Ball bearing, hardened, galvanized
Temperature: -30°C to +125°C
Traveling speed: 160m/min
Material
Body: steel, galvanized
Support saddle: steel, galvanized
Bumper: neoprence
Dowel: Brass
Hardware: galvanized
Temperature resistance: -30°to +100°(80°,saddle ABS)
Carrier body: steel, galvanized
Support saddle: steel, galvanized
Dowel: Brass
Hardware: galvanized
Temperature resistance: -30°to +100°(80°,saddle ABS)
Max. cable load
25kg per carrier
22kg per carrier
30kg per carrier
22kg per carrier
25kg per carrier
22kg per carrier
Dim. of cable(mm)
75W*32
70W*32
75W*32
70W*32
75W*32
70W*32
Weight(kg)
0.59
0.55
0.41
0.32
0.37
0.31

Application

C-Track, C-Rail cable festoon systems are versatile and used in a variety of different applications.For power delivery and cable management in

industrial applications such as overhead (EOT) cranes, gantry cranes,port container cranes, process cranes, hoist units, transport systems, water

treatment systems, bulk material conveyors, plating lines, and many other types of moving equipment.

Related products

Double Girder European Electric Wire Rope Hoist

C32 C-Track End Trolley Festoon Flat Cable System

Copperhead Conductor Bar Systems

Wire Rope Plastic Festoon Cable Trolley

JR2 Flexible rectangular metal hose full closed steel cable carrier

Seamless Conductor Rail System

AGV Automatic Charging Brush Plate Brush Block

Warehouse AGV Automatic Handling Equipment 300kg Load

Inquiry

GET IN TOUCH

Studio practice focused on modern esign, interiors and landscapes. From our eption. Studio practice focused

Our Products

Contact Us

No.88 zhakou road,heqiaotown,yixing,wuxi city,jiangsu province,china

+86-13921288839

[email protected]

Newsletter

Lorem ipsum dolor sit amet, consetur acing elit, sed do eiusmod ligal

Copyright © hoiet all rights reserved.
