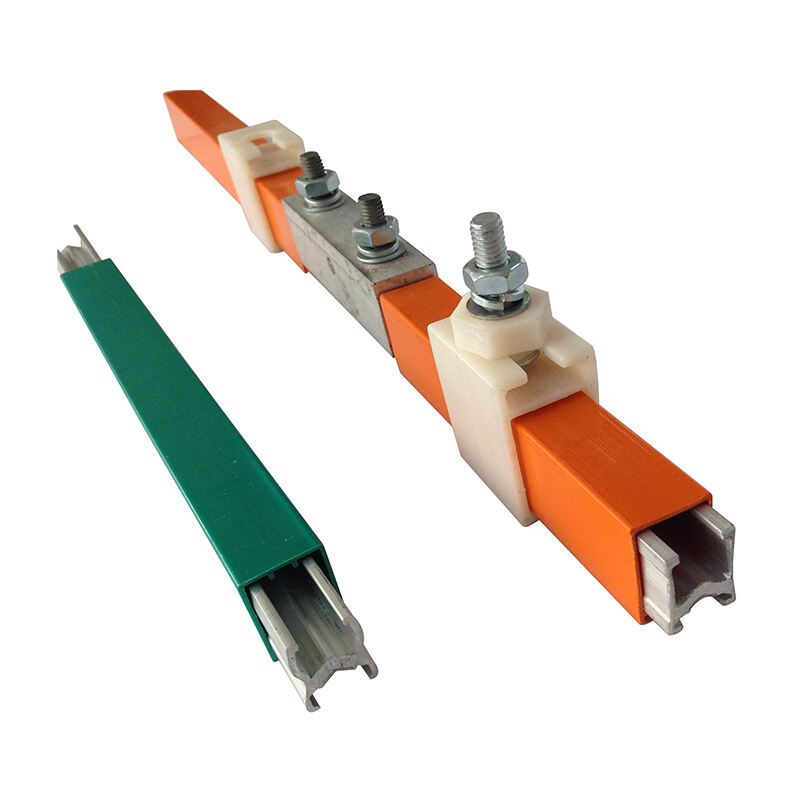

Single Insulated Conductor Rail System

Quick Detail:

Insulated Conductor Rail/Insulated Conductor Bar

Description:

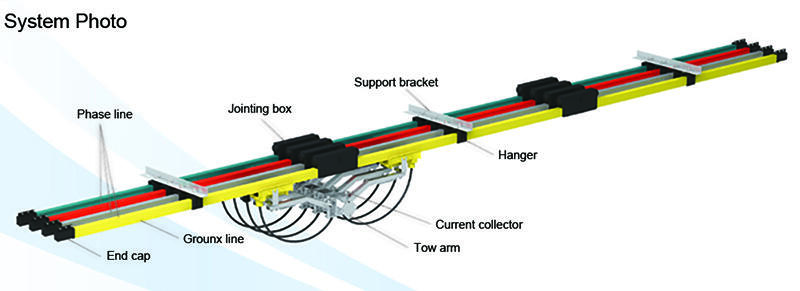

1.JDC-W single insulated conductor rail system is a modern mobile power supply system.

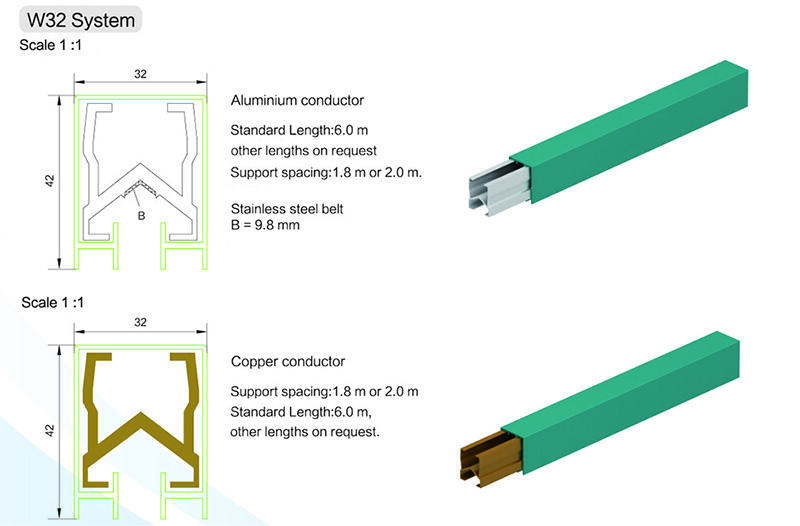

2.The conductor rail material is copper(200A-5000A), aluminium(150a-3000A).

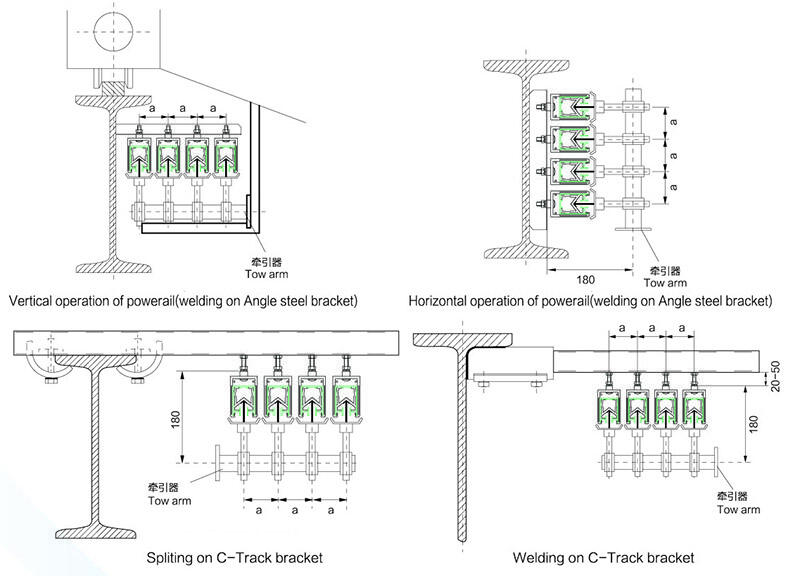

3.The aluminium conductor rail is provided with a proven and patented stainless steel contact surface. Any numbers of poles can be installed vertically or horizontally, on straight or curved systems.

4.The conductor rail system can be installed indoor or outdoor.

6.Type-R:Curves for R≥1200mm

Applications:

Single Insulated Conductor Rail is a type of equipment used for electrical transportation, mainly used in the power supply lines of mobile equipment such as mines, metallurgy, chemicals, machinery, docks, freight yards, as well as in the fields of trains, trams, and electric motors. The conductor is usually made of aluminum alloy profiles, and the outer sheath is made of special polyvinyl chloride material, which plays a role in preventing rain, dust, snow, and electric shock.

Competitive Advantage:

1. Simple structure

2. Convenient construction

3. High transmission efficiency
